Sylvania SRT2213B, SRT2219B Owner's Manual

Get it fixed, at your home or ours!
For repair- in your home -of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
Call anytime, day or night (U.S.A. and Canada)
www.sears.com
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
Call anytime, day or night (U.S.A. only)
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655
(U.S.A.)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
(1-888-784-6427)
TM SM
R Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.
Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears, Roebuck and Co.
R
MC MD
Marque de commerce / Marque déposée de Sears, Roebuck and Co.
LIMITED 90 DAY WARRANTY
If this (product) experiences any failure due to a defect in material or workmanship within 90 days from the date
of purchase, return it to your nearest Sears store, and it will be replaced free of charge.
This warranty applies only if this (product) is used for private household purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
For the location of a Sears Service Center in your area : 1-800-488-1222
0EMN02086
ANTENNA/CABLE CONNECTIONS
Before plugging the UHF/VHF Rod
Antenna (Supplied with 13" model only)
into the ANT(enna). IN jack, check that the
pin is not bent. If it is bent, straighten the
pin as illustrated, then plug the pin into the
ANT(enna). IN jack.
Bent pin
Cable Plug
(Needs to be straightened) (Straight pin)
VHF/UHF
Combination Antenna
(Not supplied)

CLOSED CAPTION

This TV can receive C1 and C2 of Caption and Text.
Caption Mode
(1) Characters can be displayed on the TV screen when the received broadcast signal contains
Caption Signals.
(2) Paint-on mode: Displays input characters on the screen immediately.
Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)
Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will
not be displayed.
Text Mode
(1) Displays the text on the screen by scrolling (max. 7 lines)
(2) If the received broadcast signal does not contain caption or text signals, no change will occur.
Your Home
R
(1-800-469-4663)
www.sears.ca
Our Home
1-800-488-1222
www.sears.com
1-800-361-6665
(Canada)
Au Canada pour service en français:
1-800-LE-FOYER MC
SM
(1-800-533-6937)
www.sears.ca
© Sears, Roebuck and Co.
L6307UH / L6407UH * * * *
UHF/VHF Rod
Antenna
(Supplied with
13" model only)
VHF
Antenna
(Not supplied)
UHF
Antenna
(Not supplied)
OR
VHF/UHF Combiner
(Not supplied)
Owner's
Manual
FEATURES
Tinted, Bright Black Matrix Picture Tube
●
181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.
●
PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun-
●
ing system provides free and easy channel selection, and lets you tune directly to any channel
using the channel number buttons (0~9 and +100-key) on the remote control.
On-Screen Function Display.
●
Full-Function Remote Control
●
Sleep Timer
●
Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,
●
prerecorded tapes, etc. with either a dialogue caption or text display added to the program.
Auto Shut Off Function- If there is no air signal input from the antenna terminal and no
●
user operation for 15 minutes, the TV will turn itself off automatically.
V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.
●
PRECAUTIONS
Place your TV in a room with adequate ventilation.
●
Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.
●
Do not place your TV on soft surfaces, such as rugs or blankets.
●
Leave enough room for air to circulate around the bottom, top and back of the set.
●
NOTE:You MUST PRESET channels BEFORE using CHANNEL ▲ or ▼ button.
The serial number of this product may be found on the back of the TV. No others have the same
serial number as yours. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft.
Date of Purchase
Dealer Purchase from
Dealer Address
This Owner's Manual is made of recycled paper.
IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER'S MANUAL, PLEASE CALL TOLL FREE
Printed in Malaysia
1-800-968-3429.
*
Some cable TV systems use scram-
bled signals and require a special con-
verter to receive these channels.
Consult your local cable company.
CATV Box
or Satellite Box
(Not supplied)
OUT IN
ANT.IN
75-ohm
Coaxial Cable
ANT. IN
OR
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the point
of cable entry as practical.
Notes:
(1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a
VCR's video output channel (CH3 or CH4), your TV may not display the correct caption or
text.
(2) Captions and texts may not match the TV voice exactly.
(3) Interference may cause the closed caption system not to function properly.
(4) The caption or text characters will not be displayed while the menu display or functions dis-
play is shown.
(5) If you see this screen :
If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].

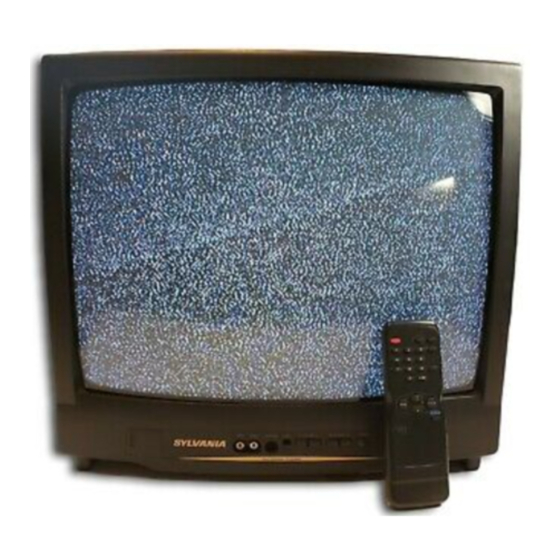

COLOR TELEVISION
SRT2213B (13 inch)
SRT2219B (19 inch)
Dealer Phone No.
Model No.
Serial No.
FCC WARNING- This equipment may generate
or use radio frequency energy. Changes or modi-
fications to this equipment may cause harmful
interference unless the modifications are express-
ly approved in the instruction manual. The user
could lose the authority to operate this equip-
*
ment if an unauthorized change or modification
is made.
CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
From Cable System
or Satellite Antenna
75-ohm
ATTENTION:
Coaxial Cable
POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRE-
From Cable System
SPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
