Swann PPW-250 Easy Setup Manual

A

Easy Set up Components

Camera and Stand
Power only Cable for
Extension Cable
Wireless Connection
Receiver Power Camera Power
BNC to RCA
Supply
Supply Adapter
C

Connecting the receiver to your TV

Back of
Receiver
Connect the video
cable to the back
of the receiver
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
B
Receiver
Power & BNC
Cable for Wired
Connection
Video Cable
5
Back of TV
4 5
D
1 3
1.
Power on the receiver,
VCR and TV
Video Component
Output
Inputs Inputs
Connect one end of the
cable to your TV Input
*Some VCR's and TV's will list this as INPUT, A/V, SOURCE, L1, Channel 0 - Consult your manufacturer's manual for more information
Wireless / Wired Security Camera
PPW-250 Easy Setup Guide

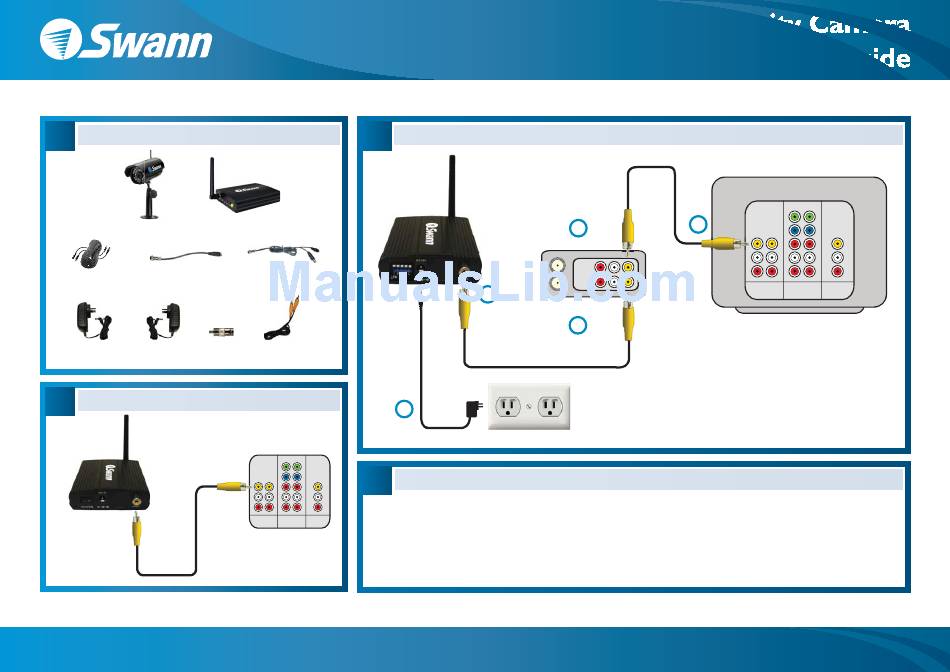

Connecting the receiver to record on a VCR

2
Input
Output
1
Back of VCR
3

Viewing the camera and recording to VCR

2. 3.
Using your TV's remote
control tune your TV to
the correct INPUT*. In our
example above the TV
should be set to INPUT 1
Back of TV
4 5
4
1 3
Video Component
Output
Inputs Inputs
1. Using supplied video cable, connect one end to receiver
2. Connect other end of video cable to INPUT on VCR
3. Using another video cable (not supplied) connect to VCR OUTPUT
4. Connect other end of video cable to INPUT on TV
5. Connect power cable to receiver
4.
Using your VCR's remote You should now see
control tune your VCR to your cameras on the
the LINE 1 INPUT* TV screen. Follow
your manufacturer's
instructions to
record to your VCR
