1
2
A
Easy Set Up Components

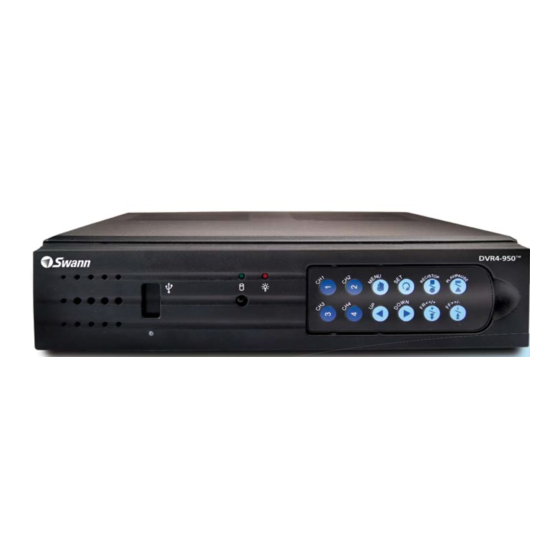

DVR4-950 Unit
RCA Cable
Remote
Power Adapter
Control
Cable
DVR Power
Cameras and Accessories
Adapter
C
Connecting the DVR to LCD
1
Connect the monitor input cables to
AV1 or AV2 on the side of the monitor
2
Connect the monitor input
cables to the RCA cable
3
Connect the other end of the
RCA cable to the DVR's video
port marked video output
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
B
LCD
Monitor Input
Cables x 2
LCD Power
Supply
2
Connect the RCA
to BNC adapters
to the other end
of the extension
cables
3
Connect the RCA
adapters into the
camera inputs
on the back of
the DVR
DVR4-950 - Easy Setup Guide
1
Connect the camera
cables to the extension
cables
4
Connect all power ends
of extension cables to
the power splitters
5
Connect power
splitter to camera
power adapters
6
Plug in camera power
adapters and DVR
adapter to outlets
www.swannsecurity.com
SR344-DPS-50010-290509
