Page 1: Instruction Manual

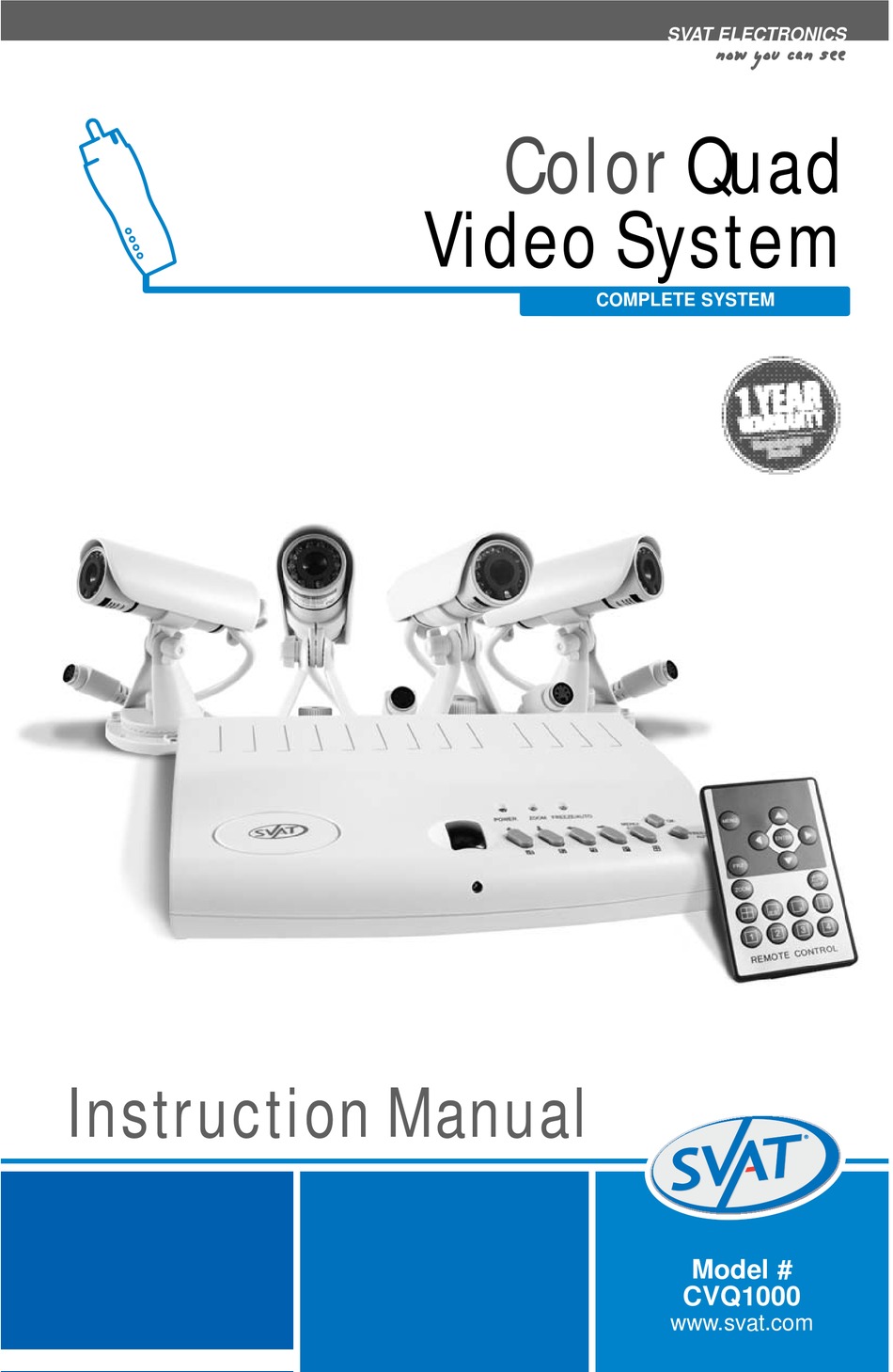

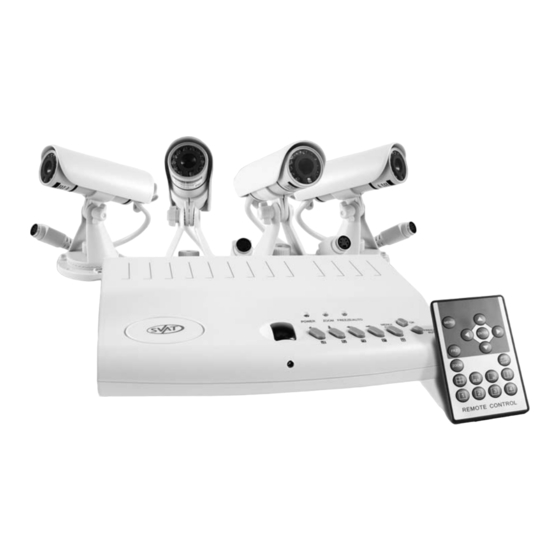

SVAT ELECTRONICS now you can see Color Quad Video System COMPLETE SYSTEM Instruction Manual Model # CVQ1000 www.svat.com... - Page 2 SVAT ELECTRONICS now you can see CVQ1000 www.svat.com...
-
Page 3: Product Warranty & Registra Tion
We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... -
Page 4: Table Of Contents
4 Color Cameras 4PIN DIN to RCA 4 60' Extension (male) Wire Wires T IS COMP T IS COMP The CVQ1000 is compatible with TVs, VCRs, DVRs, and computers. CVQ1000 Remote Control 1 Power Adapter TIBLE TIBLE SVAT ELECTRONICS now you can see... -
Page 5: Safety Precautions
Camera Title, Real Time and Date, Alarm/Loss/Motion Message G. Provide Various Event Input Video Loss Detection, Motion Detection, 60 Event Report, Built-in Buzzer H. Power Jack Connection DC 12V/1A, 2.1mm Jack, Center is positive. CVQ1000 SVAT ELECTRONICS now you can see TEMENTS TEMENTS... -
Page 6: Parts Of The System
SVAT ELECTRONICS now you can see ARTS OF THE SYSTEM ARTS OF THE SYSTEM PARTS OF THE CAMERA A. Mounting Bracket B. IR LED C. Camera Din Connector D. Camera Lens PARTS OF THE SWITCHER 1. Power LED. 2. Zoom LED. -
Page 7: Installation
3. Connect the DIN jack to the camera DIN plug. 4. After connecting all the cameras; power on the system, the power indication LED will light up and indicate camera number on channel display LED. CVQ1000 SVAT ELECTRONICS now you can see... -
Page 8: Functions
10. Camera 2 Button: Press to view full screen of camera 2 11. Camera 3 Button: Press to view full screen of camera 3 12. Camera 4 Button: Press to view full screen of camera 4 CVQ1000 SVAT ELECTRONICS now you can see... -
Page 9: Menu Setup
- To enable or disable auto sequence function. Each channel can be set to ON or OFF. The switching time can be set from 1sec to 99sec.. - To exit, press MENU button again. CVQ1000 to move the SVAT ELECTRONICS now you can see... - Page 10 - Alarm / Alarm Polarity: To enable the Power-On alarm, all 4 alarm checks should be ticked together with Alarm Polarity set to "High". CVQ1000 to switch SVAT ELECTRONICS now you can see...
-
Page 11: Specifications
SVAT ELECTRONICS now you can see SPECIFICA TIONS SPECIFICA TIONS INDOOR SWITCHER Video Format...NTSC / PAL Video Loss...Auto Detection Video Inputs ...4CH Pin Din Video Display Output...1CH Pin Din Live Viewing ...Quad, PIP, Single Screen Live Resolution ...860 x 525 Live Frame Rate ...N/A... - Page 12 SVAT ELECTRONICS now you can see Number of IR LEDs and Range ...11, up to 10ft IR LED Control ...Automatic, CDS Sensor Min. Illumination ...0 lux IR Wavelength ...850nm Video Output ...1CH RCA Composite TV System...NTSC Microphone ...No Motion Detection ...No Viewing Angle ...53 Degrees...
- Page 13 SVAT ELECTRONICS now you can see T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 14 SVAT ELECTRONICS now you can see T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line and mail in.
- Page 15 SVAT ELECTRONICS now you can see CVQ1000 www.svat.com...
- Page 16 SVAT ELECTRONICS now you can see w w w . s v a t . c o m w w w . s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c ts f o r a n y i l l e g a l a c t i v i t i e s .
