Summary of Contents for SVAT CVP800

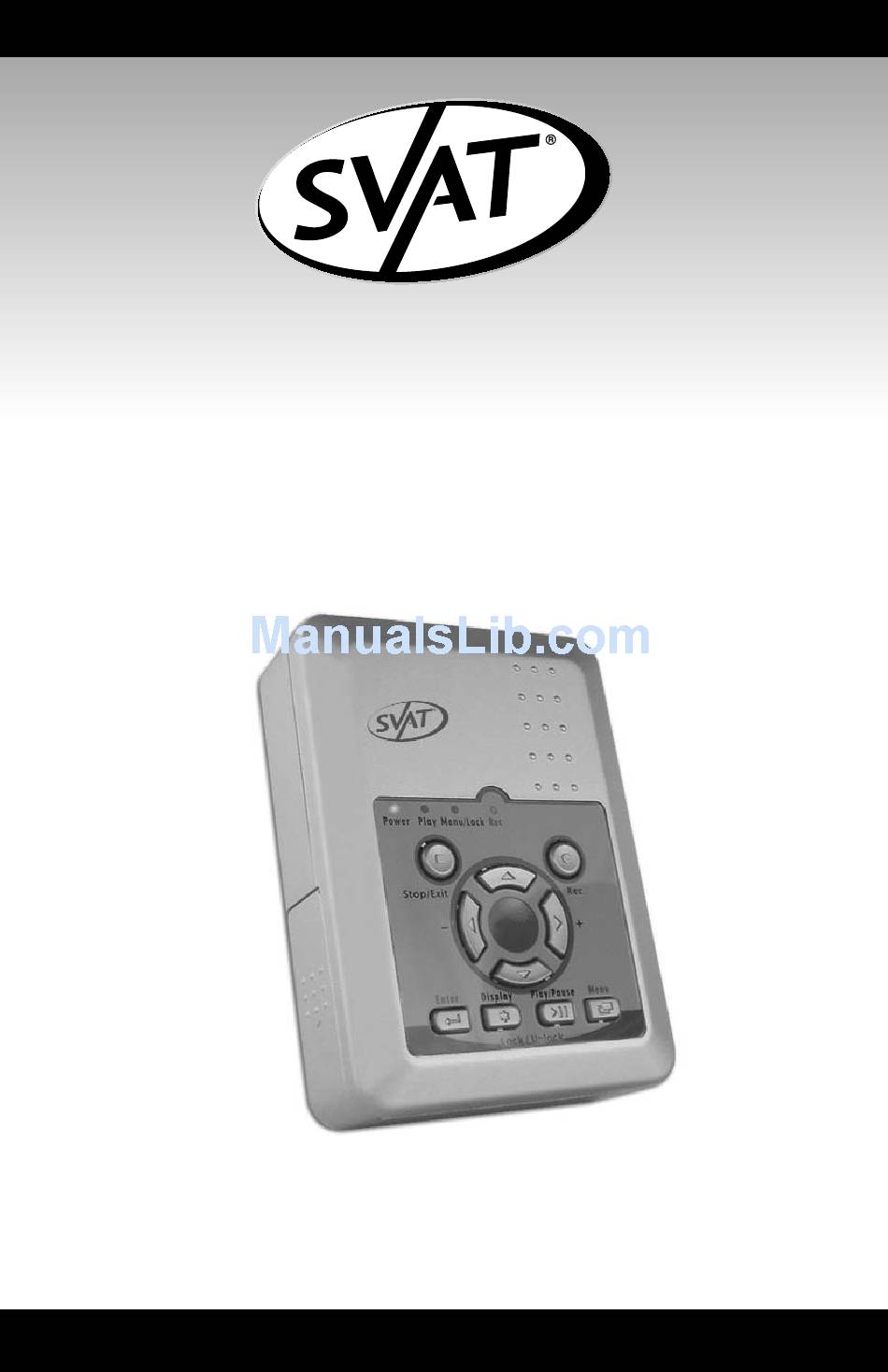

- Page 1 CVP800 MINI PORTABLE DIGITAL VIDEO RECORDER Mini Magnétoscope Portatif De Digital User's Manual Manuel de l'utilisateur www.svat.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS •Table of Contents ......•Safety Precautions ..... . . •Features &... -
Page 3: Safety Precautions
• Do not paint over the DVR unit. IMPORTANT! ACCESSORIES- Do not place product on an unstable cart, stand or table. The CVP800 may fall causing serious injury to a child or adult and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instruction and should use a mounting kit approved by the manufacturer. -
Page 4: Features & What Is Included
FEATURES & WHAT IS INCLUDED The DVR supports NTSC or PAL video systems and auto detects video loss. The DVR is built-in with MPEG4-SP video and G.726 audio codec. It supports 1 channel video and 1 channel audio recording and playback operation. Audio/Video data is recorded directly on the SD card with FAT13/32 file system and ASF file format. -
Page 5: Name & Function Of Each Part
NAME & FUNCTION OF EACH PART, FRONT VIEW FRONT VIEW Power LED ....Power Indicator Play LED ....Play Indicator Menu/Lock LED . -
Page 6: Side View
NAME & FUNCTION OF EACH PART, SIDE VIEW SIDE VIEW 15) AV/IN: Audio/Video Input V i deo I n ( yel l ow ) A V I n Audi o I n ( w hi t e) Audio/Video IN: 3.5 mm jack for audio/video line in. 16) AV OUT: Audio/Video Output V i deo Out ( yel l ow ) A V Out... -
Page 7: Basic Configuration
BASIC CONFIGURATION 1. Power: Use the power adapter supplied, nickel metal hydride (NiMH) or alkaline batteries. 2. Video System: Connect the camera, the device auto detects NTSC/PAL video system (the output video system will be setup the same as its input video system). Without connecting the camera, the video system setup will be the same as its previous setup. -
Page 8: Operation
OPERATION POWER ON 1. The power switch is situated on the right side of the device, switch to DC when using the supplied power adapter or switch to BATT when using the batteries. *NOTE: Each time after power-on, the system auto-detects its peripherals. When the REC LED flashes, this indicates that the SD card is testing(complete boot time is several seconds). -
Page 9: Record Mode
OPERATION CONTINUED (3) SD Card Status: SD Card has not been inserted or is malfunctioning SD Card is proceeding file testing SD Card is functioning normally Disk full and overwrite record IMPORTANT When SD card is not inserted, record and playback function is inapplicable, but monitoring is applicable. -
Page 10: Playback Mode
OPERATION CONTINUED 4. The event status is determined by the system recording, and according to the order of priority. 5. The order of priority: Manual Record, Motion Detection and then Schedule Record. 6. Different recording modes may have different kinds of setups. Basic setup: video size, recording frames, video quality, and audio recording. -
Page 11: Pc Playback
OPERATION CONTINUED 2. SEARCH AND PLAYBACK: Enter MENU and select SEARCH AND PLAY S E A R C H File directory shows dates and the amount of contents under the directory. The user may press Current location page. Each colour distinguishes different recording events, the user may press buttons to move the cursor left or right and immediately shows the first image of the highlighted event on the screen display background. -
Page 12: Sd Card Maintenance
OPERATION CONTINUED & MENU SETUP SD CARD MAINTENANCE 1. The device supports only FAT 16/32 file system; therefore it is unable to determine other file systems. Please format the SD card (Enter MENU/SD CARD OPTIONS and select “Format”). 2. The system supports only partial SD card file system repair. The system is unable to detect any file system damage, therefore please format the SD card (Enter MENU/SD CARD OPTIONS and select “Format”). -
Page 13: Date/Time
MENU SETUP CONTINUED DATE/TIME (1) Date Format: Y/M/D, M/D/Y, D/M/Y (2) Date/Time Adjustment: Year settings are from 2000 to 2099 MOTION DETECTION 1. Window Setup: Detection Cell: Whole screen is divided into 22x15 square cells. Detection Block: Two or more cells form a block. Cursor: Press PLAY button to switch to Select/Edit mode. -
Page 14: Manual Record & Schedule Record
MENU SETUP CONTINUED Video Detection Block Sensitivity Setup: Changing the alert value setup may effect the recording sensitivity of the Motion Detection. S E N S ENERGY THRESHOLD E N E R G T H R E S H O L Live Video T H R E S H O L D : ¬... -
Page 15: Sd Card Options
MENU SETUP CONTINUED 2. SCHEDULE RECORD (Continuous/Motion Detection): Schedule Record: Records only within the setup time range. S C H E D U L E R E C O R D : O N : 0 0 - : 3 0 7 0 4 X 2 4 0 1 2 F P S : O N... -
Page 16: System Status
MENU SETUP CONTINUED SYSTEM STATUS S T E M S T A T U S S T E M V E R 0 4 X 0 4 X 0 4 X F U L L L O O P Press any button to return to the Main Menu. FACTORY DEFAULT F A C T O R Y D E F... -
Page 17: Specifications
SPECIFICATIONS System ....NTSC/PAL Video System & Video Loss Auto Detection Video Codec ... . MPEG4-SP ASF FIle Format Video Record Frame rate . -
Page 18: Product Warranty
If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... -
Page 19: Garantie De Produit
Si vous avez les issues de garantie ou de soutien satisfont nous contactent employant n'importe laquelle des méthodes suivantes : SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... - Page 20 If you require more information on this product or other SVAT products visit Si vous exigez plus d'information sur ce produit ou ces autres produits de SVAT visite www.svat.com...
