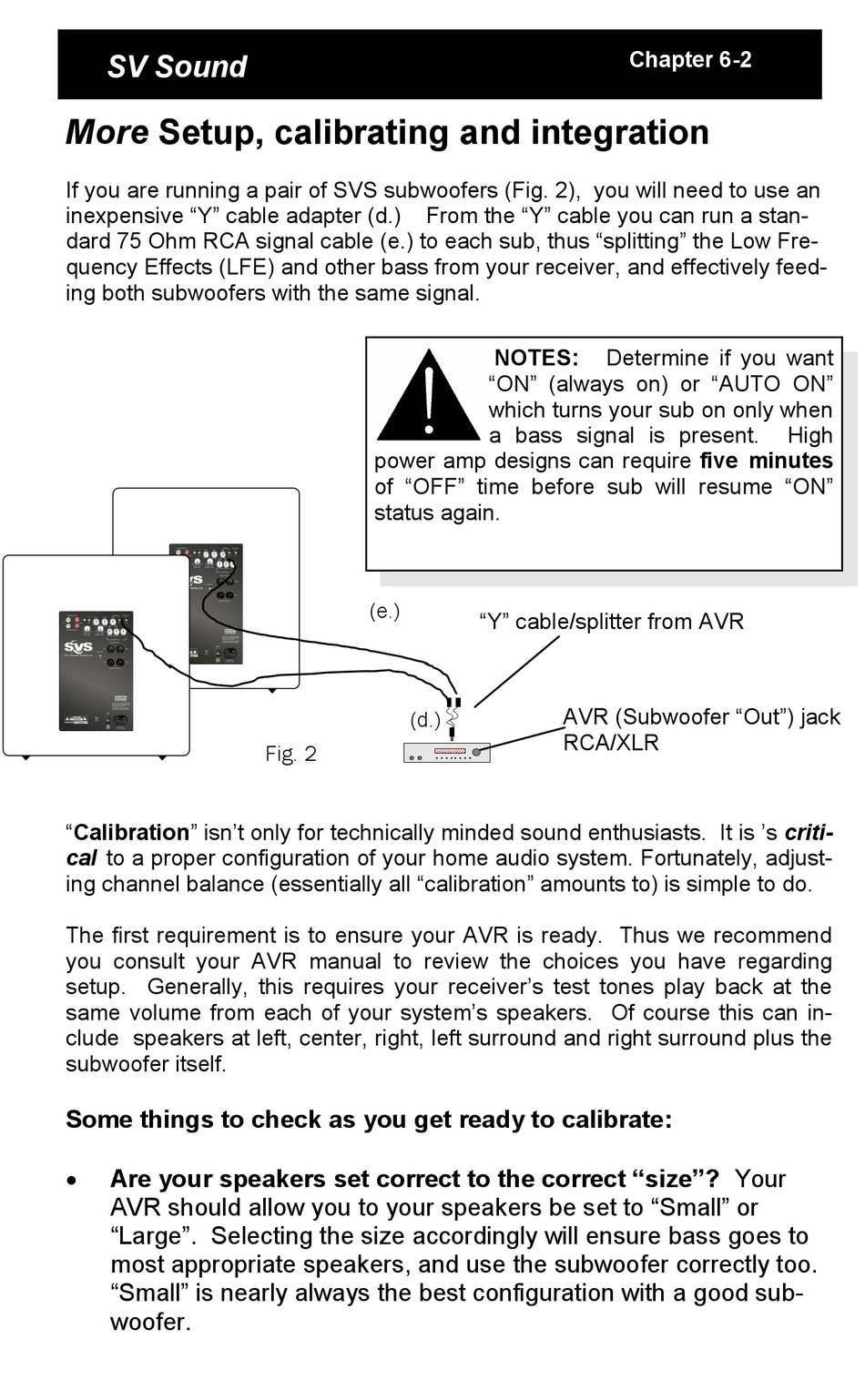

More Setup, calibrating and integration

If you are running a pair of SVS subwoofers (Fig. 2), you will need to use an
inexpensive ―Y‖ cable adapter (d.)
dard 75 Ohm RCA signal cable (e.) to each sub, thus ―splitting‖ the Low Fre-
quency Effects (LFE) and other bass from your receiver, and effectively feed-
ing both subwoofers with the same signal.
―Calibration‖ isn't only for technically minded sound enthusiasts. It is 's criti-
cal to a proper configuration of your home audio system. Fortunately, adjust-
ing channel balance (essentially all ―calibration‖ amounts to) is simple to do.
The first requirement is to ensure your AVR is ready. Thus we recommend
you consult your AVR manual to review the choices you have regarding
setup. Generally, this requires your receiver's test tones play back at the
same volume from each of your system's speakers. Of course this can in-
clude speakers at left, center, right, left surround and right surround plus the
subwoofer itself.
Some things to check as you get ready to calibrate:

Are your speakers set correct to the correct "size"? Your
AVR should allow you to your speakers be set to ―Small‖ or
―Large‖. Selecting the size accordingly will ensure bass goes to
most appropriate speakers, and use the subwoofer correctly too.
―Small‖ is nearly always the best configuration with a good sub-
woofer.
From the ―Y‖ cable you can run a stan-
power amp designs can require five minutes
of ―OFF‖ time before sub will resume ―ON‖
status again.
(e.)
(d.)
Fig. 2
Chapter 6-2
NOTES: Determine if you want
―ON‖ (always on) or ―AUTO ON‖
which turns your sub on only when
a bass signal is present.
―Y‖ cable/splitter from AVR
AVR (Subwoofer ―Out‖) jack
RCA/XLR
High
