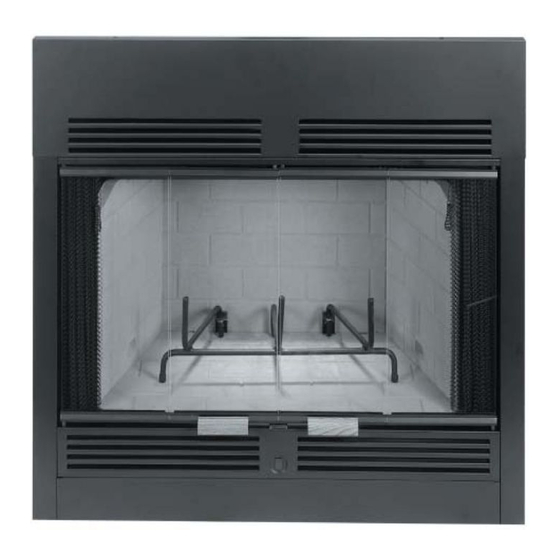

Superior BC36MH Installation Instructions Manual

Superior wood burning fireplaces installation instructions
Hide thumbs Also See for BC36MH:
Table of Contents

Advertisement

Quick Links

Enlarged version
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
INSTALLATION
INSTRUCTIONS

WOOD BURNING FIREPLACES

MODELS BC36MH & BCD36MH
36" Wood Burning Fireplaces
P/N 700,034M REV. A 03/2006
MODELS
BC36MH
This installation manual will enable you to obtain a safe, effi cient
and dependable installation of your fi replace system. Please
read and understand these instructions before beginning your
installation.
Do not alter or modify the fi replace or its components under any
circumstances. Any modifi cation or alteration of the fi replace
system, including but not limited to the fi replace, chimney
components and accessories, may void the warranty, listings
and approvals of this system and could result in an unsafe and
potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS
DOORS: INSTALL THIS FIREPLACE IN A SQUARE AND PLUMB
CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR
BOTTOM.
BCD36MH
WH Report No.
J99025865A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC36MH and is the answer not in the manual?

Questions and answers

Related Manuals for Superior BC36MH

Summary of Contents for Superior BC36MH

  • Page 1: Wood Burning Fireplaces

    RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE INSTALLATION INSTRUCTIONS WOOD BURNING FIREPLACES MODELS BC36MH & BCD36MH 36" Wood Burning Fireplaces P/N 700,034M REV. A 03/2006 MODELS BC36MH This installation manual will enable you to obtain a safe, effi cient and dependable installation of your fi replace system. Please read and understand these instructions before beginning your installation.

  • Page 2: Table Of Contents

    14.DO NOT use a fi replace insert or any other product not specifi ed by the manufacturer of this Superior appliance for use with this fi replace. All gas log sets must be operated with the damper clamped open.

  • Page 3: Introduction

    The BCD36MH model is fi tted with a blower and is available as an option for model BC36MH. The grate included properly positions the fi re and limits the amount of fuel. IF A REPLACEMENT GRATE IS NEEDED REPLACE THE GRATE WITH MODEL 87L20 ONLY.

  • Page 4: Assembly Outline

    Insulate Joists Same As Ceiling Draft Stops Firestop CTDT Termination Note: Non- Combustible Chase Flashing Must Be Used To Cover Chase Opening Level Solid Continuous Surface Insulation (Thermal Barrier) Figure 2 Chimney Enclosure Construct a box-like framed structure to enclose the fi...

  • Page 5: Assembly Steps

    2. Install the chimney system. 3. Connect house wiring to the fireplace for blower (blower is optional for model BC36MH). 4. Install the outside combustion air kit. 5. Plumb gas line if a decorative gas appliance will be used. (Gas connections should only be performed by an experienced, licensed/ certifi...
  • Page 6 Optional Floor Bracket " Metal Safety Strips Figure 8 Metal Safety Strips Figure 9 Step 3. Refer to fi replace drawings and speci- fi cations on Pages 6 and 7 for framing dimen- sions and details. Frame appliance enclosure as illustrated in Figure 12 on Page 7.

  • Page 7: Fireplace Specifi Cations

    FIREPLACE SPECIFICATIONS Product Reference Information Cat. Model Ship. Ship. Volume H4630 BC36MH 175 lb. 20.7 cu. ft. H4631 BCD36MH 180 lb. 20.7 cu. ft. Framing Dimensions Fireplace Opening Width 41-1/4” 1048 mm 37-1/2" 953 mm 28-3/4" 730 mm 15-3/8" 391 mm 70"...

  • Page 8: Installing The Chimney System

    Step 4. Fireplace should be secured to side framing members using the full length nailing tabs at the top and bottom of the fi replace front face. Use screws, 8d nails or equivalent fasteners (Figure 13). This manufactured home model is also provided with fl...
  • Page 9 WARNING Do not allow insulating materials to be blown into the space inside the thimble and the chimney. To do so could result in a fi re hazard. Outer Pipe Of Thimble Cathedral Chimney Ceiling 14" Min. Use Adjustable Thimble FM8-AT1 For All Ceiling Piches, From Flat To 3/12 Pitch.

  • Page 10: Ten Foot Rule Summary

    Step 7. Secure fl ashing by nailing along the perimeter into roof using 8d nails or equivalent fasteners. If shingled roof, slide upper end and sides of roof fl ash- ing under shingles (trim if necessary), seal the top and both sides of the fl...

  • Page 11: Special Offset Instructions

    FTF8 CHIMNEY COMPONENT CALCULATIONS The minimum installed height of the completed fi replace system is 10' 6". The maximum height is 40' 0" when the chimney is exposed. To determine the number of chimney sections and chimney components required, follow these steps: 1.

  • Page 12: Vertical Elevation Chart

    Height Of Number Of FTF8 Chimney Only Chimney Components Inches Feet/Inches 12" 18" 24" 36" 48" -S4 0 10 1 10 2 10 3 10 9 11 10 11 11 11 12 11 Table 3 FTF8 VERTICAL ELEVATION CHART Height Of Chimney Only Chimney Only Meters...

  • Page 13: Offset Elevation Chart

    Figure 31 Joints Chimney Section No. 8 x 1/2" SMS Figure 32 FTF8 OFFSET ELEVATION CHART Offset Height FTF8-S4 (Inches) (Inches) Stabilizer 12" – – – – – – – – – – – – – – – – – –...

  • Page 14: Installing Offsets

    Blower Kit A Blower Kit model BFK36 is preinstalled, standard, on model BCD36MH and is available as an option for model BC36MH. The optional Blower Kit can be installed prior to or after installation of the fi replace. Note: These fi replace models are not supplied with an optional wall switch (FWSK) for fan operation.

  • Page 15: Combustion Air Kits

    Always check local building codes. Instal- lation of the BFK36 Blower Kit must comply with local regulations as well as the National Electric Code. Combustion Air Kits These appliances are equipped with an outside (make-up) air door and integral actuator arm and an outside air kit with a collar, duct and hood (90L83).

  • Page 16: Glass Doors

    Note: A 1" air space must be preserved for all combustible materials extending for any con- tinuous length adjacent to the chimney. It is especially important to insulate between the studs of an outside chase cavity and under the fl oor if the fl oor is above ground level. Do not place insulation directly against the fi...
  • Page 17 Wall Shield Required Where Less Than 12". Adjacent Wall Is Never Allowed Closer Than 7". 24" Protected Side Wall 30" Methods of Determining Hearth Extension and Wall Shield Equivalents - To determine the thickness required for the alternate material when either the "k" value or "r" value is known, use either the k formula or r formula.

  • Page 18: Finish Requirements

    BC36MH The accessory parts and components shown on Pages 18 and 19 are to be used only with your BCD36MH or BC36MH fi replace system. If you encounter any problems or have questions concerning the installation or application of this system, please contact your distributor.

  • Page 19: Installation Components

    INSTALLATION COMPONENTS 63L10 FTF8-12 63L13 FTF8-18 H0522 FTF8-24 63L14 FTF8-36 Chimney Section 63L15 FTF8-48 Adjustable Chimney Pipe Kits HO559 FM8-PK10 Offset/ Return Package 30 Degree Offset/Return Elbow FTF8-ES30 63L22 15 Degree Offset/Return Elbow FTF8-OR15 63L28 Firestop Spacer (30°) 63L30 F8FS30 Firestop Spacer (Flat) (Single Pack) 63L29 F8FS Firestop Spacer (Flat) (12 Pack)
  • Page 20 The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifi cations, prices and also to discontinue colors, styles and products. Consult your local distributor for fi replace code information. Printed in U.S.A. © 2006 by LHP P/N 700,034M REV.
