Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)

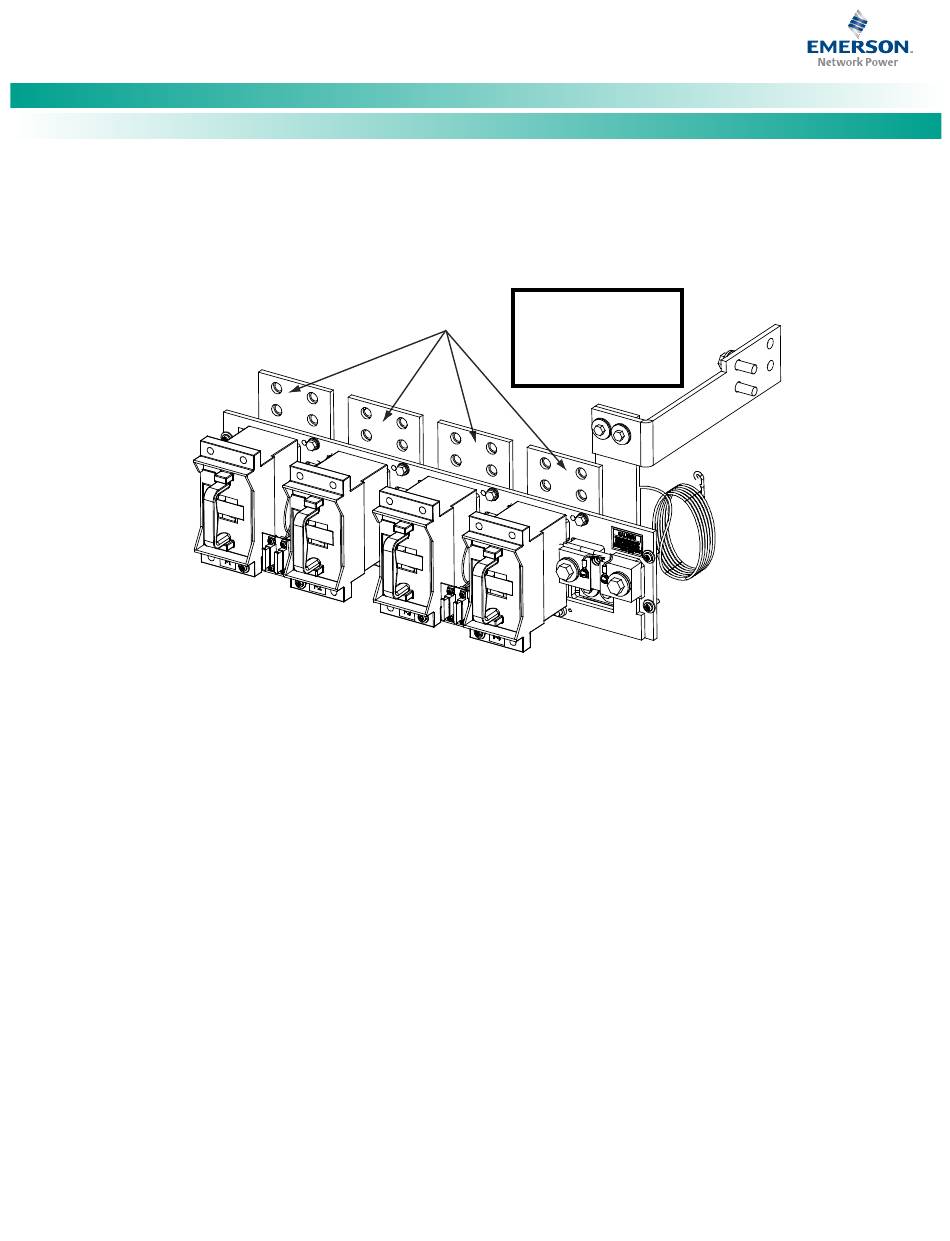

Figure 49.
List BH: Battery Disconnect Distribution Panel,
(4) TPH Fuse Battery Disconnect Positions (with Shunts) (without Return Busbar)
BATTERY CONNECTIONS
3/8-16 Captive Nuts on 1" Centers
(Customer must supply
or order additional
hardware)
Spec. No: 582127000
Model No: 721
NPBB
Maximum Lug Width: 1.75 inches.
Maximum fuse size is 400A.
-48VDC Battery
WARNING!
Connections
Observe proper polarity
when making battery
connections.
[59]
Code: QS582127000
Issue AC, December 10, 2013
