NetSure ™ -48V DC Power System
Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)

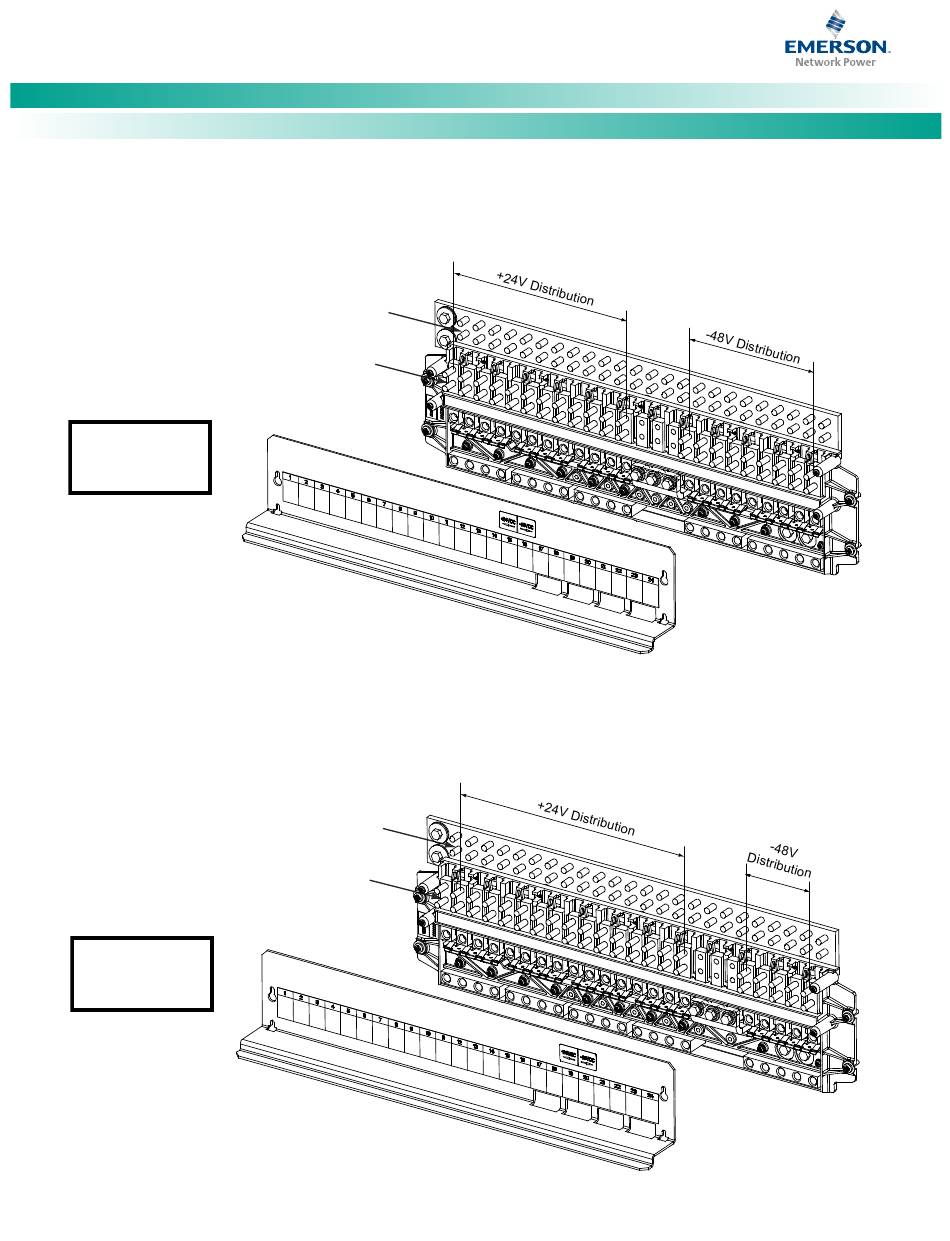

Figure 40. List DC: -48V/+24V Distribution Panel,
(9) –48V Bullet/TPS/TLS Circuit Breaker/Fuse Positions (with Return Busbar) and
(12) +24V Bullet/TPS/TLS Circuit Breaker/Fuse Positions (with Return Busbar)
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8" Centers
(Customer must supply
or order additional
hardware)
Maximum Lug Width:
0.625 inches.
WARNING!
Observe proper
polarity when making
load connections.
Caution: A circuit breaker or fuse with a rating
of 100A or greater SHALL HAVE an empty
mounting position between it and any
other overcurrent protective device.
Figure 41. List DD: -48V/+24V Distribution Panel,
(5) –48V Bullet/TPS/TLS Circuit Breaker/Fuse Positions (with Return Busbar) and
(16) +24V Bullet/TPS/TLS Circuit Breaker/Fuse Positions (with Return Busbar)
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8" Centers
(Customer must supply
or order additional
hardware)
Maximum Lug Width:
0.625 inches.
WARNING!
Observe proper
polarity when making
load connections.
Caution: A circuit breaker or fuse with a rating
of 100A or greater SHALL HAVE an empty
mounting position between it and any
other overcurrent protective device.
Spec. No: 582127000
Model No: 721
NPBB
Load Return
Connections
Load
Connections
Load Return
Connections
Load
Connections
[54]
Code: QS582127000
Issue AC, December 10, 2013
