NetSure ™ -48V DC Power System
Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)

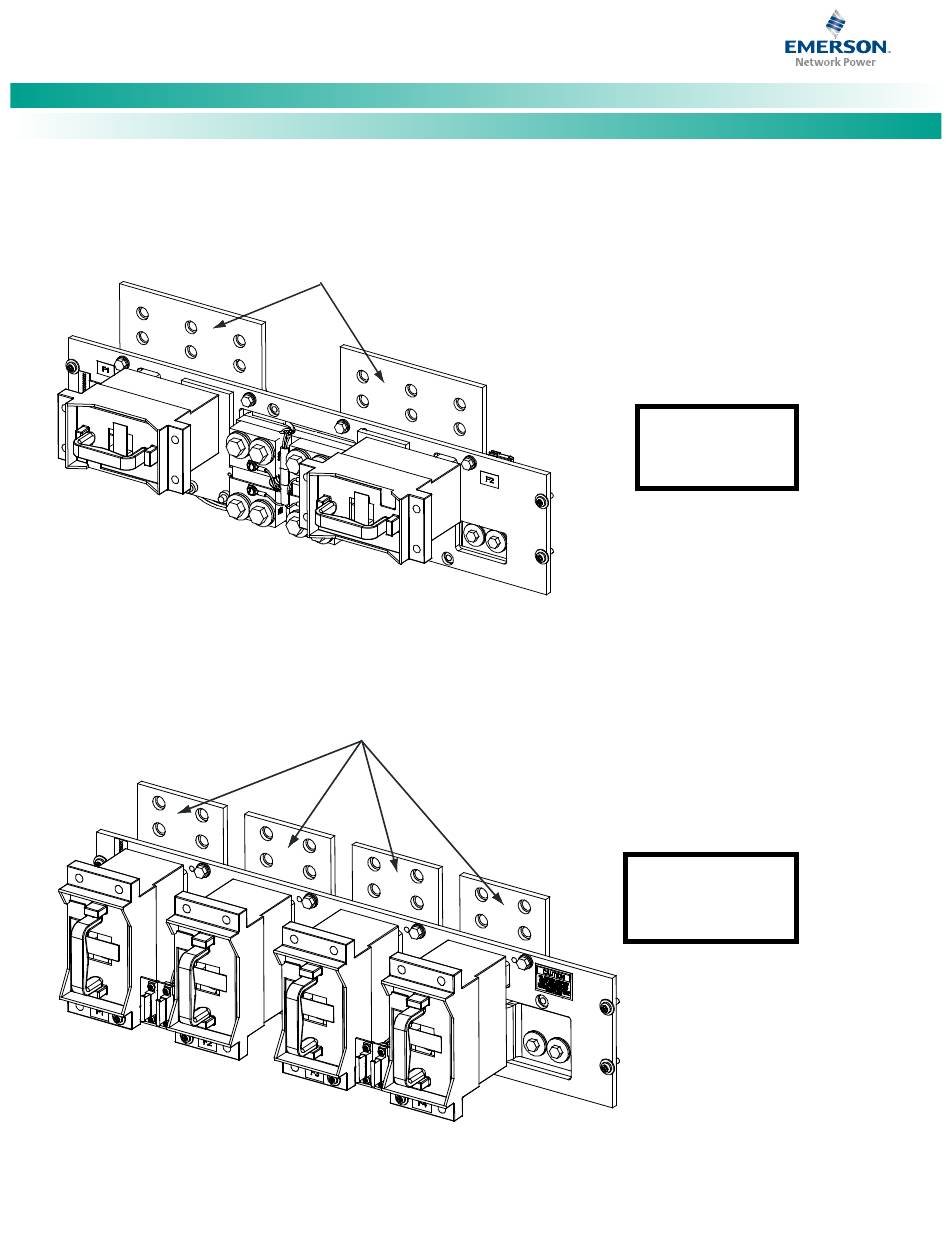

Figure 33. List AF: -48V Distribution Panel,
(2) TPH Fuse Positions (with Shunts) (without Return Busbar)
For an 800A fuse,
load must not exceed 600A.
Figure 34. List AG: -48V Distribution Panel,
(4) TPH Fuse Positions (without Shunts) (without Return Busbar)
Spec. No: 582127000
Model No: 721
NPBB
-48VDC Load
Connections
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1" Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.88 inches.
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1" Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.75 inches.
Maximum fuse size is 400A.
Observe proper
polarity when making
load connections.
[50]
WARNING!
Observe proper
polarity when making
load connections.
WARNING!
