Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)
Figure 28.
Installing Bay-to Bay Busbars (List 2 and 3 Only) (cont'd from previous page)
Spec. No: 582127000
Model No: 721
NPBB

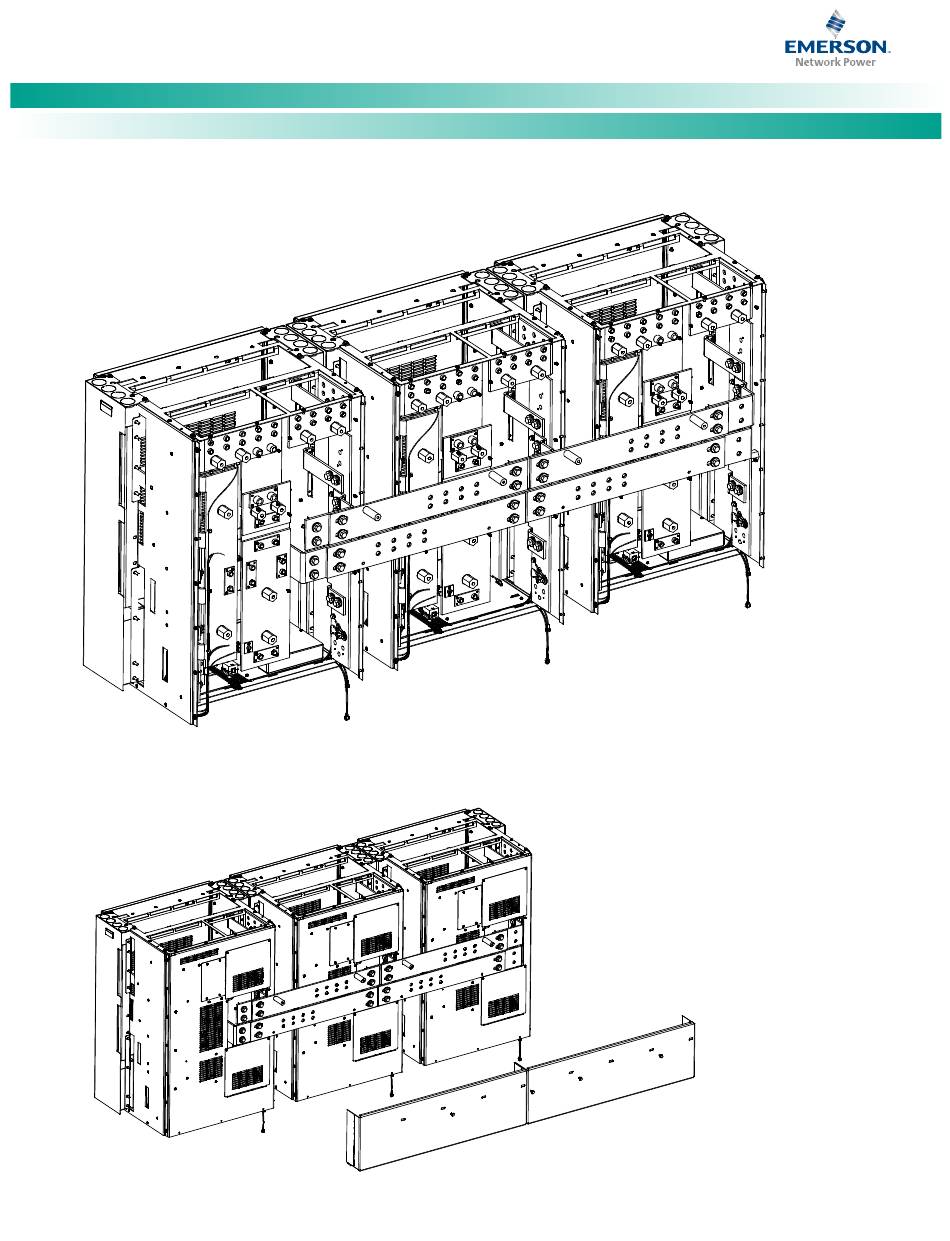

ASSEMBLED VIEW
7. Secure rear cover shields to previously
8. Secure rear cover shields to distribution
ATTACH REAR COVER SHIELDS
[44]
installed insulator standoffs using
1/4-20 x 1/2" Bolt and 1/4" Flat Washer,
2 places each shield.
cabinets using 6-32 x 3/8" screws,
2 places each shield.
Issue AC, December 10, 2013
Code: QS582127000
