NetSure ™ -48V DC Power System
Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)
Direct AC Input Connections to 588705300 List 3 Module Mounting Shelves
Refer to Figure 14.

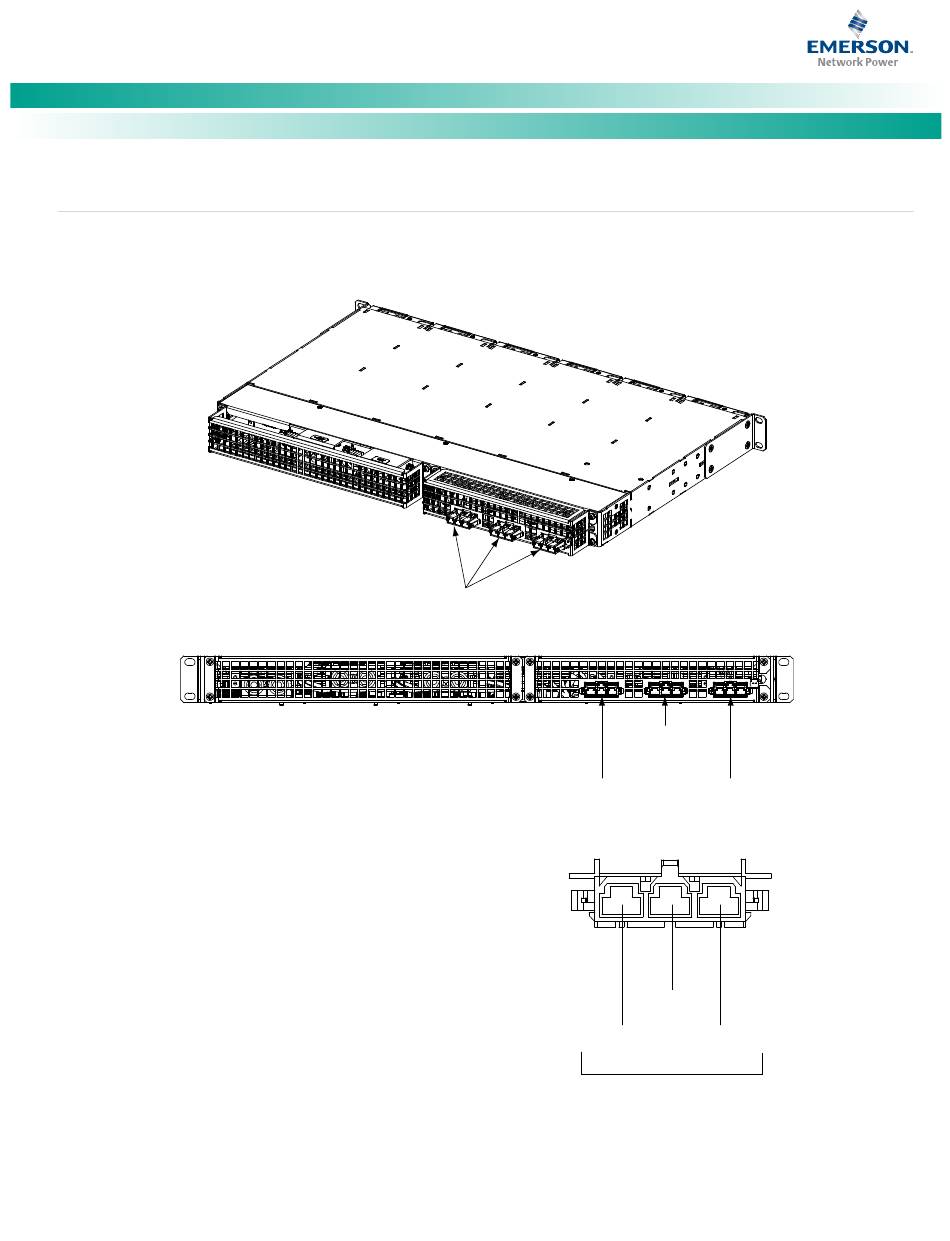

Figure 14. Nominal 120/208/240 Volts AC Input and Equipment Grounding Connections to Module Mounting Shelf 588705300 List 3
(Single Phase, Cable Assemblies)
Rear
AC input connections are made using the supplied
Rear
Spec. No: 582127000
Model No: 721
NPBB
AC input cable assemblies connected here.
Rectifiers are numbered left to
right as viewed from the front.
AC Input for
Rectifier Positions
#5 and #6
AC Input Connector
(Cabinet Rear View)
* Color of AC Input
Cable Assembly Lead.
P/N 535232
P/N 547898
Brown*
[17]
AC Input for
Rectifier Positions
#3 and #4
AC Input for
Rectifier Positions
#1 and #2
Ground
Green/Yellow*
L1 L2-N
Blue*
Nominal
120/208/240V
AC Input
