-48V DC Power System
Quick Start Guide, QS582127000 (Issue AC, December 10, 2013)
Figure 5.

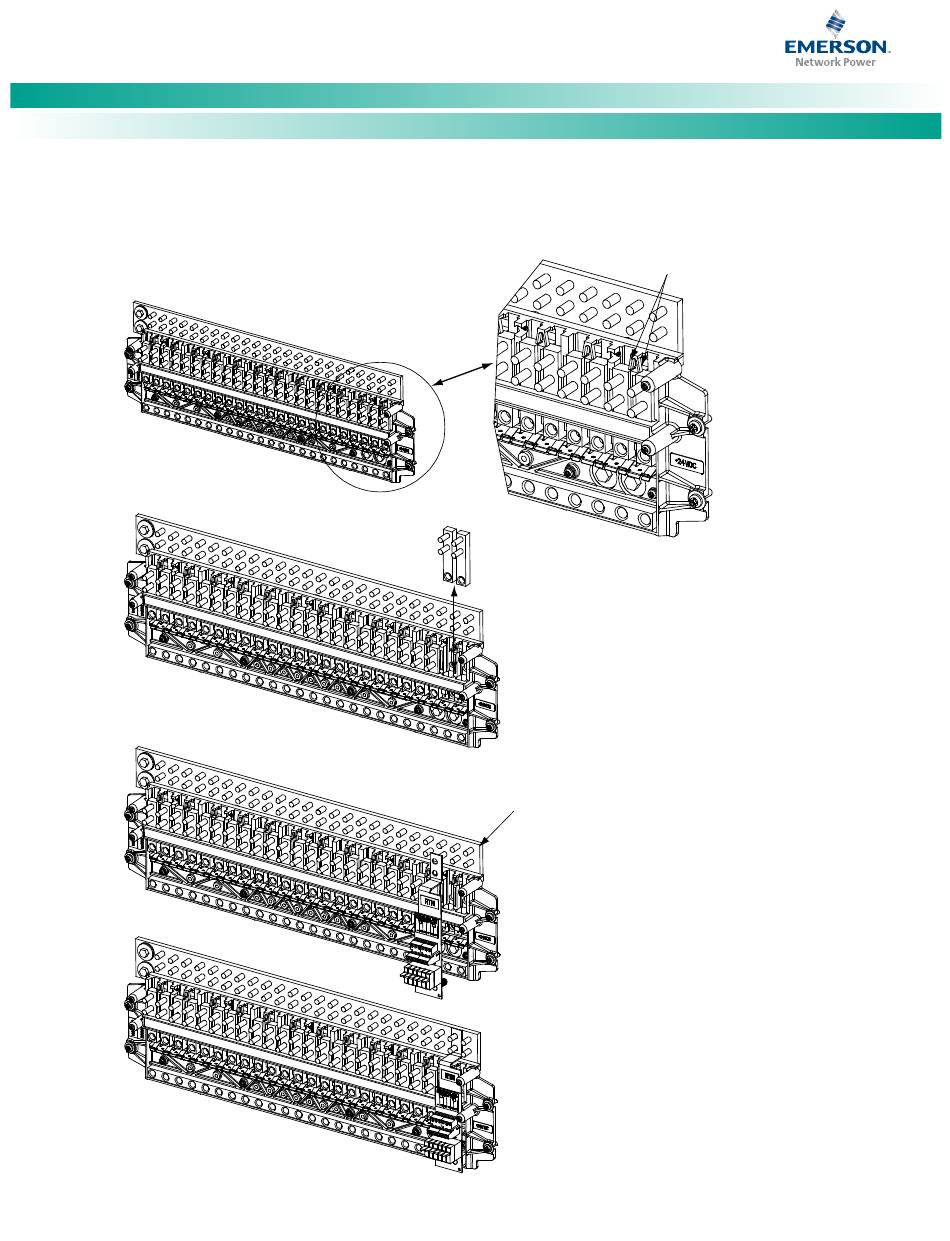

Installing an Optional Bullet Nose Type 6-Position GMT Distribution Fuse Block
Spec. No: 582127000
Model No: 721
NPBB
1.
2.
Remove two lug terminal busbars
for positions to be occupied
by GMT Fuse Block.
RTN Bar
3.
Plug in GMT Fuse Block and secure
at two locations on the RTN bar.
Torque to 72 in-lbs.
GMT Fuse Block Installed View
[6]
Press in tabs to release
lug terminal busbars for
positions to be occupied
by GMT Fuse Block.
Code: QS582127000
Issue AC, December 10, 2013
