Summary of Contents for Stuv SWINGLOX

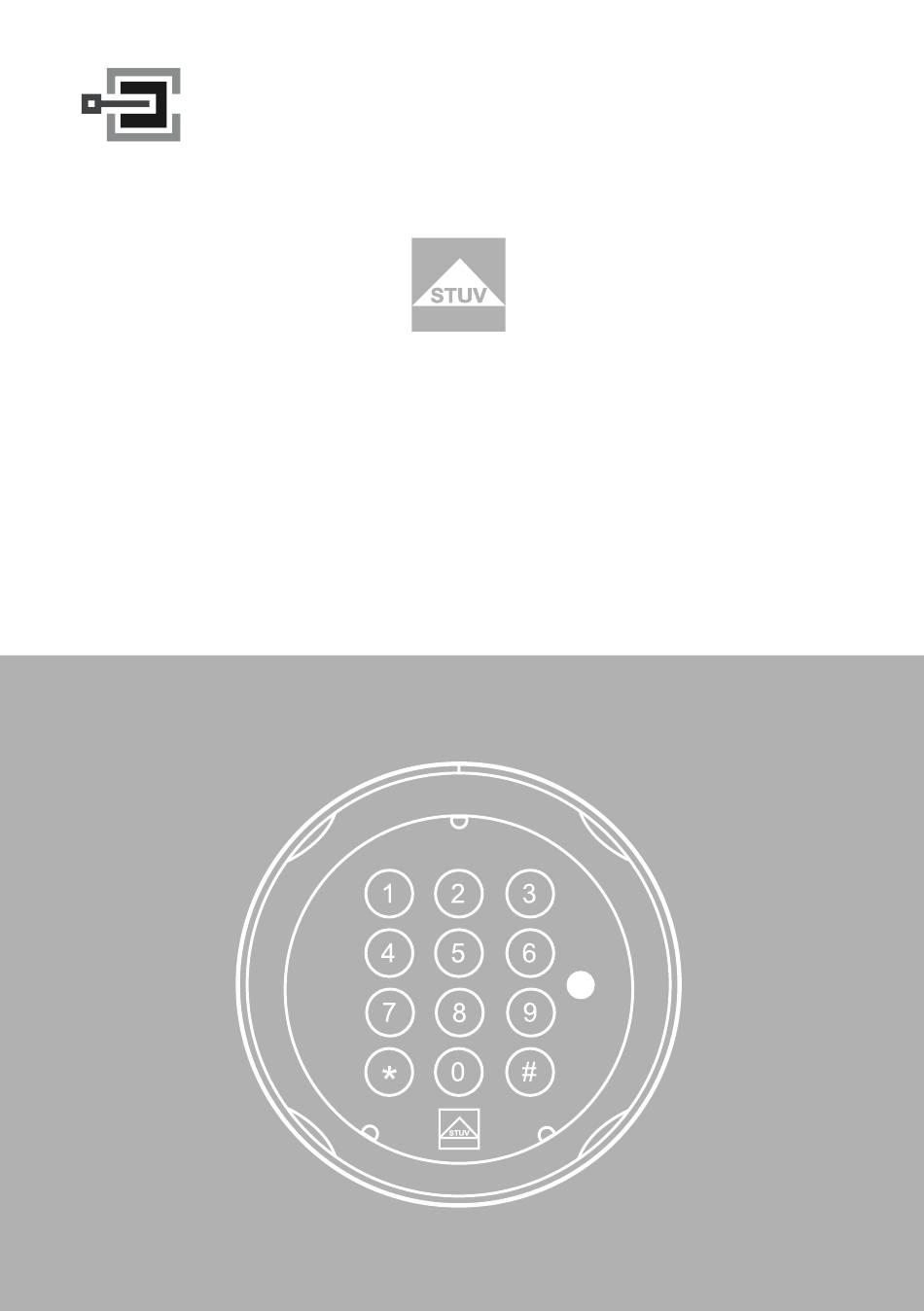

- Page 1 CLAVIS Deutschland GmbH Telefon: +49 (0)561 988 499-0 Schillerstraße 47-51 E-Mail: info@tresore.eu 34117 Kassel Internet: www.tresore.eu www.tresorschloss.de SWINGLOX Installation Manual...
-
Page 2: Table Of Contents
Content Read first 10 Application 11 Basics, Technical Notes Lock 12 Technical Notes Keypad Installation 13 Installation Procedure Step 1 15 Installation Procedure Step 2 Application Products are designed for highest demands and maximum reliability. Application and installation recommendations and our comprehensive consulting service provide support for the choice of our products. -
Page 3: Read First
Read first Lock installation Basics: The precise position and mounting of the locking mechanism play a major role in the correct functioning of the lock. The locking mechanism must be aligned precisely in both horizontal and vertical position. The lock can be mounted locking to the right, left, top or bottom, resting on the front or back. -
Page 4: Technical Notes Keypad
Read first Fig. 1 Cable entry instead of a keyhole Technical notes keypad: Mounting screws Self-tapping screw DIN 7500 Form C M4 x 25 for the base plate (Cheese-head screws according to DIN 7985) Cut out see Fig. 5 Tightening torque 2,7 Nm - 12 -... -
Page 5: Installation
Installation Installation procedure Step 1 If the connection cable from the lock to the keypad is guided through a hole into the interior of the safe, a suitable drilling position, which corresponds to the VdS guidelines, must be defined. In any case, it is important to ensure that the hole is located centrally in the area of the lock located behind it, in the middle of the cable entry of the lock and always in the center of the base plate of the keypad. - Page 6 Installation Fig. 3 Cable entry of lock Plug Connection cable A suitable strain relief for the connecting cable must be established between the plug connection of the lock and the mounting plate of the keyboard. This may be, for example, a cable fixer or something similar. It is important that a sufficiently long piece of the connection cable (min.
-
Page 7: Installation Procedure Step 2
Installation Installation procedure Step 2 The keypad housing must be placed in the middle of the cable entry hole or the existing key hole. Screw the mounting plate to the safe door. The base plate of the keypad must be securely screwed to the safety door using two screws (self-tapping screw DIN 7500 Form C M4 x 25 Cheese-head screws according to DIN 7985). - Page 8 Installation 02 Connect the connection cable „Lock - Keypad“ to the keypad. (Fig. 6) 03 Connect a battery (9V block 6LR61) to the battery contact. (Fig. 6 and Fig. 7) 04 Insert the battery into the lower part of the keyboard housing. (Fig. 8) 05 Place the keypad housing on the base plate.
- Page 9 Installation Fig. 8 Fig. 9 Cable in housing Mark 1 Mark 2 Battery in housing Marking keypad housing ATTENTION: during assembly / disassembly of the keyboard housing make sure there is a exact match between the marking of the housing and the indicator marks 1 or 2. Fig.
- Page 10 Germany Telefon +49 2056 14-0 Telefax +49 2056 14-251 E-Mail info@stuv.de Internet www.stuv.de 04/2019 Printed in Germany - 6.00.2017.3 Zumutbare Abweichungen in Modellen und Farben sowie Änderungen zur Anpassung an den neuesten Stand der Technik und Produktion bleiben ausdrücklich vorbehalten.
