Summary of Contents for Sunfire HRS HRS-SAT4BIP

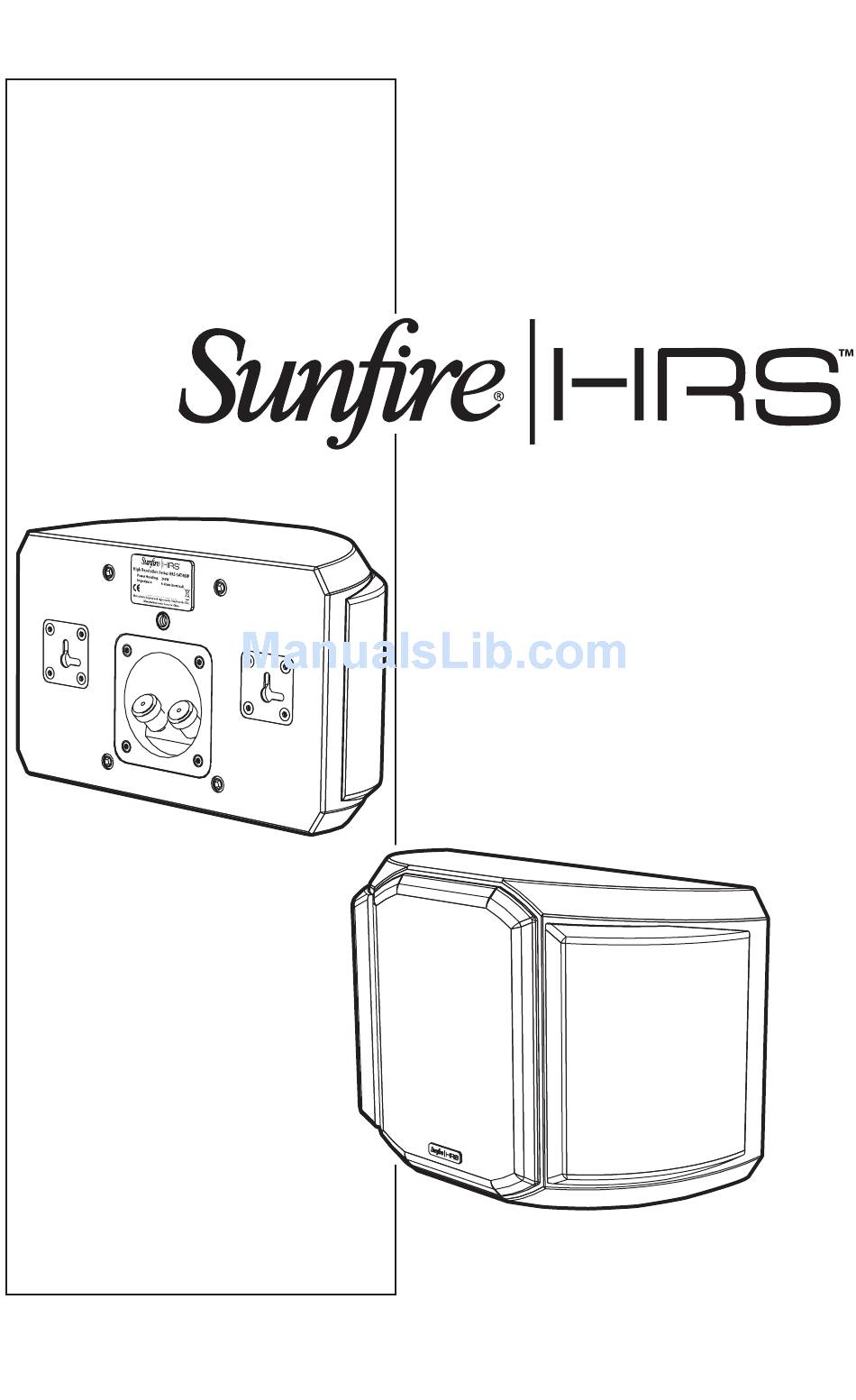

- Page 1 High Resolution Series Surround Loudspeaker HRS-SAT4BIP User's Manual...
-
Page 2: Table Of Contents
Installation ... 8 Specifications ... 10 Troubleshooting ... 11 Service Assistance ... 11 For more information on this and other Sunfire products, please visit our website: 8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,... -
Page 3: Introduction
Introduction Thank you for purchasing these Sunfire High Resolution Series surround loudspeakers. We hope you enjoy them and the music they make as much as we have enjoyed creating them for you. These loudspeakers follow a great heritage of both world-class loudspeaker designs and industry-leading subwoofer technologies. - Page 4 Years of research and decades of experience have gone into these amazing loudspeakers. Sunfire created the category of small- box, high-power subwoofers more than a decade ago with the original True Subwoofer. This design relies on high- pressure, “High Back-emf”...
-
Page 5: Features
Features 1. Mounting Brackets Each surround loudspeaker has two keyhole brackets that allow for wall mounting horizontally or vertically. . Binding Posts The gold-plated spring-loaded termi- nals accept bare wire, tinned-wire, or pins. Always use high quality connec- tions and speaker wires, and make sure there are no loose fittings or stray wire strands. -
Page 6: Loudspeaker Locations
7.1 Configuration Sunfire home theater processors and receivers have two extra outputs for sur- round back loudspeakers. These create a wonderful sense of realism in surround effects during playback of Dolby Digital EX, Dolby Pro Logic IIx, and DTS-ES. -
Page 7: Location
They are not designed to accept 00 watts of power at the full frequency range. The Sunfire High Resolution Series subwoofers are a perfect match for these surround loudspeakers. There are a vari- ety of HRS subwoofer models to choose from to match your system. -
Page 8: Installation
The HRS-SAT4BIP weighs 7.0 lb. (3.2 kg). You should allow a good safety margin when mounting. If in doubt, please contact your Sunfire dealer for professional installation. User's Manual... - Page 9 Wall-mounting the HRS-SAT4BIP The HRS-SAT4C comes with a wall- mount template to help mark the correct position for the two mounting screws. It is recommended that you get at least one of the screws into a wall stud, if possible. If this is not possible, then two dry wall anchors and screws are supplied.
-
Page 10: Specifications
10.0" (255 mm) Depth 4.35" (110.6 mm) Weight 7.0 lb. (3.2 kg) © 2009 Sunfire, a division of Elan Home Systems, LLC. All rights reserved. Sunfire reserves the right to improve its products at any time. Therefore, specifications are subject to change without notice. -
Page 11: Troubleshooting
1300 E New Circle Road, Suite 150 Lexington, KY 40505 Phone 859-514-890 Fax: 859-69-797 You will be directed to an authorized Sunfire Service Station or receive instructions to ship the unit to the factory. Please save the original shipping carton and packing materi- als in case shipping is required. - Page 12 High Resolution Series Surround Loudspeaker HRS-SAT4BIP Manual 913-160-00 Rev A...
