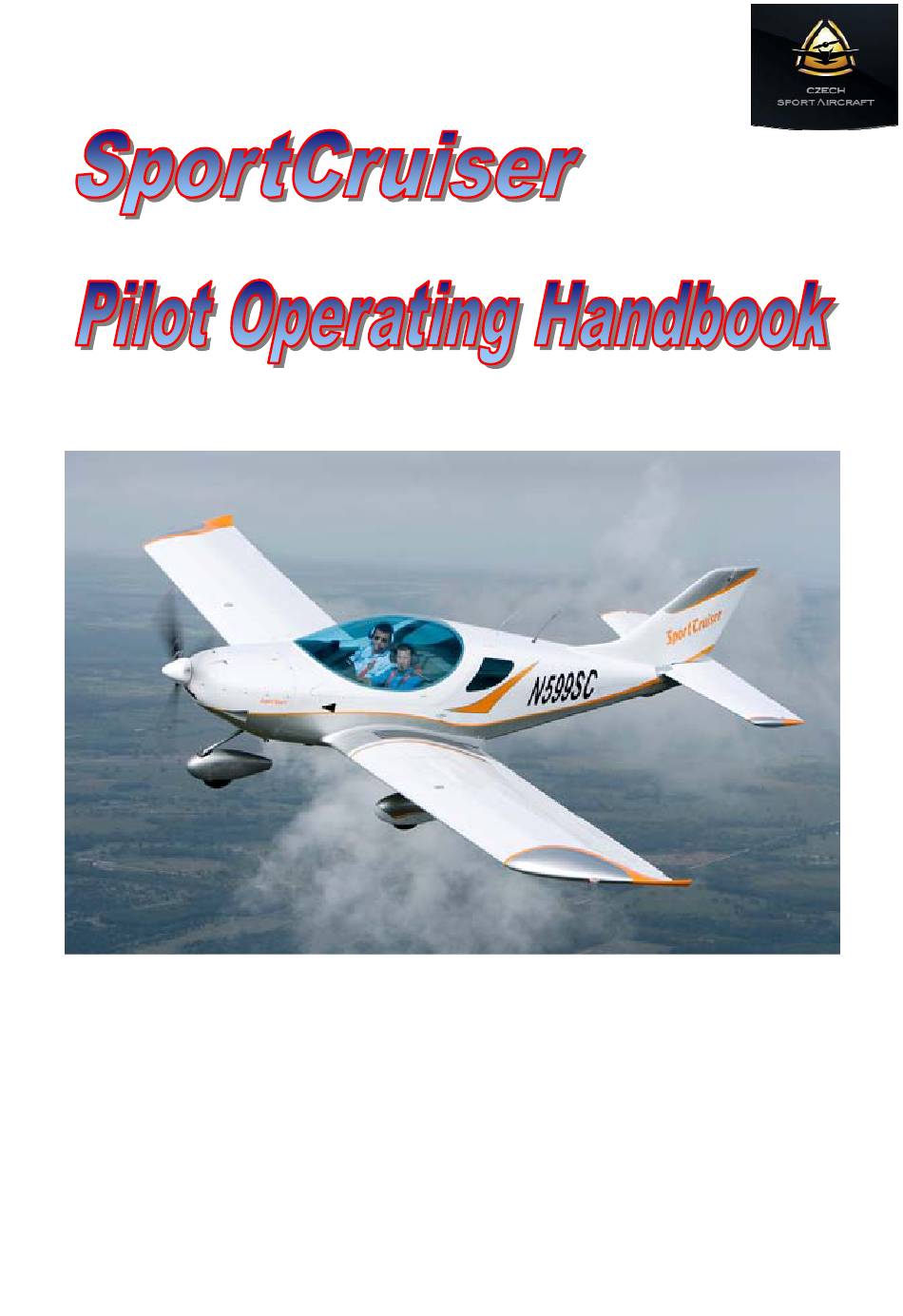

  • Page 1 Á Č Á Č Á Č Á Č www.czechsportaircraft.com...
  • Page 3 Registration: Serial Number: xxSCxxx This airplane must be operated in compliance with information and limitations contained in herein. This POH must be available on board of the airplane.

  • Page 5: General Information

    SECTION 1 1. GENERAL INFORMATION 1.1 Table of contents 1.2 Record of revisions 1.3 List of effective pages 1.4 General 1.5 Warnings, cautions and notes 1.6 Definitions and abbreviations Date of Issue: 04/2009 Revision: 3.0...

  • Page 6: Table Of Contents

    1. GENERAL INFORMATION 1.1 Table of contents Section GENERAL INFORMATION............1 AIRPLANE AND SYSTEMS DESCRIPTION......2 OPERATING LIMITATIONS ............3 WEIGHT AND BALANCE INFORMATION......... 4 PERFORMANCE ................ 5 EMERGENCY PROCEDURES ........... 6 NORMAL PROCEDURES ............7 AIRPLANE HANDLING,SERVICING AND MAINTENANCE ..8 REQUIRED PLACARDS AND MARKINGS .......

  • Page 8: List Of Effective Pages

    1.3 List of effective pages Section Page Date of Issue Section Page Date of Issue 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009...
  • Page 9 Section Page Date of Issue Section Page Date of Issue 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 04/2009 10-1 04/2009 04/2009 10-2...
  • Page 10 1.4 General SportCruiser is a Light Sport Aircraft (LSA) designed and built in : Á Č Á Č Á Č Á Č www.czechsportaircraft.com based on FAA Light Sport Aircraft category according to ASTM Standards F2245, F2279 and F 2295. This Pilot Operating Handbook has been prepared to provide pilots with information for the safe and efficient operation of SportCruiser.

  • Page 11: Definitions And Abbreviations

    1.6 Definitions and abbreviations Atitude direction indicator Altitude or Altimeter Air Taffic Control Airspeed Indicator pressure unit (1 bar = 14.5037 psi) BEACON anti-collision beacon °C temperature in degree of Celsius (1°C = (°F - 32) / 1.8) Calibrated Airspeed Course deviation indicator Cylinder head temperature COMM...
  • Page 12 speed in meter per second (1 m/s = 196.8 fpm = 1.944 knots = 3.6 km/h) Newton - force unit (1 N = 0.225 lbf) Nautical Mile (1 NM = 1852 m) system is switched off or control element is in off-position system is switched on or control element is in on-position Outside Air Temperature Pilot Operating Handbook...
  • Page 13 SECTION 2 2. AIRPLANE AND SYSTEMS DESCRIPTION 2.1 Airplane description 2.2 Engine 2-10 2.3 Propeller 2-12 2.4 Fuel system 2-12 2.5 Oil 2-13 2.6 Operating weights and loading 2-14 Date of Issue: 04/2009 Revision: 3.0...

  • Page 14: Airplane And Systems Description

    This section provides description and operation of the aircraft and its systems. 2.1 Airplane description SportCruiser is the airplane intended especially for recreational and cross- country flying, and non-aerobatics operation. SportCruiser is a single-engine, all metal, low-wing monoplane of semi- monocoque construction with two side-by-side seats.
  • Page 15 Aircraft layout Date of Issue: 04/2009 Revision: 3.0...

  • Page 16: Control System

    Airframe All-metal construction, stressed skin, single curvature metal skins riveted to stiffeners. Construction is of 6061-T6 aluminum sheet metal riveted to aluminum angles with Avex rivets. This high strength aluminum alloy construction provides long life and low maintenance costs thanks to its durability and corrosion resistance characteristics.

  • Page 17: Baggage Compartment

    Seats and safety harness Side-by-side seating. Seat cushions are removable to make more easy cleaning and drying. Four point safety belts provided to each seat. Additional seat upholstery to raise the small pilot or move him forward can be the option. NOTE Prior to each flight, ensure that the seat belts are firmly secured to the airframe and that the belts are not damaged.
  • Page 18 Cockpit Instrument panel layout Date of Issue: 04/2009 Revision: 3.0...
  • Page 19 Description of instrumentation and controls in the cockpit PTT / elevator trim / Parking brake aileron trim buttons Backup Airspeed indicator Switches EFIS PS Intercom EMS warning light Flaps control switch Aileron trim indicator Flaps position indicator Elevator trim indicator Throttle Transceiver Choke...

  • Page 20: Instruments And Avionics

    Instruments and Avionics • Dynon D100 EFIS • Dynon D120 EMS • Backup Airspeed indicator • Garmin SL40 transceiver • Garmin GTX327 transponder • Garmin 296 GPS • Artex ME406 ELT • Antennas Miscellaneous equipment • G -205 trim control and PTT on the control sticks •...
  • Page 21 Minimum instruments and equipment list for VFR flights: - Airspeed indicator - Altimeter - Compass (is not required by ASTM F 2245) - Fuel quantity indicator - Tachometer (RPM) - Engine instruments as required by the engine manufacturer : Oil temperature indicator Oil pressure indicator Cylinder head temperature indicator Date of Issue: 04/2009...
  • Page 22 2.2 Engine ROTAX 912 ULS engine 73.5 [kW] (98.6 [hp]) is installed in SportCruiser. Rotax 912 ULS is a 4-stroke, 4 cylinder, horizontally opposed, spark ignition engine with one central camshaft-push-rod-OHV. Liquid cooled cylinder heads, ram air cooled cylinders. Dry sump forced lubrication. Dual contactless capacitor discharge ignition.

  • Page 23: Electrical System

    Throttle and Choke Engine power is controlled by means of the THROTTLE lever with the CHOKE lever which are positioned in the middle channel between the seats side by side. Both levers are mechanically connected (by cable) to the flap on the carburetors. Springs are added to the throttle push rods to ensure that the engine will go to full power if the linkages fail.

  • Page 24: Fuel System

    Ignition Switch Ignition switch must be on “BOTH” position to operate the engine. For safety remove the key when engine is not running. NOTE All switches or engine controls are "up" or "push forward" for operation, except the choke, cabin heating and carburetor preheat, which is "Pull" for "On".
  • Page 25 Recommended fuel type: (refer to the ROTAX Operator’s manual section 10.2.2 Fuel, Rotax Service Instruction SI-912-016) MOGAS European standard - min. RON 95, EN 228 Super, EN 228 Super plus US standard - ASTM D4814 Canadian standard - min. AKI 91, CAN/CGSB-3.5 Quality 3 AVGAS US standard - AVGAS 100 LL (ASTM D910)
  • Page 26 2.6 Operating weights and loading Empty weight (standard equipment) ....760 [lb] (345 [kg]) NOTE Actual empty weight is shown in section 4 LSA Max. take-off weight........1 320 [lb] (600 [kg]) Max landing weight..........1 320 [lb] (600 [kg]) Max.

  • Page 27: Operating Limitations

    SECTION 3 3. OPERATING LIMITATIONS 3.1 Stalling speeds 3.2 Flap extended speed range 3.3 Maximum maneuvering speed 3.4 Never exceed speed 3.5 Maximum structural cruising speed 3.6 Crosswind and wind limitations 3.7 Service ceiling 3.8 Load factor 3.9 Prohibited maneuvers 3.10 Engine operating speeds and limits 3.11 Other limitations Date of Issue: 04/2009...
  • Page 28 3. OPERATING LIMITATIONS CAUTION Airspeeds values are valid for standard AVIATIK WA037383 pitot-static probe. 3.1 Stalling speeds at maximum take-off weight Conditions: Altitude Wing loss Max.take-off flaps at recovery weight pos. Engine: idle knot knot 0° Wing level 15° stall 30°...

  • Page 29: Load Factor

    Maximum negative limit load factor ......- 2 g 3.9 Prohibited maneuvers WARNING AEROBATICS AND INTENTIONAL SPINS ARE PROHIBITED ! Airplane Category: LSA The SportCruiser is approved for normal and below listed maneuvers: • Steep turns not exceeding 60° bank • Lazy eights •...
  • Page 30 3.10 Engine operating speeds and limits Engine Model: ROTAX 912 ULS Engine Manufacturer: Bombardier-Rotax GMBH 73.5 kW (98.6 hp) Max Take-off: at 5800 rpm (max. 5 min.) 92.5 hp (69 kW) Max. Continuous: at 5500 rpm 71 hp (53 kW) Cruising: at 4800 rpm Max.

  • Page 31: Other Limitations

    3.11 Other limitations • No smoking on board of the aircraft ! • There are permitted Day VFR flights • Night VFR flights are permitted with installation of optional Night Lighting and Instruments Equipment and operation by an appropriately rated pilot. WARNING IFR FLIGHTS AND INTENTIONAL FLIGHTS UNDER ICING CONDITIONS ARE PROHIBITED!
  • Page 33 SECTION 4 4. WEIGHT AND BALANCE 4.1 Installed equipment list 4.2 Center of gravity range and determination 4.3 Permitted payload range Date of Issue: 04/2009 Revision: 3.0...

  • Page 34: Weight And Balance Information

    4. WEIGHT AND BALANCE INFORMATION This section contains weight and balance records and the payload range for safe operating of SportCruiser. 4.1 Installed equipment list • Rotax 912 ULS with airbox engine s/n: 565xxxx • Woodcomp KLASSIC 170/3/R propeller s/n: xxxx683R •...
  • Page 35 4.2 Center of gravity (C.G.) range and determination LSA category Max. take-off weight ........1 320 [lb] (600 [kg]) Center of gravity (C.G.) Operating C.G. range........27 to 38 [%] of MAC 15.94 to 22.44 [in] (405 to 570 [mm]) of MAC Empty weight C.G.
  • Page 36 WEIGHT & BALANCE REPORT C.G. Layout Date of Issue: 04/2009 Revision: 3.0...
  • Page 37 WEIGHT & BALANCE REPORT Empty Weight C.G. Check WEIGHT MOMENT ITEM [lb] [in] (WEIGHT x ARM) RIGHT MAIN = 308.88 31.18 9 630.88 WHEEL LEFT MAIN = 308.22 30.59 9 428.45 WHEEL = - 28.86 - 4 984.12 NOSE WHEEL = 172.70 negative arm Empty weight:...
  • Page 38 WEIGHT & BALANCE REPORT Forward C.G. Check WEIGHT MOMENT FORWARD C.G. [lb] [in] (WEIGHTxARM) EMPTY AIRCRAFT 789.80 -------- 14 075.21 PILOT 88.00 27.56 2 425.28 PASSENGER 27.56 BAGGAGE 51.58 COMPARTMENT - A BAGGAGE 70.87 COMPARTMENT - B WING LOCKERS 23.62 FUEL TANKS 180.60 7.09...
  • Page 39 WEIGHT & BALANCE REPORT Rearward C.G. Check WEIGHT MOMENT REARWARD C.G. [lb] [in] (WEIGHT x ARM) EMPTY AIRCRAFT 789.80 -------- 14 075.21 PILOT 190.00 27.56 5 236.40 PASSENGER 190.00 27.56 5 236.40 BAGGAGE 33.40 51.58 1 722.77 COMPARTMENT - A BAGGAGE 6.60 70.87...
  • Page 40 4.3 Permitted payload range SportCruiser Serial No. : xxSCxxx for 30 min 1 / 4 1 / 2 3 / 4 gauges together flight 15.1 22.6 30.1 US gal volume 28.5 85.5 litre 22.2 45.1 90.3 135.4 180.6 weight 10.1 20.5...
  • Page 41 SECTION 5 5. PERFORMANCE 5.1 Take-off and landing distances 5.2 Rate of climb 5.3 Cruise speeds 5.4 Fuel consumption 5.5 Airspeed indicator system calibration Date of Issue: 04/2009 Revision: 3.0...

  • Page 42: Performance

    5. PERFORMANCE The presented data has been computed from actual flight tests with the aircraft and engine in good conditions and using average piloting techniques. If not stated otherwise, the performance stated in this section is valid for maximum take-off weight and under ISA conditions. The performance shown in this section is valid for aircraft fitted with given ROTAX 912 ULS 98.6 [hp] (73.5 [kW]) engine and WOODCOMP KLASSIC 170/3/R propeller.

  • Page 43: Rate Of Climb

    5.1 Take-off and landing distances Take-off distances: Take-off distance over Take-off run distance RUNWAY 50 ft obstacle SURFACE CONCRETE GRASS Landing distances: Landing distance over Landing run distance RUNWAY 50 ft obstacle (braked) SURFACE CONCRETE GRASS 5.2 Rate of climb Conditions: Best rate of Rate of climb...

  • Page 44: Cruise Speeds

    5.3 Cruise speeds Engine Altitude speed knot knot 4200 4500 4800 1000 5000 5300 5500 5800 4200 4500 4800 3000 5000 5300 5500 5800 4200 4500 4800 5000 5000 5300 5500 5800 4200 4500 4800 7000 5000 5300 5500 5800 4200 4500 4800...
  • Page 45 5.4 Fuel consumption The table below shows fuel consumption, endurance and range Altitude 3000 US gal 29.86 Usable fuel quantity litre 4200 4500 4800 5000 5300 5500 Engine speed US gal/h 3,04 3.70 4.36 4.89 5.55 6.08 Fuel consumption 11.5 14.0 16.5 18.5...

  • Page 46: Airspeed Indicator System Calibration

    Airspeed indicator system calibration knot Date of Issue: 04/2009 Revision: 3.0...
  • Page 47 SECTION 6 6. EMERGENCY PROCEDURES 6.1 Engine failure 6.2 In-flight engine starting 6.3 Smoke and fire 6.4 Glide 6.5 Landing emergencies 6.6 Recovery from unintentional spin 6.7 Other emergencies Date of Issue: 04/2009 Revision: 3.0...

  • Page 48: Emergency Procedures

    6. EMERGENCY PROCEDURES This section provides checklists and amplified procedures for coping with various emergencies that may occur. Emergencies caused by aircraft or engine malfunction are extremely rare if proper pre-flight inspections and maintenance are practiced. However, should an emergency arise, the basic guidelines described in this section should be considered and applied as necessary to correct the problem.

  • Page 49: Smoke And Fire

    6.1.3 Engine failure in flight 1. Push control stick forward 2. Speed - gliding at 60 [knot] (70 [mph]) 3. Height - below 150 [ft] : land in take-off direction - over 150 [ft] : choose a landing area 4. Wind - find direction and velocity 5.
  • Page 50 6.3.2 Fire on ground with engine running Heating - close Fuel selector - close Throttle - full power Ignition switch - switch off Leave the airplane Extinguish fire by fire extinguisher or call for a fire-brigade if you cannot do it. 6.3.3 Fire during take-off Speed...

  • Page 51: Landing Emergencies

    NOTE Estimated time to pump fuel out of carburetors is about 30 [sec]. WARNING Do not attempt to re-start the engine! 6.3.5 Fire in the cockpit 1. Master switch - switch off 2. Heating - close 3. Use the fire extinguisher (if installed) 6.4 Glide An example of the use of gliding is in the case of engine failure 1.
  • Page 52 6.5.2 Precautionary landing A precautionary landing is generally carried out in the cases where the pilot may be disorientated, the aircraft has no fuel reserve or possibly in bad weather conditions. 1. Choose landing area, determine wind direction 2. Report your intention to land and land area location if a COMM is installed in the airplane.

  • Page 53: Other Emergencies

    6.6 Recovery from Unintentional Spin WARNING Intentional spins are prohibited! There is no an uncontrollable tendency of the airplane to enter into a spin provided the normal piloting techniques are used. Unintentional spin recovery technique: 1. Throttle idle 2. Lateral control ailerons neutralized 3.
  • Page 54 6.7.2 Carburetors icing The carburetors icing shows itself through a decrease in engine power and an increase of engine temperatures. To recover the engine power, the following procedure is recommended: 1. Carburetors heating - open 2. Throttle - set to 1/3 of power 3.
  • Page 55 SECTION 7 7. NORMAL PROCEDURES 7.1 Preflight check 7.2 Engine starting 7.3 Taxiing 7.4 Normal take-off 7.5 Climb 7.6 Cruise 7.7 Descend 7.8 Approach 7.9 Normal landing 7.10 Short field take-off and landing procedures 7.11 Balked landing procedures 7.12 Airplane parking and tie-down 7-10 Date of Issue: 04/2009 Revision: 3.0...

  • Page 56: Normal Procedures

    7. NORMAL PROCEDURES This section provides checklists and recommended procedures for normal operation of the aircraft. CAUTION Airspeeds values are valid for standard AVIATIK WA037383 pitot-static probe. These emergency procedures are valid for standard WOODCOMP KLASSIC 170/3/R three composite blade in ground adjustable propeller. 7.1 Pre-flight check Carry out the pre-flight inspection every day prior to the first flight or after airplane assembly.
  • Page 57 Inspection Check List − Ignition - OFF − Master switch - ON − Fuel gauge ind. - check fuel quantity − Master switch - OFF − Avionics - check condition − Control system - visual inspection, function, clearance, free movement up to stops - check wing flaps operation −...

  • Page 58: Engine Starting

    WARNING Physically check the fuel level before each takeoff to make sure you have sufficient fuel for the planned flight. CAUTION In case of long-term parking it is recommended to turn the engine several times (Ignition OFF!) by turning the propeller. Always handle by palm the blade area i.e.
  • Page 59 CAUTION The starter should be activated for a maximum of 10 [sec], followed by 2 [min] pause for engine cooling. As soon as engine runs, adjust throttle to achieve smooth running at approx. 2500 [rpm]. Check the oil pressure, which should increase within 10 [sec].
  • Page 60 7.3 Taxiing Apply power and brakes as needed. Apply brakes to control movement on ground. Taxi carefully when wind velocity exceeds 20 [knot]. Hold the control stick in neutral position. 7.4 Normal Take-off 7.4.1 Before take-off Altimeter - set Trim - set neutral position Control system - check free movement...
  • Page 61 7.5 Climb 1. Throttle - max. take-off power (max. 5800 [rpm] for max. 5 [min]) - max. continue power (5500 [rpm]) 2. Airspeed = 60 [knot] (70 [mph]) = 65 [knot] (75 [mph]) 3. Trim - trim the airplane 4. Instruments - oil temperature, oil pressure and CHT within limits CAUTION...
  • Page 62 7.8 Approach Approach airspeed - 60 [knot] (70 [mph]) 1. Throttle - as necessary 2. Wing flaps - extend as necessary 3. Trim - as necessary CAUTION It is not advisable to reduce the engine throttle control lever to minimum on final approach and when descending from very high altitude.
  • Page 63 7.9.4 Engine shut down 1. Throttle - idle 2. Instruments - engine instruments within limits - switch off except Instrument and Master 3. Switches 4. Ignition switch - turn key to switch off 5. Instrument switch - switch off 6. Master switch - switch off 7.
  • Page 64 7.12 Aircraft parking and tie-down Ignition switch - OFF Master switch - OFF Fuel selector - close Parking brake - use it as necessary (if installed) Canopy - close, lock as necessary Secure the airplane NOTE It is recommended to use parking brake (if installed) for short-time parking only, between flights during a flight day.
  • Page 65 SECTION 8 8. AIRPLANE GROUND HANDLING AND SERVICING 8.1 Servicing fuel, oil and coolant 8.2 Towing and tie-down instructions 8.3 Assembly and Disassembly 8.4 Aircraft inspection periods 8.5 Aircraft alterations or repairs Date of Issue: 04/2009 Revision: 3.0...
  • Page 66 8.1 Servicing fuel, oil and coolant See appropriate chapters in the ROTAX engine Maintenance and Operator’s manuals and SportCruiser Aircraft Maintenance and Inspection Procedures. 8.2 Towing and tie-down instructions 8.2.1...
  • Page 67 3. Close air vent 4. Close and lock canopy 5. Moor the aircraft to the ground by means of a mooring rope passed through the mooring eyes located on the lower surfaces of the wings and below rear fuselage. NOTE In the case of long term parking, especially during winter, it is recommended to cover the cockpit canopy or possibly the whole aircraft by means of a suitable tarpaulin attached to the airframe.
  • Page 68 In the case of long term parking, cover the canopy to protect the cockpit interior from direct sunshine. 8.3 Assembly and Disassembly Refer to the SportCruiser Maintenance and Inspection Procedures and the SportCruiser Aircraft Assembly photo manual. Date of Issue: 04/2009...
  • Page 69 8.4 Aircraft inspection periods Periods of overall checks and contingent maintenance depends on the condition of the operation and on overall condition of the airplane. Inspections and revisions should be carried out in the following periods, at least: after the first 25 flight hours after every 50 flight hours...
  • Page 71 SECTION 9 9. REQUIRED PLACARDS AND MARKINGS 9.1 Airspeed indicator range markings 9.2 Engine instruments markings 9.3 Operating limitations on instruments panel 9.4 Passenger warning 9.5 Prohibited maneuvers 9.6 Miscellaneous placards and markings Date of Issue: 04/2009 Revision: 3.0...

  • Page 72: Required Placards And Markings

    9. REQUIRED PLACARDS AND MARKINGS This section includes placards and instruments markings necessary for the safe operation of the aircraft. The airplane must be placarded with: • All circuit breakers • All switches • Choke: ON and OFF • Elevator trim: Nose UP and Tail DOWN •...
  • Page 73 9.1 Airspeed indicator range markings IAS value or range Significance Marking knot White 32-75 37-86 Flap Operating Range. Green 39-108 45-124 Normal Operating Range. Yellow Maneuvers must be conducted with 108-138 124-158 caution and only in smooth air. Red line Maximum speed for all operations.
  • Page 74 9.3 Operating limitation on instrument panel AIRSPEEDS: AIRSPEEDS: 138 kts 158 mph 88 kts 101 mph 75 kts 86 mph 32 kts 37 mph WARNING ! DO NOT EXCEED MAXIMUM TAKE-OFF WEIGHT: 600kg/1320lbs WARNING ! IFR FLIGHTS AND INTENTIONAL FLIGHTS UNDER ICING CONDITIONS ARE PROHIBITED Operating limitation in baggage space MAX.
  • Page 75 9.5 Prohibited maneuvers NO INTENTIONAL SPINS ! AEROBATICS PROHIBITED ! 9.6 Miscellaneous placards and markings FUEL CAPACITY: 57 Litres/15 US Gal. MOGAS RON 95/AKI 91 FUEL DRAIN AEROSHELL OIL SPORT PLUS 4 IDLE MUSIC IN Date of Issue: 04/2009 Revision: 3.0...
  • Page 76 PEDAL SETTING PEDAL SETTING CANOPY OPENED CANOPY CLOSED BAGGAGE COMPARTMENT - A BAGGAGE COMPARTMENT - B NO STEP NO PUSH Date of Issue: 04/2009 Revision: 3.0...
  • Page 77 If BRS rescue system is installed: - located on the both sides of fuselage between canopy and rear window - located in place rocket egress CAUTION The owner (operator) of this airplane is responsible for the readability of placards during the aircraft service life. Date of Issue: 04/2009 Revision: 3.0...
  • Page 79 SECTION 10 10. SUPPLEMENTARY INFORMATIONS 10.1 List of inserted supplements 10-2 10.2 Inserted supplements 10-4 Date of Issue: 04/2009 Revision: 3.0 10-1...

  • Page 80: Supplementary Informations

    10. SUPPLEMENTARY INFORMATIONS This section contains the appropriate supplements necessary to safely and efficiently operate the aircraft when equipped with various optional systems and equipment not provided with the standard airplane. 10.1 List of inserted supplements Suppl. Date Title of inserted supplement 04/2009 01/2007 Aircraft Flight Training Supplement...
  • Page 81 Suppl. Date Title of inserted supplement Date of Issue: 04/2009 Revision: 3.0 10-3...
  • Page 82 10.2 Inserted Supplemets Date of Issue: 04/2009 Revision: 3.0 10-4...
  • Page 83 Aircraft Flight Training Supplement The SportCruiser flying characteristics and behavior are similar as the other single engine aircraft. Following training procedure is applicable if the pilot is holder of PPL or LSA Pilot License. The training flight hours are recommended minimum and depends on the Flight Instructor if student pilot is ready to continue on in next training step.
  • Page 84 Flight training program - recommended Dual Solo Flight Training Procedure Flights hr/min Flights hr/min Check flight 30’ Pattern training flights up to 20’ 15’ 1000 ft AGL Pattern training flights up to 20’ 15’ 500 ft AGL Stall speed, 45°turns, side slips 30’...
  • Page 85 Flight Training Procedure - description 1. Check flight – Student Pilot will fly the airplane in local flight, instructor is giving advises as necessary. 2. Pattern training flights up to 1000 feet AGL - high pattern procedures, instructor is giving advises as necessary. 3.
  • Page 87 AIRCRAFT DESCRIPTION Registration : : xxSCxxx Serial Number This Supplement must be contained in the Pilot Operating Handbook during operation of the airplane. Information contained in this Supplement add or replace information from the basic Pilot Operating Handbook in the further mentioned parts only. Limitations, procedures and information not mentioned in this Supplement are contained in the basic Pilot Operating Handbook.
  • Page 88 2. AIRPLANE AND SYSTEMS DESCRIPTION 2.2 Engine Coolant Type of coolant used in engine: Specification : ASTM D 3306, VW TL 774C Mixture ratio coolant / water : 50/50 [%] Max. coolant temperature : 248 [ 120 [ °F] ( °C]) 2.5 Oil Type of oil used in engine:...
  • Page 89 Weight & balance report – Blank form WEIGHT MOMENT ITEM [lb/kg] [in/mm] (WEIGHT x ARM) RIGHT MAIN WHEEL LEFT MAIN WHEEL NOSE WHEEL negative arm Empty weight: C.G.= Aircraft moment: [in/mm] COMPUTED C.G. EMPTY [lb/kg] [%]MAC NOTE: EMPTY WEIGHT INCLUDING OIL, COOLANT AND HYDRAULIC FLUID. MAXIMUM FUEL QUANTITY IN WING TANKS (180.62LB =30.1US GAL / 82.1KG=114L) IS USED FOR MOST FORWARD C.G.CALCULATION.
  • Page 90 WEIGHT MOMENT AIRCRAFT C.G. [lb/kg] [in/mm] (WEIGHTxARM) EMPTY AIRCRAFT -------- PILOT 27.56 PASSENGER 27.56 BAGGAGE 51.58 / 1 310 COMPARTMENT - A BAGGAGE 70.87 / 1 800 COMPARTMENT - B WING LOCKERS 23.62 FUEL TANKS 7.09 TOTAL [lb/kg] C.G. [in/mm] TAKE-OFF WEIGHT [lb/kg] [%] MAC...
  • Page 91 Permitted payload range – Blank form SportCruiser Serial No. : for 30 min gauges together 1 / 4 1 / 2 3 / 4 flight 15.1 22.6 30.1 US gal volume 28.5 85.5 litre 22.2 45.1 90.3 135.4 180.6 weight 10.1...
