Summary of Contents for W.E.ST. PID-131-U

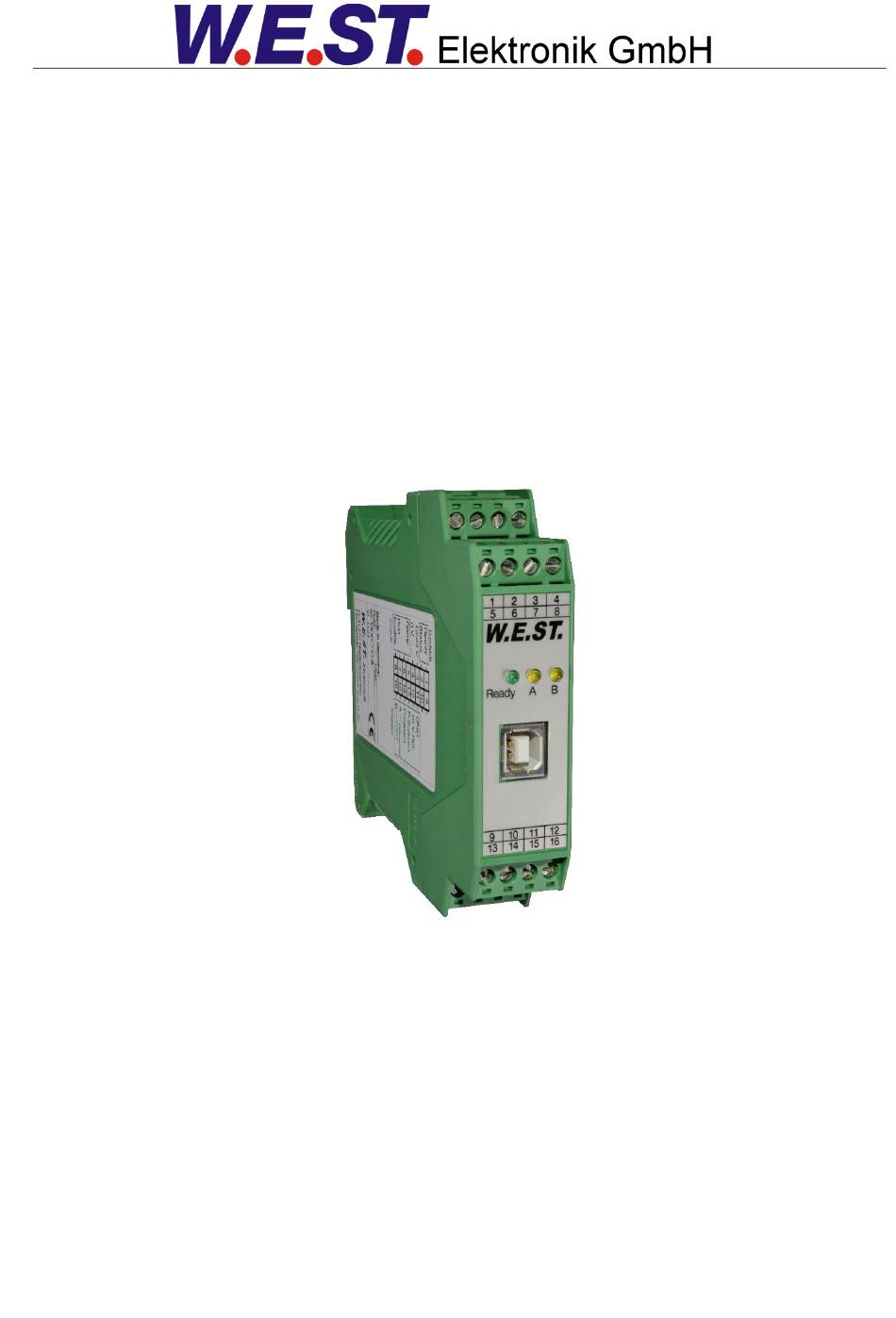

- Page 1 Technical Documentation PID-131-U Standard PID-Controller...
-
Page 2: Table Of Contents
SIGNAL:U (Output type and polarity) ....................26 Special commands ............................. 27 TS (Sample time) ..........................27 AINMODE (Input scaling mode) ......................27 AIN (Free analogue input scaling) ..................... 28 PROCESS DATA (Monitoring) ........................29 Page 2 of 32 PID-131-U-2030 30.12.2015... - Page 3 W.E.ST. Elektronik GmbH Appendix ................................30 Failure monitoring ............................30 Troubleshooting ............................30 Description of the command structure ......................31 Notes ................................. 32 Page 3 of 32 PID-131-U-2030 30.12.2015...
-
Page 4: General Information
1 General Information 1.1 Order number - with analogue ±10 V differential output or 4… 20 mA output and analogue sensor PID-131-U-2030 interface 1.2 Scope of supply To the scope of supply belongs the module including the terminal blocks which are part of the housing. -
Page 5: Symbols Used
We reserve the right to make technical modifications due to further development of the product described in this manual. The technical information and dimensions are non-binding. No claims may be made based on them. This document is protected by copyright. Page 5 of 32 PID-131-U-2030 30.12.2015... -
Page 6: Safety Instructions
The module may not be used in an explosive environment. To ensure adequate cooling the ventilation slots must not be covered. The device must be disposed of in accordance with national statutory provisions. Page 6 of 32 PID-131-U-2030 30.12.2015... -
Page 7: Characteristics
Universal output signal for control elements 0...10V, ± 10 V, 4… 20 mA or 4… 20mA with a virtual zero at 12mA REMOTE CONTROL mode via serial interface Failure monitoring Adjustments via USB interface Page 7 of 32 PID-131-U-2030 30.12.2015... -
Page 8: Compatibility
2. Simplified and intuitive parameterization of the analogue inputs and sensors 3. Compatibility mode of the input scaling (AINMODE), if necessary 4. Adaptation of the output signal (current or voltages) and the polarity with the command SIGNAL:U (the POL commando is removed) Page 8 of 32 PID-131-U-2030 30.12.2015... -
Page 9: Device Description
Made in Germany Date: Add.: W.E.ST. Elektronik D-41372 Niederkrüchten Homepage: http://www.w-e-st.de Typenschild und Anschlussbelegung Type plate and terminal pin assignment W.E.ST. LEDs Ready Klemmblöcke (steckbar) Terminals (removable) Interface 9 10 11 12 14 15 16 Page 9 of 32 PID-131-U-2030 30.12.2015... -
Page 10: Use And Application
Switched inductances (relays and valve coils) which are connected to the same power supply must always be provided with appropriate overvoltage protection directly at the coil. Page 10 of 32 PID-131-U-2030 30.12.2015... -
Page 11: Typical System Structure
The function of input PIN5 depends on the parameterization. Either the ramp generator or the integrator can be switched on and off with this input. Page 11 of 32 PID-131-U-2030 30.12.2015... -
Page 12: Commissioning
Activating START Take safety measures to prevent personal injury and damage. The control can now be driven by the anlogue inputs. Now optimize the controller parameters according to your application and your Optimize controller requirements. Page 12 of 32 PID-131-U-2030 30.12.2015... -
Page 13: Technical Description
Monitoring of the control deviation depending on the CDWIN parameter, the status output will be deactivated, if the control deviation is higher than the adjusted per- mitted range. control deviation is within the permitted range. OFF: control deviation is out of the permitted range. Page 13 of 32 PID-131-U-2030 30.12.2015... -
Page 14: Led Definitions
Both yellow LEDs flash oppositely every 1 s: The non-volatile stored parameters are YELLOW A + inconsistent! To acknowledge the error, data has to be saved with the SAVE command or YELLOW B the corresponding button in the WPC Page 14 of 32 PID-131-U-2030 30.12.2015... -
Page 15: Circuit Diagram
W.E.ST. Elektronik GmbH 4.3 Circuit diagram Page 15 of 32 PID-131-U-2030 30.12.2015... -
Page 16: Typical Wiring
A : 24 V Versorgung B : 0 V Versorgung C : GND oder Enable PIN 12 PIN 15 D : + Differenzeingang PIN 16 E : - Differenzeingang F : Diagnosesignal PE - Page 16 of 32 PID-131-U-2030 30.12.2015... -
Page 17: Technical Data
-20… 60 Temperature range [°C] -20… 70 Storage temperature [°C] Humidity < 95 (non-condensing) Connections USB-B 4 x 4-pole terminal blocks PE: via the DIN mounting rail EN 61000-6-2: 8/2005 EN 61000-6-4: 6/2007 ; A1:2011 Page 17 of 32 PID-131-U-2030 30.12.2015... -
Page 18: Parameters
0,1 ms D gain filter C2:FF 0,01 % Feed forward C2:I_LIM 2500 0,01 % Integrator limitation C2:I_ACT 2500 0,01 % Integrator activation threshold C2:PT1_P 0,01 % PT1 gain C2:PT1_T1 0,1 ms PT1 time constant Page 18 of 32 PID-131-U-2030 30.12.2015... - Page 19 Sample time of the control loop Scaling mode AINMODE EASY Input scaling mode AIN:X 1000 Free scaling of the analogue inputs. Gets activated when AINMODE is switched over to MATH. AIN:W 1000 0,01 % Page 19 of 32 PID-131-U-2030 30.12.2015...
-
Page 20: Basic Parameters
Auto reset mode. All monitoring functions are active. If the failure does not exist anymore, the mod- ule automatically resumes to work. Normally the monitoring functions are always active because otherwise no errors are detectable via the READY output. Deactivating is possible mainly for troubleshooting. Page 20 of 32 PID-131-U-2030 30.12.2015... -
Page 21: Pin5 (Function Of Pin 5)
This is necessary if using valves without error detection for signals lower than 4 mA. If the valve has an error detection it goes into a defined position after switching of the output. Page 21 of 32 PID-131-U-2030 30.12.2015... -
Page 22: Input Signal Adaptation
Since this is a general PID controller, the working range of the system is defined as 100% The deactivation can be used to deactivate the velocity (speed) input PIN_9/10 (the VELO value is active). Page 22 of 32 PID-131-U-2030 30.12.2015... -
Page 23: Using The Commands Signal:x, N_Range:x And Offset:x
Parameters Unit Group RAp:i p= 1|2(Parameter set) i= UP|DOWN x= 1… 600000 Ramp function for the 1 and 2 quadrant. The ramp time is adjusted separately for rising and falling input signals. A:DOWN A:UP Page 23 of 32 PID-131-U-2030 30.12.2015... -
Page 24: C (Pid Control Settings)
4.. 20 mA x Istwert- LIM:S LIM:I 0.. 10 V skalierung 4.. 20 mA C:T1 Druckregler P-Verstärkung I-Anteil D-Anteil C:T1 D-Anteil Filter C:FF Vorsteuerung LIM:I Integratorbegrenzung LIM:S Integratoraktivierungsschwelle C:PT1_P PT1 Verstärkung C:PT1_T1 PT1 Zeitkostante Page 24 of 32 PID-131-U-2030 30.12.2015... -
Page 25: Output Signal Adaptation
ATTENTION: If the MIN value is set too high, it influences the minimal pressure, which cannot be adjusted any longer. In extreme case, this causes to an oscillating at small input values. MAX:A MIN:A Input MIN:B TRIGGER MAX:B Page 25 of 32 PID-131-U-2030 30.12.2015... -
Page 26: Signal:u (Output Type And Polarity)
An output current of less than 4 mA indicates that an error occurred or the module is not enabled. It is important to ensure that the connected valve closes at currents below 4mA. (If this is not the case, the EOUT command should be used to generate a defined output signal) Page 26 of 32 PID-131-U-2030 30.12.2015... -
Page 27: Special Commands
Attention: This command does not show up in the parameter list in WPC. It has to be entered manu- ally in the terminal window. After any change of AINMODE, module default data should be applied (by pressing the corresponding button in WPC300) Page 27 of 32 PID-131-U-2030 30.12.2015... -
Page 28: Ain (Free Analogue Input Scaling)
2000 C signal (16 mA = 20 mA – 4 mA) will be gained to 100 % (20 mA). Each of this parameterization for 4… 20 mA is setting the range to 0… 100 %. Page 28 of 32 PID-131-U-2030 30.12.2015... -
Page 29: Process Data (Monitoring)
Parameters Unit Command input signal Command value Actual value Control deviation Controler output Output control signal The process data are the variables which can be observed continuously on the monitor or on the oscilloscope. Page 29 of 32 PID-131-U-2030 30.12.2015... -
Page 30: Appendix
The control circuit polarity is incorrect. The polarity can be changed with the ENABLE and RUN are SIGNAL:U command or by reversing the connections to PIN 15 and PIN 16. active; the READY LED is on, the system moves to an end position. Page 30 of 32 PID-131-U-2030 30.12.2015... -
Page 31: Description Of The Command Structure
Examples: nnnn = “MIN”, i = “A” and x = “2000” MIN:A 2000 nnnn = „OFFSET“ and x = „50“ OFFSET 50 nnnn = “C”, i = “IC” and x = “2000” C:IC 2000 Page 31 of 32 PID-131-U-2030 30.12.2015... -
Page 32: Notes
W.E.ST. Elektronik GmbH 7 Notes Page 32 of 32 PID-131-U-2030 30.12.2015...
