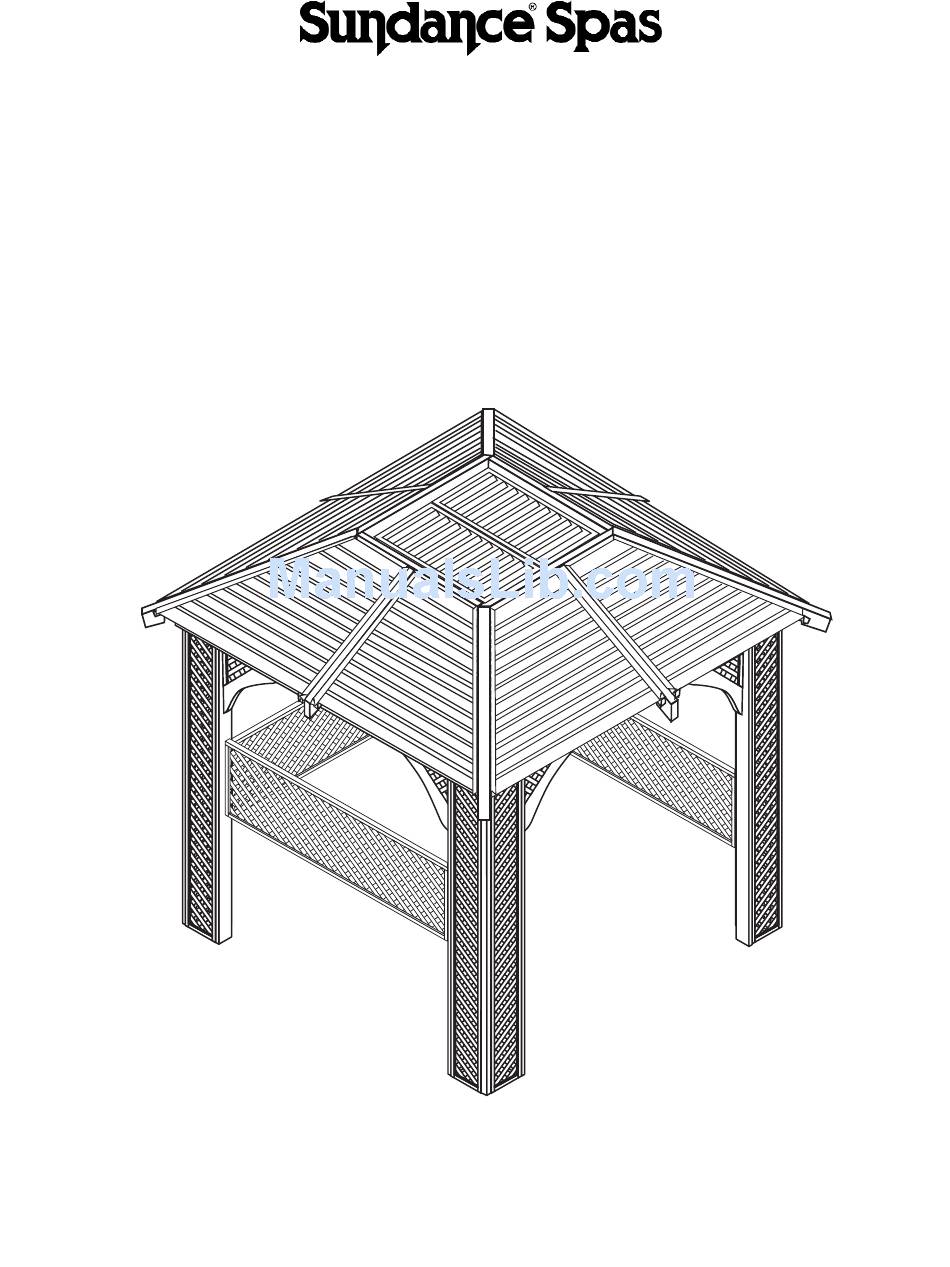

Installation Instructions WillowWood Fits models 7’7” x 7’7” and smaller. Accommodates the Cover Breeze cover lift. © 2001 Sundance Spas, Inc Document Number 6530-188, Rev. B... - Page 2 Installation Instructions How to Use This Manual Thank you for purchasing a Sundance Spas Gazebo. This manual will provide easy to follow, step-by-step instructions for assembly and installation of your gazebo. Please complete the assembly steps in the order they are presented in this manual.
- Page 3 NOTE: Inner and Outer Sway Braces are to be attached to the inside of the Tie Plates. Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 4 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Packaged b b y: _ _ ________________________ Inspected b b y: _ _ _________________________ Sundance Spas Gazebos Installation Instructions WillowWood Description Corner Lattice Panels Corner Uprights (2" x 2") Uprights (2" x 3") Headers (2" x 4") Tie Plates Roof Box Headers (45 °)
- Page 5 Step 4 Choose attached 2”x 3” uprights. Attach a 2"x2" Corner Upright [2] to the outside edge of each lattice panel with four 2-1/2" screws as shown in Diagram 4. Sundance Spas Gazebos Installation Instructions WillowWood four lattice panels with...
- Page 6 Repeat Steps 2 through 6 with the remaining three wall sections. Pro Tip: You will need an assistant for the following steps. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 5 Diagram 6 End of header flush with inside of lattice frame...
- Page 7 Join the wall sections by attaching the corner upright to the wall section with four 2-1/2" screws as shown in Diagram 10. Repeat 9 and 10 for the two remaining wall sections. Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 8 Pro Tip: Take your time on this step and do it right. The time you take to square the walls at this step will save you time and effort during roof assembly. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 11 Diagram 12 properly,...
- Page 9 Plates using two 2-1/2" screws through the pre-drilled holes, as shown in Diagram 14. Step 15 Attach the large sway brace to the Tie Plates using two 2-1/2" screws through the pre-drilled holes, as shown in Diagram 15. Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 10 2-1/2" screws as shown in Diagram 17. Move to the next corner and repeat the procedure until all four corners are secured. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 16 Align this corner first...
- Page 11 Square the roof box assembly by measuring diagonally between opposite corners as shown in Diagram 20. If the measurements are equal, the roof box is square. equal, re-align the roof box and measure again. Sundance Spas Gazebos Installation Instructions WillowWood If the measurements are not...
- Page 12 Pro Tip: You will need an assistant for this next step. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 21 Hip Rafters attach at 4 corners and must be flush...
- Page 13 Grasp the roof header box. Lift the assembly and carefully flip it over. Place the roof assembly on top of the gazebo wall as shown in Diagram Sundance Spas Gazebos Installation Instructions WillowWood The "Y" brackets are...
- Page 14 Diagram 28. Repeat for remaining three hip rafters. The mid-rafters will require "Tee" Brackets for support and they will attach later. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 26 Attach corner bracket only to the hip rafter Diagram 27...
- Page 15 2-1/2" screws as shown in Diagram 30. Repeat for the remaining three mid rafters. Pro Tip: Do not attach the BOTTOM of the mid rafter to the tie plate at this time. Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 16 Then attach it with three 1-5/8" screws. Now, push the opposite side until the top is aligned with the header. Place one 1-5/8" screw into the mid rafter. This will re-align the rafter sys- tem. Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 17 Diagram 34. See the inset of Diagram 34 for exact placement. "Tee" brackets are pre-drilled and attach with eight 1-5/8" screws. "Tee" Bracket attaches to mid-rafter & tie plate as shown Sundance Spas Gazebos Installation Instructions WillowWood...
- Page 18 Attach the privacy panel to the 2x3 upright using two 2-1/2" screws. Attach the remain- ing two privacy panels in the same manner. Sundance Spas Gazebos Installation Instructions WillowWood Diagram 35 Diagram 36 Align bottom of panel...
-
Page 19: Maintenance
UV (sun) exposure, extreme moisture, etc. In general, wooden surfaces should be cleaned, lightly sanded and restained every six months. Metal roofs should be cleaned with water and a soft cloth only. Sundance Spas Gazebos Installation Instructions WillowWood... - Page 20 Sundance Spas, Inc. 14525 Monte Vista Ave, Chino, CA 91710/U.S.A.; Phone: (909) 606-7733, Fax: (909) 606-0195, Website: http://www.sundancespas.com 6530-188, Rev. B © 2001 Sundance Spas, Inc. Printed in U.S.A.
