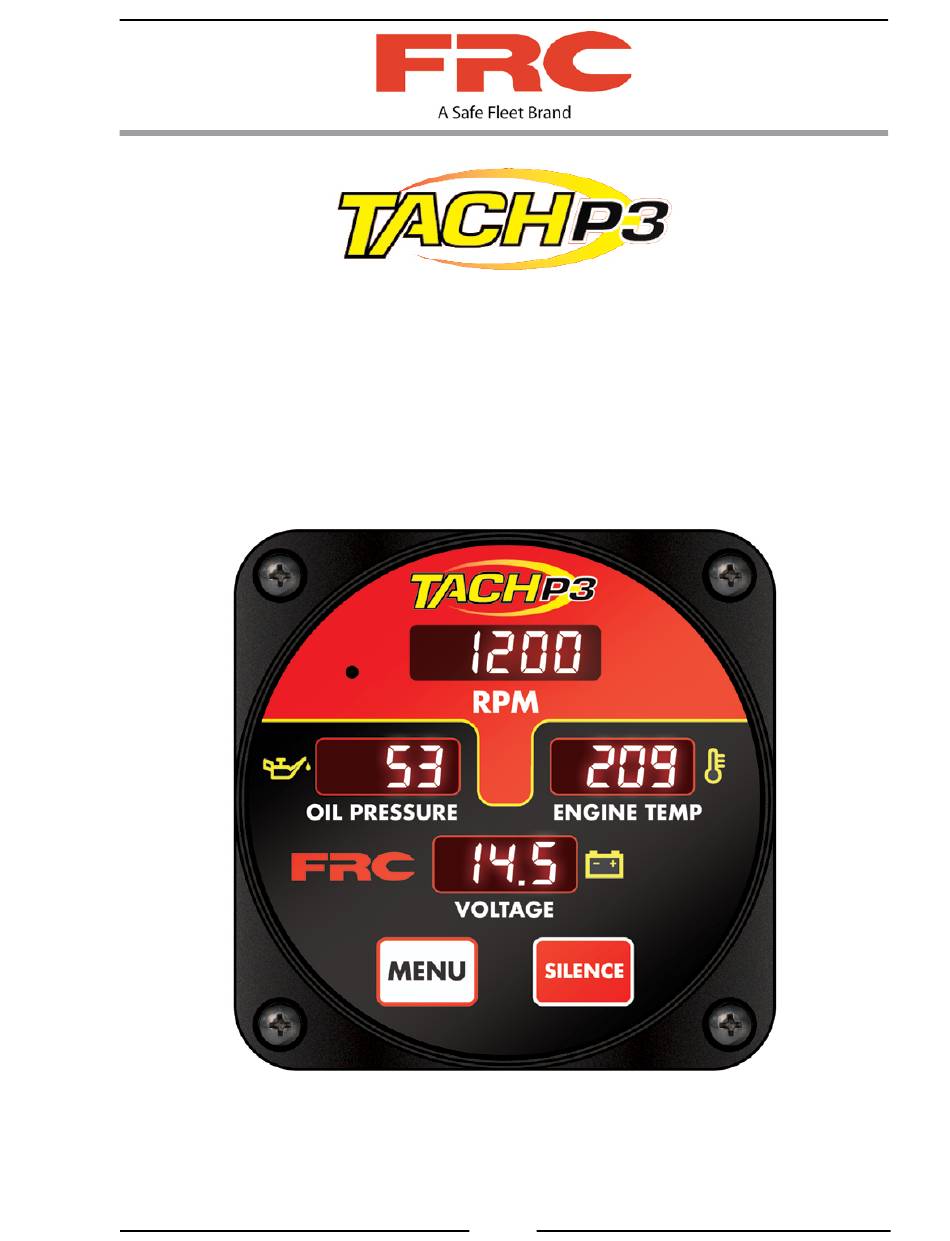

- Page 1 TPA600 Rev170623 Document Number: XE-TPA6PM-R0A ENGINE MONITORING DISPLAY MODEL: TPA600 FIRE RESEARCH CORPORATION www.fireresearch.com 26 Southern Blvd., Nesconset, NY 11767 TEL 631.724.8888 FAX 631.360.9727 TOLL FREE 1.800.645.0074...
-
Page 2: Table Of Contents
TPA600 Rev170623 CONTENTS Table of Contents CONTENTS ........................ 2 INTRODUCTION ...................... 3 Overview ........................ 3 Features ........................3 Specifications ......................3 GENERAL DESCRIPTION ..................4 Components ......................4 Controls and Indicators ..................4 INSTALLATION ......................6 Install Display Module................... 6 Install Buzzer ...................... -
Page 3: Introduction
TPA600 Rev170623 INTRODUCTION Overview The Engine Monitoring Display is an all-in-one instrument panel with integrated monitoring and display capabilities that saves valuable pump panel space. It combines four different instruments in one waterproof unit. It provides both audible and visual warning alarms if specified parameters go outside of set limits. -
Page 4: General Description

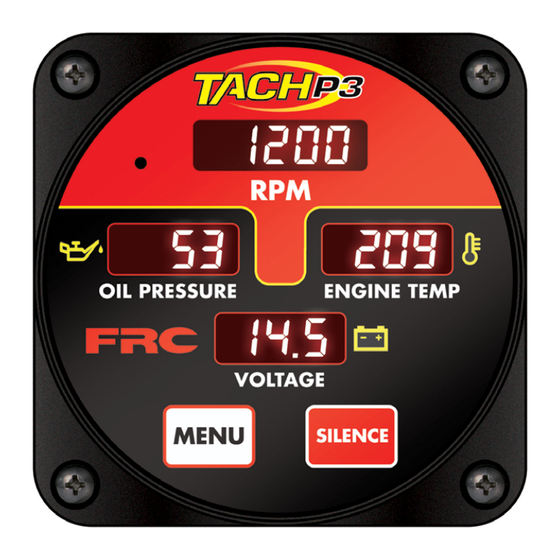

TPA600 Rev170623 GENERAL DESCRIPTION The Engine Monitoring Display receives all input from the J1939 CAN bus. Components The Engine Monitoring Display consist of the following components: Display Module Buzzer Controls and Indicators All controls and indicators are located on the front of the control module. Refer top Operation and Programming Sections for more information. - Page 5 TPA600 Rev170623 Display OIL PRESSURE ENGINE TEMP Display Display VOLTAGE Display MENU SILENCE Button Button Figure 1. Controls and Indicators...
-
Page 6: Installation
TPA600 Rev170623 INSTALLATION The Engine Monitoring Display receives engine RPM, oil pressure, coolant temperature, and voltage information over the J1939 CAN bus from the engine ECM. (Refer to Wiring Section.) Install Display Module 1. Measure and mark mounting location for display module cable and mounting screw holes. - Page 7 TPA600 Rev170623 1.25" Diameter Hole Mounting holes are clearance or tapped for 10-32 screws. 3.5" 3.5" 2.0" 4.2" 0.7" 4.2" Figure 2. Display Module Mounting Dimensions...
-
Page 8: Operation
TPA600 Rev170623 OPERATION The Engine Monitoring Display shows crucial engine information to the pump operator. Visual Alarm When a monitored input exceeds the set warning level the display flashes. This visual alarm cannot be reset or cancelled manually. The alarm stops automatically when the monitored input is at a normal level. - Page 9 TPA600 Rev170623 Table 1. Error and Fault Warning Codes DISPLAY DESCRIPTION No Engine Data Received Oil Pressure Problem Engine Temp Problem High Battery Voltage Low Battery Voltage High Transmission Temperature Low Oil Pressure High Engine Coolant Temperature...
-
Page 10: Programming
TPA600 Rev170623 PROGRAMMING To access the program functions, to view and change parameter settings, a password is entered. The code for the Engine Monitoring Display is 2222. Note: To exit the programming mode press the SILENCE and MENU buttons together. (The program mode times out after ten seconds if no buttons are pressed.) Program Access 1. - Page 11 TPA600 Rev170623 Table 2. Program Functions CODE DESCRIPTION OPTIONS and NOTES FACTORY DEFAULT Units of measure Select PSI and °F PSI, kPa, Bar °F, °C Low oil pressure Set Value 8 PSI warning (Set to 0 to synchronize warning with dash light.) High engine temperature Set Value 230 °F...
-
Page 12: Wiring
TPA600 Rev170623 WIRING The following figures include the schematics, wiring diagrams, block diagrams, and cables for the Engine Monitoring Display. Connectors and Cables The Engine Monitoring Display receives engine RPM, oil pressure, coolant temperature, and transmission temperature data over the J1939 CAN bus from the ECM. 6 Pin Connector/Cable Wire Color Description +12/24 VDC...
