Summary of Contents for Fasep RGU300.ECO

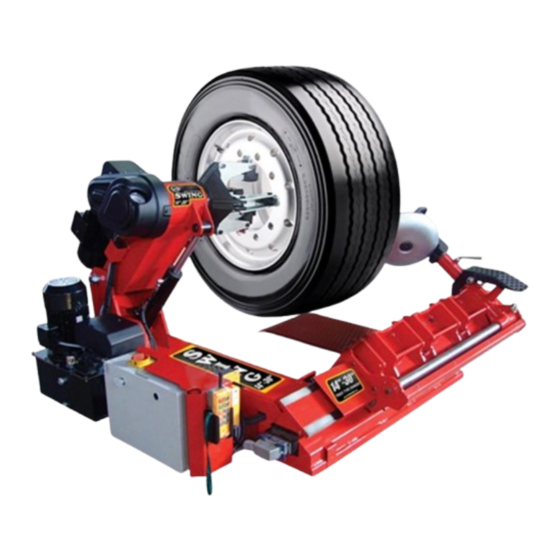

- Page 1 “ English INSTRUCTIONS BOOKLET Automatic Truck Tyre Changer Machine RGU300.ECO...
- Page 2 The maker cannot be held responsible for eventual damage casued by improper,erroneous or unacceptable use. IMPORTANT RGU300.ECO TYPE may be operated only by suitably trained personnel. Any work on the electrical , hydraulic , pneumatic systems must be conducted only by profesionally qualified personnel.
- Page 3 CLAUSE 3 PARTS OF THE MACHINE Fig.2 – LOCKING JAW Fig.1 – FOUR-JAW UNIVERSAL CHUCK The Jaw was designed to give different With two rotation speeds in boot directions. gnopping possibilites. Pressure adjustable hydraulic opening and closing. Fig. 4 – REDUCTOR GROUP Fig.3 –RGU300.ECOTYPE 14”...
- Page 4 CLAUSE 4 INTRODUCTION This manual is designed for service personnel, skilled in the use of these machines and the staff who makes the routine maintenance of the machine. Before every operation of this machine, must be read the operating instructions. This guide;...
- Page 5 CLAUSE 5 SAFETY ALL WORK ON THE ELECTRICAL SYSTEM, INCLUDING MINOR OPERATIONS , MUST BE CARRIED OUT BY PROFESSIONALLY QUALIFIED PERSONNEL Check that the mains supply is the same as that shown on the registration plate. Connect the cable to a plug that conforms with European norms or to the norms of the country in which the machine used.
- Page 6 CLAUSE 6 SAFETY Only trained operators should use this machine. Failure to read and observe all warnings and instructions should cause injury or death Before operating read and understand all warnings and the instruction manual provided with this truck tyre changer.
- Page 7 CLAUSE 7 İNSTALLATION Fig.12 Fix the Machine from its connection holes (it is shown figure :12) on the ground by help of steel wall plug. This function must be done to machine to Work safely and longevously. If the connection fumction of the machine is not done, It can causes undesirable results such as the tire cutting, Rim Scratch, mechanical damages on the machine.
- Page 8 CLAUSE 8 LOCATION SAFE DISTANCE: For the safe and ergonomic use of the machine it is advisable to locate it so as to allow work, in conditions of complete safety. When the machıne workıng or the machıne stopped, anybody except the operator doesn’t apporoach to the machıne and the each sıdes of the machıne must be empty at least 1,5 m.
- Page 9 CLAUSE 9 OPERATION AND USE ( DEMONTAGE ) The air of the tires must be taken before it is inserted into the machine. Empty the air in the tire completely attached to the machine, and after starting the removal. ...
- Page 10 OPERATION AND USE After separating the inner and outer heel from the edge, the foot arrangement is first coated on the outer heel. Lever mounted in the top of the foot, and the tire, so that it can be pushed outwards. Tires rotated clockwise, and slowly outward leg assembly is towed (Figure 17).
- Page 11 CLAUSE 10 OILING PERIODS “ Reductor gear montly lubricated Montly lubricated Weeekly lubricated Detachable cleaning weeekly in arm after the thin with grease lubricated Cleaned on a weekly basis After the thin with grease lubricated Fig.19 Points to be considered, by Setting the machine, or servicing; 1)Be sure that machine is not working.
- Page 12 CLAUSE 11 ROUTINE MAINTENANCE DAILY CHECK THE CABLE OF THE MACHINE BEFORE THE RUNNING. CHECK THE MACHINE IF THE MACHINE IS CLEAN AND MAINTENANCE IS COMPLETED. CHECK THE HYDRAULIC CYLINDER AGAINST THE AIR LEAKAGE. WEEKLY CHECK IF THE DAILY MAINTENANCE IS DONE SYSTEMATICALLY. CHECK IF THERE IS ANY OIL LEAKAGE ON THE CYLINDEROF THE BEAD LIFTING.
- Page 13 CLAUSE 12 TECHNİCAL ASSİSTANCE AND WARRANTY THE MACHINE IS GURANTEED (1 YEARS) ; FOR ANY MACHINE MAFUNCTIONS CONSULT THE SECTION “MALFUCTIONS: CAUSES AND POSSIBLE REMEDIES” . ANY OTHER MALFUNCTIONS MUST BE CHECKED BY PROFESSIONALLY QUALIFIED PERSONNEL. IN ALL CASES CONTACT THE ASSISTANCE SERVICE OF HATCO. FOR PROMPT ASSISTANCE IT IS IMPORTANT AT THE TIME OF THE CALL TO SPECIFY THE MACHINE MODEL, THE PRODUCTION NO.
- Page 14 CLAUSE 13 CONTROL BUTON CIRCUIT PLAN ( 3 PHASES ) HYDRAULIC MOTOR MOVEMENT MOTOR EMERGENCY STOP CONTROL ARM...
- Page 15 CLAUSE 14 DEMONTAGE PLAN...
- Page 18 CLAUSE 15 SPARE PARTS LIST FOR RGU300.ECO TYPE DESCRİPTİON CODE NO 83 01 000-EKO Lower Body Group 83 03 000 Reductor Group 83 03 001 Reductor Body Reductor Connectıon Group 83 03 013 01 0275 18-B14 Engine 01 0029 21 Reductor Chaın Bottom Protectıon...
- Page 19 01 0130 014-020-1 Washer 01 0065 080 10.9 Screw 01 0117 014 Fiber Nut Pullıng Lama 53 06 012 Screw” 01 0072 016 Spın Foot Connectıon Pın 53 06 015 Shaft Rıng 01 0139 014 Pullıng Lama Pın Connectıon 53 06 014 Squeezıng Foot 53 06 016 Short Wheel Squeezıng Teeth...
- Page 20 Body Fıttıng 01 0014 176 01 0131 1-4 Copper Washer 01 0156 02 Valve 01 0024 014-3 O-Ring 53 09 007 Pressure Regulating Valve Group 53 09 002 Pressure Adjustment Screw 01 0115 010 01 0024 017-2.5 O-Ring Bottom Transıtıon 53 09 005 01 0024 009-2 O-Ring...
- Page 21 Changıng Screw Pullıng Sprıng 01 0031 52 Sprıng Connectıon Plate 33 17 006 53 14 003 Washer Changıng Screw 53 14 002 01 0115 014 Set Dıstance Screw 33 17 007 Changıng Screw 33 17 003 Roller Shaft Connectıon Group 53 13 000 83 02 000-EKO Tyre Trolley...
