Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S

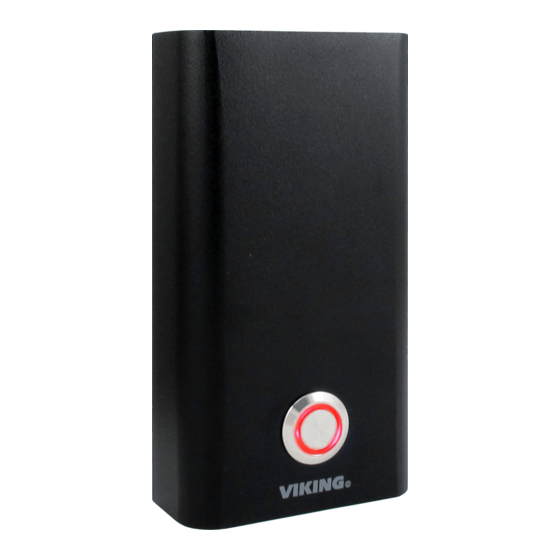

Panic Button with User Recorded ID Message
Model PB-3 is an Emergency Phone Panic Button designed to mount under a desk or
countertop and provide a quick and reliable way to make a silent analog emergency
call. The called party can silently monitor the situation or engage in two-way handsfree
communication by entering a touch tone "#".
The PB-3 is designed to connect to any standard analog telephone line, analog phone
system station or FXS port. All programming parameters, including phone numbers
and location numbers, are stored in non-volatile memory. The unit is telephone line
powered, requiring no batteries or external power, and is compatible with common
Central Station Monitoring equipment.
The PB-3 dials up to 5 emergency numbers, as well as 2 central station numbers, and
can be easily programmed from any touch tone phone. The Panic Button can be
programmed to automatically deliver a digital announcement identifying the location of
the emergency call, and an optional DTMF touch tone code may also be delivered.
The blue LED integrated into the push button will light, indicating that an emergency
call is in progress.
Features
• Automatic Noise Canceling (ANC) feature for clear audio in
noisy environments
• Non-volatile digital voice announcer with 16 seconds of voice
memory
• Discreet compact design
• Built-in microphone for silent monitoring
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Non-volatile memory (no batteries required)
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or no-answer
• Hangs up on CPC, silence, busy signal, dial tone or time-out
• Programmable to auto-answer on incoming calls
• Optional ID announcement
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Optional PB-100 Polling System available (DOD 232)
• Optional BLK-4-EWP strobe light kit available (DOD 654)
• Optional LC-6 Six Port Concentrator available (DOD 245)
• Also available with VoIP interface, see model PB-3-IP for more
information (DOD 241)
PRODUCT MANUAL
• K-12 classrooms
• College classrooms
• Courtrooms
• Bank tellers
• Silent holdup alarm dialer
Power*: Telephone line powered. Minimum 24V DC talk battery
voltage, with a minimum loop current of 20mA loop. Loop current
may be boosted on low current lines with a Viking model TBB-1B
Talk Battery Booster (DOD 632).
Dimensions: See Installation and Specifications
Operating Temperature: -15° F to 130° F (-26° C to 54° C)
Humidity: 5% to 95% non-condensing
*CAUTION - When installing on an analog extension of a phone
system: Some phone systems do not conform to analog telecom
standards and might not be compatible with the PB-3 emergency
phone. For a detailed description of the telephone line
specifications required for the PB-3 phone, see DOD 869.
Emergency Phone
Panic Button
Applications
• Gas stations
• Motel reception desks
• Convenience stores
• All night restaurants
Specifications
www.VikingElectronics.com
Information: 715-386-8861
PB-3
November 7 , 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viking PB-3
Summary of Contents for Viking PB-3
- Page 1 Central Station Monitoring equipment. The PB-3 dials up to 5 emergency numbers, as well as 2 central station numbers, and can be easily programmed from any touch tone phone. The Panic Button can be programmed to automatically deliver a digital announcement identifying the location of the emergency call, and an optional DTMF touch tone code may also be delivered.
- Page 2 IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges. **** Analog Rear View of a PB-3 Emergency Phone PCB PABX/KSU Station C.O. Line *** Gel-Filled Butt...
-
Page 3: Accessing The Programming Mode
When finished programming, move DIP switch 3 back to the ON position (see section L). Warning: Failure to do step 5 above will cause the PB-3 phone to call Viking Technical Support instead of your programmed emergency number. See Section L, Assisted Programming. -
Page 4: Speed Dial Numbers
(memory location #15) With this feature enabled (1#15) the PB-3 will automatically transmit the DTMF ID number on all inbound calls. Transmission speed is 50msec on/off. If a # is entered within 5 seconds of the ID transmission this will force the unit to... -
Page 5: Recording The Announcement
When all of the programmed phone numbers have been dialed, the lap counter is incremented and the dialing process repeats. When the lap counter has been met, the dialing process stops and the PB-3 phone hangs up. Factory Setting: Disabled H. - Page 6 9 minutes (Touch Tones 1 - 9). Program 0 in this location to disable the call length time out. With the call length disabled, the PB-3 phone must rely on a CPC signal, busy signal, silence or return to dial tone to hang-up. Use chart below - center.
-
Page 7: Identification Number
The code can be 1 – 6 digits in length and cannot contain a “*” or “#” or match the numbers used for the security code. Simply call the PB-3 emergency phone, the unit will automatically answer the line and output one beep. - Page 8 When the PB-3 emergency phone is in the “Central Station Mode”, it is best to have the ring no answer set to a minimum of three, because some receivers send a long tone after answering the line that sounds like a ring back. If the PB-3 is set to a ring no answer of two, the phone will disconnect (see Programming section J).
-
Page 9: Standard Operation
#06. 2. If the central station answers the call, sends the handshake tone, but does not send a “kiss off” tone after the information is sent, the PB-3 resends the information three additional times, waiting for a “kiss-off” after each attempt. If “kiss-off” has not been received after the fourth attempt, the PB-3 hangs up and dials position #05 again. -
Page 10: Related Products
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor.
