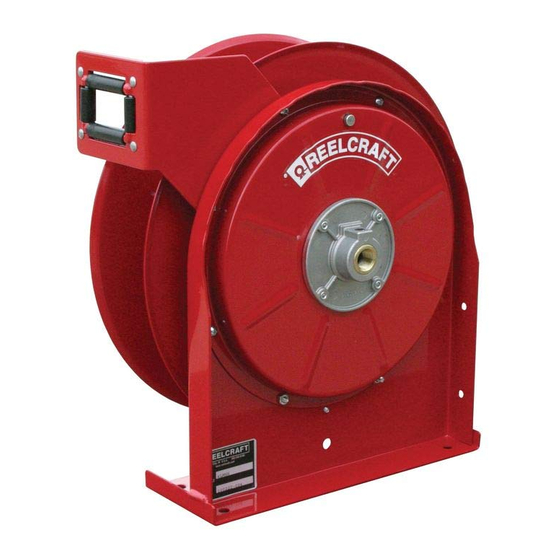

ReelCraft 5400 OLP Operating Instructions And Parts List

Hose Reel
Operating Instructions and Parts List
Low Pressure Models
5400 OLP
5440 OLP
5450 OLP

Installation:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent
possible misalignment and binding.

Mounting:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or
ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing
the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the
reel at the desired position and replace the screws.

Lubrication:

Hose reel spring and bearings are factory lubricated and require no further lubrication.
Replacing 1. Wind spool flange clockwise-facing swivel-until spring is tight.
Hose: 2. Back off three turns and latch.
3. Insert hose through roller guide and hole in spool flange.
4. Connect hose fitting to swivel joint and secure hose with clamps.
Adjustments: To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension
is obtained.
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

Repairs:

void your warranty. Remove all spring tension before beginning disassembly process.
5600 OLP
5630 OLP
5635 OLP

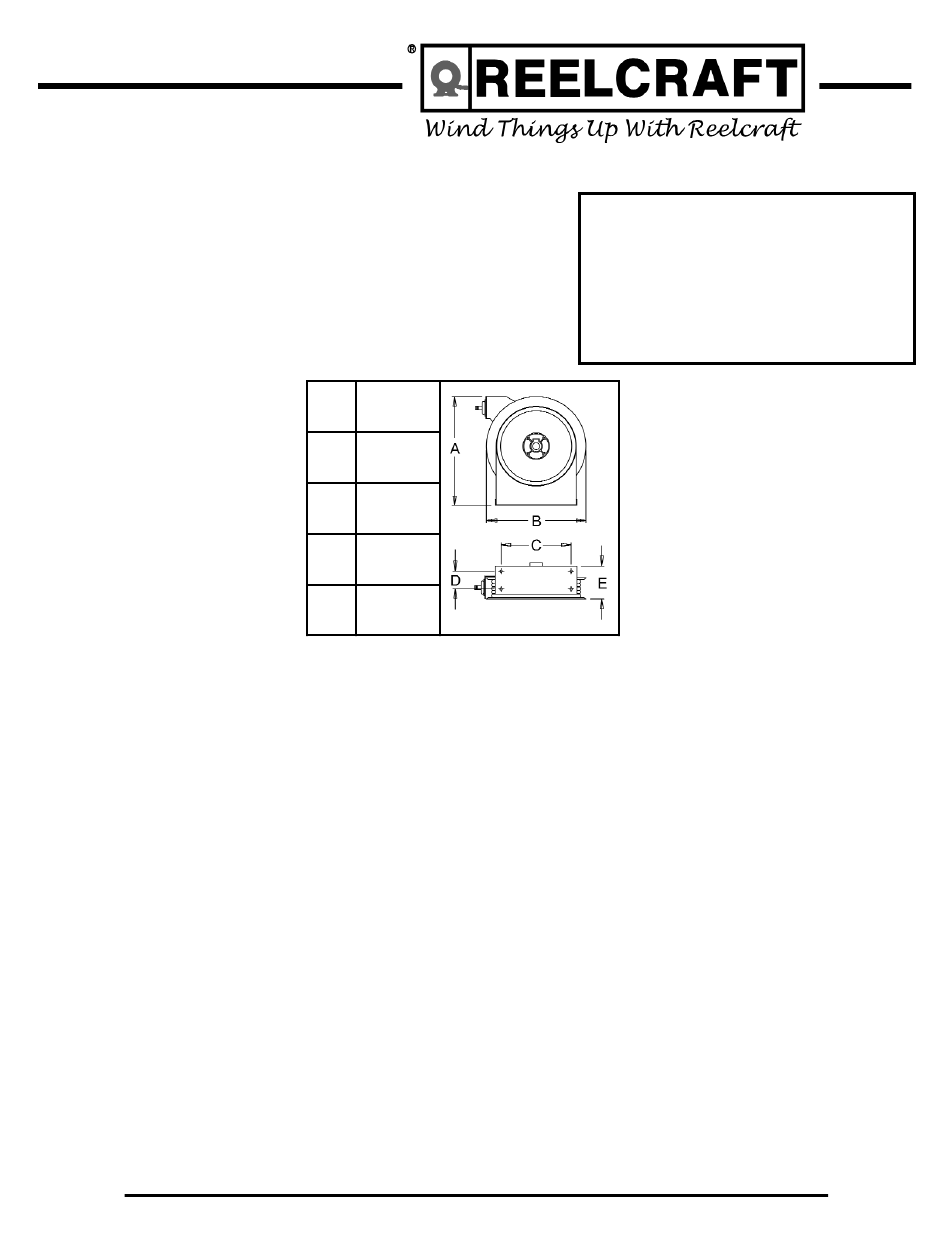

14 1/2"
A
13 3/4"
B
9 3/4"
C
2 1/2"
D
6"
E
Four 5/16" Mounting holes.

Instructions

Reelcraft Industries, Inc. • (800) 444-3134 / (260) 248-8188 • Fax: (260) 248-2605
E-mail: reelcraft@reelcraft.com • Internet: www.reelcraft.com

Safety

I. Do not use reels at higher pressures or
temperatures than listed on the back of this
bulletin.
II. Remove all spring tension before beginning
disassembly process.
FORM NO: 489-884
REV: 3/2009
