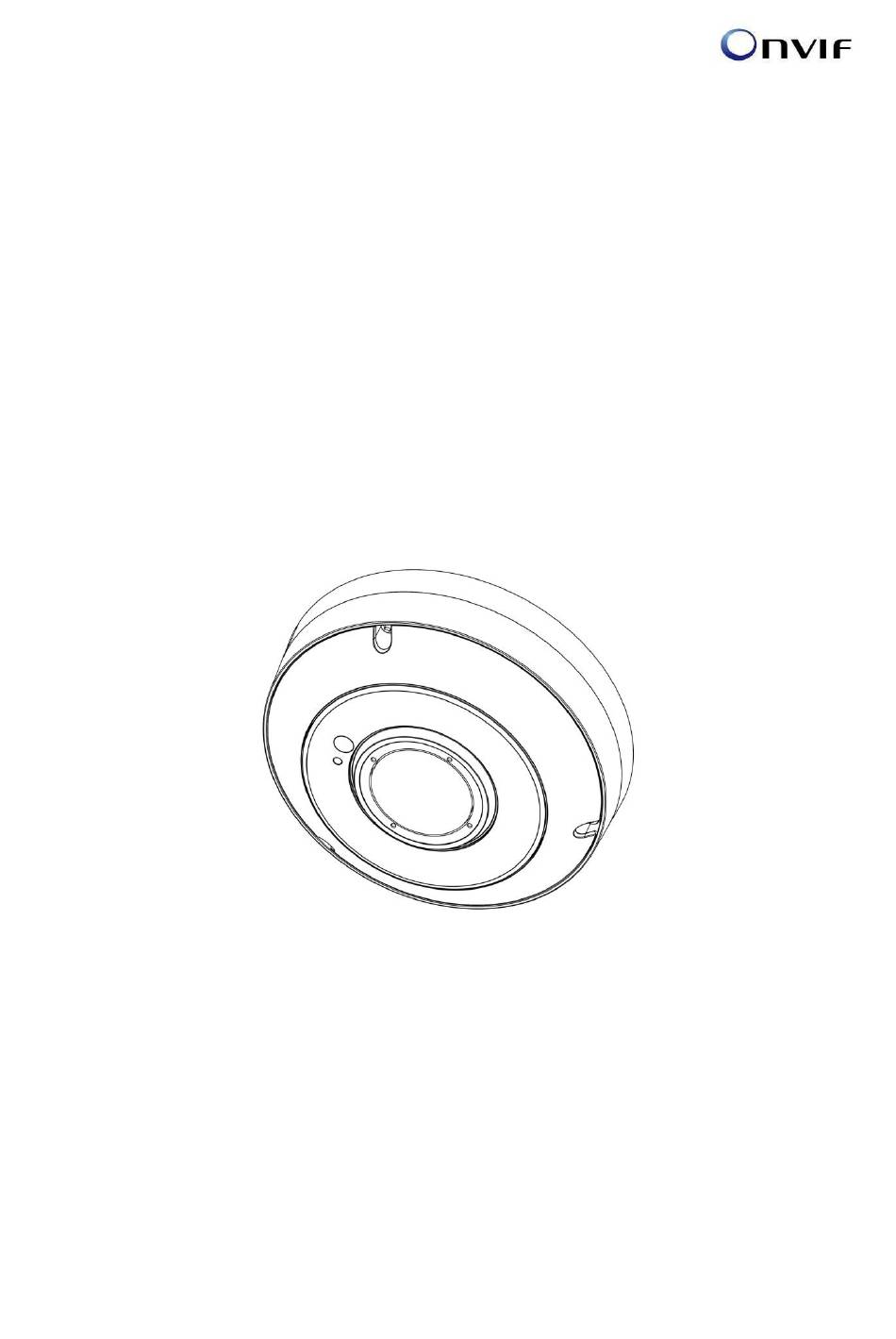

- Page 1 QUICK INSTALLATION GUIDE 4K FISHEYE NETWORK CAMERA (CDI12H360VIW) Please read this manual thoroughly before use and keep it handy for future reference...
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX- POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 1 Introduction The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time.
-
Page 6: Installation
2 Installation For the operation of the n etwork c amera, it is necessary to connect a network cable for data transmission, power connection from power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer. - Page 7 • Connectors Item Description DC12V Power input(2pin terminal block) Power Ethernet, RJ-45 port compatible RJ-45 with 10/100Mbps PoE Modular Jack CVBS Analog test video out(2pin connector) ALO: Alarm Out ALI: Alarm In Alarm input and output, 3pin terminal GND: Ground 12Vo Audio in/out terminal and 12V out for external AI: Audio In...
- Page 8 • Installing Camera 1. Open the top cover using L-wrench... 2. Drill a hole on the rubber grommet and insert an UTP(Ethernet) cable. 3. Assemble the RJ45 connector and UTP cable using crimping tool. Pin Color Orange-White Orange Green –White Blue Blue-White Green...
- Page 9 5. Fix the rubber grommet on the bottom for water proof. 6. Make mounting holes and cable hole using the template sheet.
- Page 10 2.2 Connection • Micro SD memory card Insert the SD card on the bottom of the dome. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
-
Page 11: Resetting To The Factory Default Settings
2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera inside the bottom cap. •... -
Page 12: Network Connection & Ip Assignment
2.4 Network Connection & IP assignment The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the “SmartManager” utility on the CD. (Default IP 192.168.0.129) Connect the network camera/device to the network and power up. - Page 13 4K FISHEYE NETWORK CAMERA (CDI12H360VIW) Rev.A...
