Sun Lawn MM-2 Owner's Manual

Manual reel mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
for
™
Manual Reel Mower
(Model MM-2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Lawn MM-2

Summary of Contents for Sun Lawn MM-2

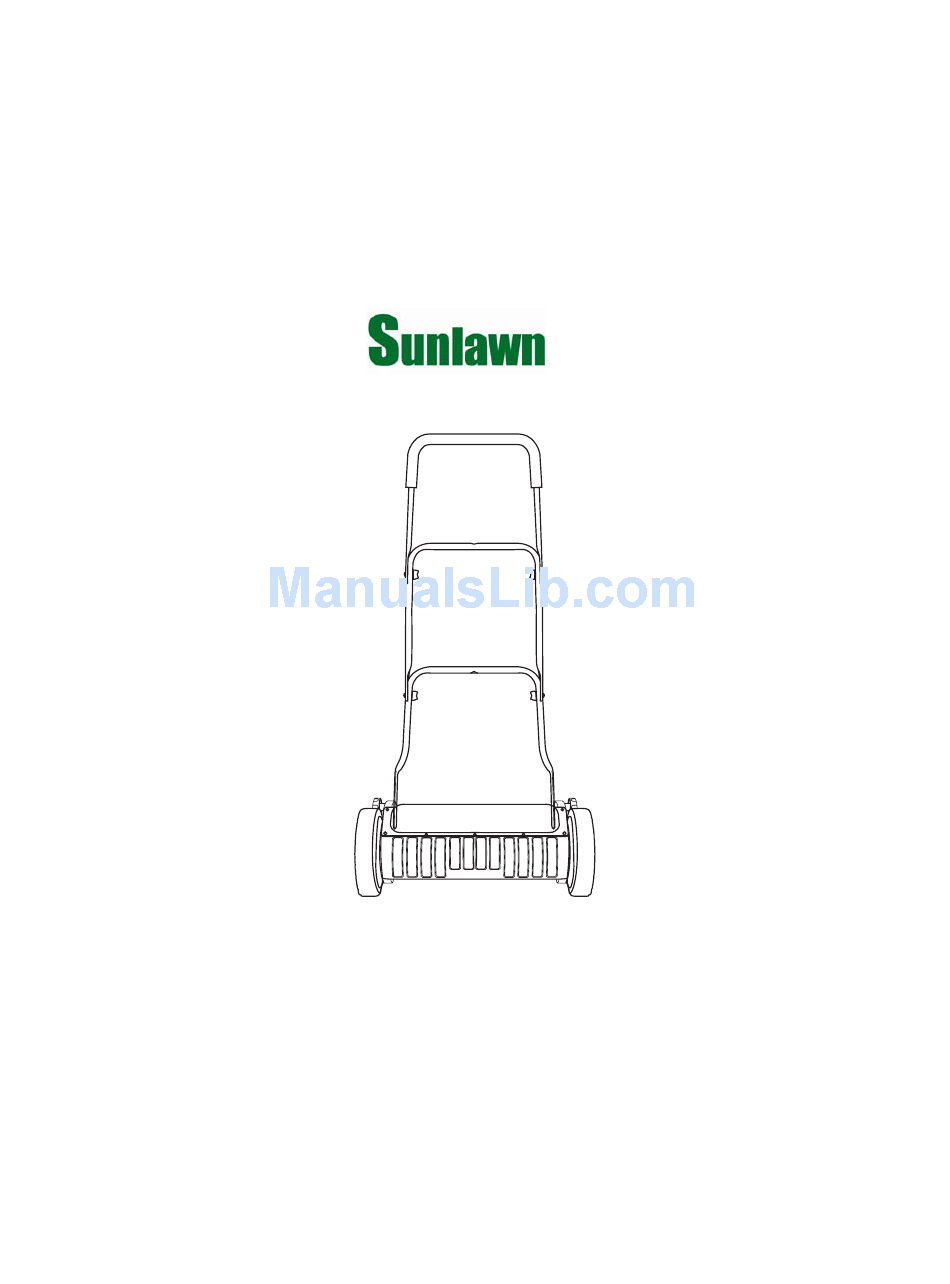

  • Page 1 Owner’s Manual ™ Manual Reel Mower (Model MM-2)

  • Page 2: Table Of Contents

    Table of Contents Welcome ...1 Warranty ...1 Use of This Product ...1 Assembly ...2 Parts List ...2 Assemble Handle Section ...3 Adjust Cutting Height ...3 Operations ...4 Inspect Mowing Area ...4 Normal Mowing ...5 Using Grass Catcher ...5 Mowing: General Information ...6 1/3 Rule ...6 Maintenance ...7 Cleaning ...7...

  • Page 3: Welcome

    Congratulations on your purchase of a Sunlawn mower. This and our other Sunlawn products originate from our commitment to conscientious gardening solutions. Please use this manual as a reference. Sunlawn, Inc. (the Manufacturer) guarantees this product for private use for a period of 2 years from the date of purchase. This guarantee applies to all serious defects of the product which can be proven to have been caused by faulty materials or workmanship.

  • Page 4: Assembly

    PARTS LIST Handle top section Handle grip Handle mid section Handle lower section Handle bolt (4) [A] Handle wing nut (4) [A] Handle spacer [B] Handle cotter pin [B] Adjustment knob [B] 10. Side panels (L/R) 11. Adjusting arms (L /R) 12.

  • Page 5: Assemble Handle Section

    # 1] of the handle using the handle bolts and wing nuts [Part # 5 and ADJUSTING THE CUTTING HEIGHT The cutting height of the MM-2 may be adjusted from approximately 1.0 inch up to approximately 2.9 inches. Actual height may vary according to the height of the turf.

  • Page 6: Operations

    1. Loosen the two large black knobs [Part # 9], one on each side of the mower body, to allow movement of the height adjustment arms [Part # 11]. (This is the same movement used to attach the handle.) NOTE: the handle is mounted to the height adjustment arms and thus moves with the arms.

  • Page 7: Normal Mowing

    2. Push the spring pin on the other side 3. Install the apron on the spring pin side The grass catcher attaches at the grass catcher hooks on the mower and by the strap to the mower handle, as seen below. Owner’s Manual — Sunlawn MM-2...

  • Page 8: Mowing: General Information

    Owner’s Manual — Sunlawn MM--2 Mow using the same procedure as for normal mowing (described above). MOWING: GENERAL INFORMATION THE 1/3 RULE This is the key to enjoyable mowing and a healthy lawn. 1. The lawn should be mowed regularly, at least once a week during the growing season.

  • Page 9: Maintenance

    Sharpening can only be done by a professional using a cylinder grinder and proper techniques. STORAGE 1. Store the MM-2 in a cool, dry place. 2. The mower should be stored out of the reach of children. READJUSTING THE BLADE CLEARANCE The blades are optimally adjusted from the factory.

  • Page 10: Technical Data

    2. Make the same adjustment at the other end of the cutting bar. 3. Now check the adjustment using the small 0.05mm/0.002 inch gauge (silver strip) supplied with the MM-2 (or any 0.05mm/0.002 inch feeler gauge). If the gauge is held by the cylinder blades but the cylinder and cutting bar are not touching then the adjustment is correct.
