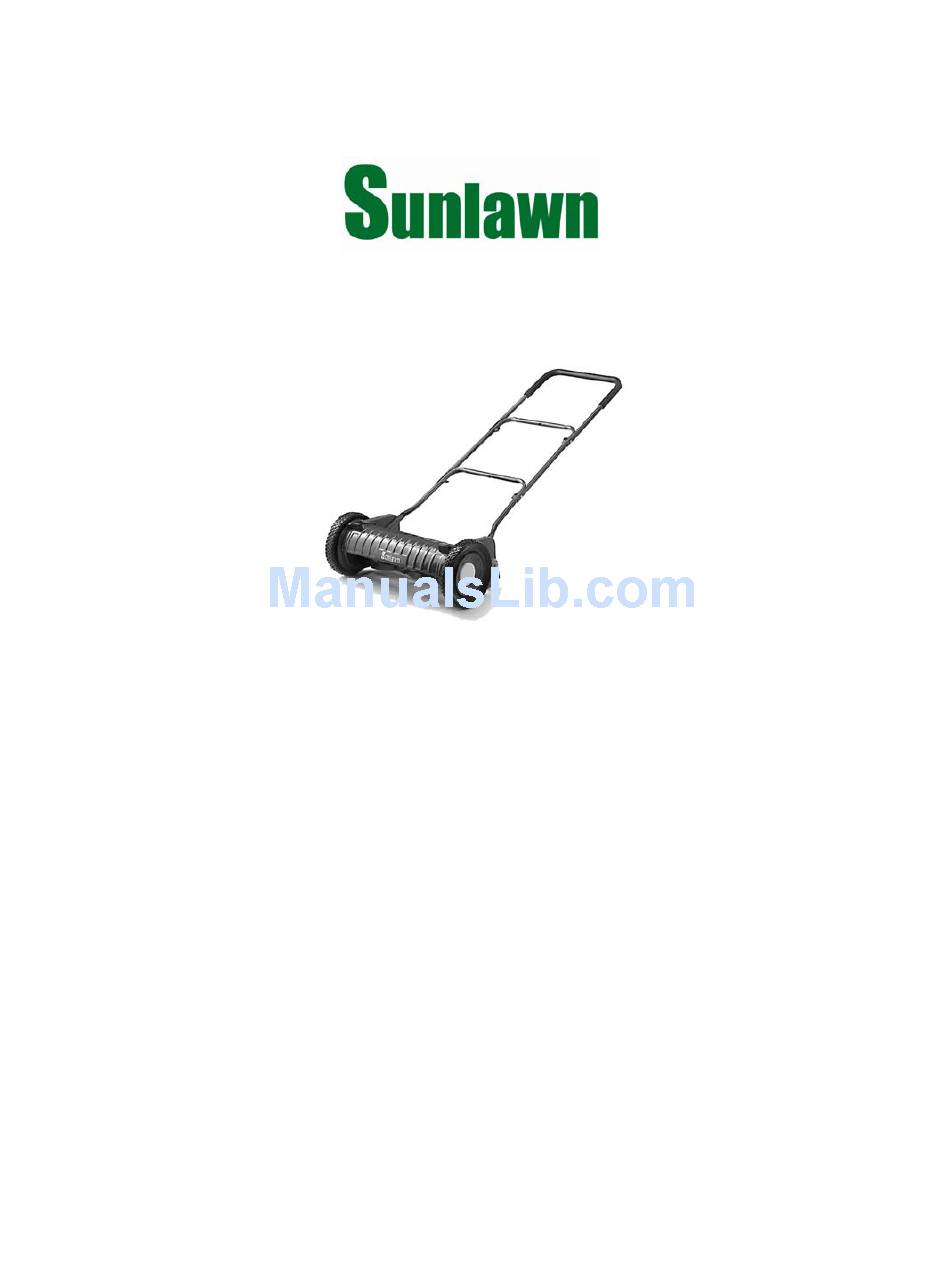

  • Page 1 Owner’s Manual ™ Manual Reel Mower Model LMM (Series 35 and 40)

  • Page 2: Table Of Contents

    Illustrations ... 1 Welcome ... 3 Warranty ... 3 Use of This Product ... 3 Assembly... 4 Assemble Handle Section ... 4 Adjust Cutting Height ... 4 Operations... 4 Inspect Mowing Area ... 4 Normal Mowing... 5 Mowing Using Grass Catcher... 5 Mowing: General Information ...
  • Page 3 LMM Owner’s Manual Fig. A Fig. C Fig. D Fig. B Fig. E...
  • Page 4 LMM Owner’s Manual...

  • Page 5: Welcome

    This mower is for cutting lawns only. It must not be used to trim hedges, bushes or shrubs, for cutting or pruning, or for any mowing where both wheels and the roller are not fully supporting the mower. LMM Owner’s Manual...

  • Page 6: Assembly

    ADJUSTING THE CUTTING HEIGHT (FIG. B, C) The cutting height of the LMM may be adjusted from approximately 10 mm (.4 inches) up to approximately 55 mm (2.1 inches). Actual height may vary according to the height of the turf.

  • Page 7: Normal Mowing

    Spin the blade cylinder by hand and back off the bolt approximately 1/8 turn or until the cutting bar and cylinder are no longer in contact. Make the same adjustment at the other end of the cutting bar. LMM Owner’s Manual...

  • Page 8: Storage

    Now check the adjustment using the small 0.05mm/0.002 inch gauge (silver strip) supplied with the LMM (or any 0.05mm/0.002 inch feeler gauge). If the gauge is held by the cylinder blades but the cylinder and cutting bar are not touching then the adjustment is correct.

  • Page 9: Technical Data

    10 – 55 mm (.4 – 2.2 inches) Wheel diameter 22.8 cm (9 inch) Blades Precision five-blade contact-free cutting system. Flame hardened, bearing- mounted 8.8kg (19.3 lb) 8.1kg (17.7 lb) 40 cm (16 inches) 35 cm (14 inches) LMM Owner’s Manual...

  • Page 10: Parts List

    LMM Owner’s Manual PARTS LIST...
  • Page 11 1. Top Cover 2. Height Adjusting Tabs 3. Cover Screws 4. Wheel Axle 5. Manual Driver Pawl 6. Cowl (R&L) 7. Spacer 8. Pinion Gear (R&L) 9. Wheel 10. Rim 11. C-clip 12. Hubcap 13. Handle Post Bolt 14. Handle Post Washer 15.
  • Page 12 LMM Owner’s Manual -10-...
