FELIX STORCH, INC.
SUMMIT APPLIANCE DIVISION
®
INSTRUCTION MANUAL FOR MODELS:
FS-60
FS-56L
Thank you for putting your trust in our company and for purchasing this appliance. We
hope it will successfully serve its purpose for many years.
A Freezer is used for freezing fresh foods at a temperature of -25°C.

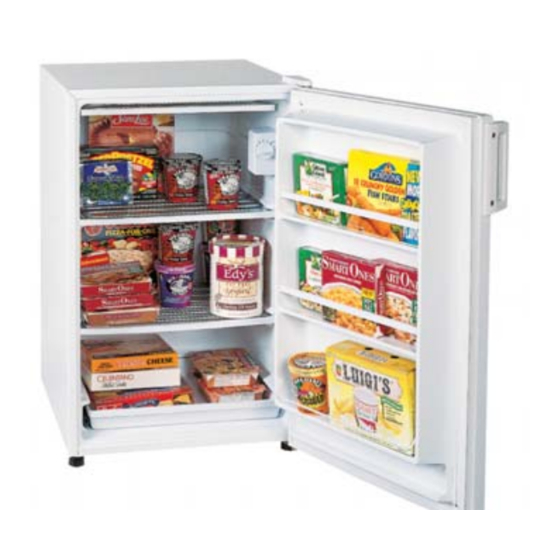

The FS-60 is a front opening freezer. This freezer contains open shelves and in-door
storage. It offers a full 5.0 cubic feet of capacity.
The FS-56L is the same as the FS-60 but with a side mounted lock.
All-Freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-56L and is the answer not in the manual?

Questions and answers

Related Manuals for Summit FS-56L

Summary of Contents for Summit FS-56L

  • Page 1 A Freezer is used for freezing fresh foods at a temperature of -25°C. The FS-60 is a front opening freezer. This freezer contains open shelves and in-door storage. It offers a full 5.0 cubic feet of capacity. The FS-56L is the same as the FS-60 but with a side mounted lock. All-Freezer...

  • Page 2: Before Putting Into Use

    Before Putting Into Use Before connecting the appliance to the power supply, leave it standing for about 2 hours, which will reduce a possibility of malfunctions in the cooling system due to transport handling. Clean the appliance thoroughly; especially in the interior (See Cleaning and Maintenance).

  • Page 3: Disposing Of The Worn Out Appliance

    Important To reduce the risk of fire, electrical shock, Warning! or injury when using your appliance, follow these basic precautions. Read all instructions before using the appliance If you bought this appliance to replace an old one equipped with a lock that cannot be opened from inside (lock, bolt), make sure that the lock is broken.

  • Page 4: Placing And Installation

    Placing and Installation Choosing the Right Place Place the appliance in a strong dry and regularly ventilated room. Allowed ambient Temperature depends on the model (class) of the appliance and is stated on the rating plate of the appliance. Class SN (sub-normal) N (normal) ST (sub-tropical)

  • Page 5: Description Of The Appliance

    Description of the Appliance Shelves If you want to remove the shelf slightly lift up the back part and pull it out. Quickly perishable foods should be stored on the back of the shelf which is the coldest part. Lock (optional) The side mounted lock with a spring can be locked or unlocked by slightly pressing the key turning it to the left or right at the same time.

  • Page 6: Operation Control

    Operation Control The appliance is controlled with the thermostat knob, placed in the right upper part inside the appliance. Turn the knob clockwise from STOP (0) position towards 7 and backwards. Temperature Selection • When the freezer operates automatically, the interior temperature is controlled by the thermostat.

  • Page 7: Commercially Frozen Foods

    Storing Fresh Foods • Foods to be stored in the freezer should be properly packed as to prevent mixing various moisture degrees and odors (in polyethylene bags or sheet, aluminum foil and covered containers). • Never store any inflammable, volatile or explosive substances. •...

  • Page 8: Changing The Direction Of Opening The Door

    Changing the Direction of Opening the Door If the door opening direction does not suit you, it may be changed to the opposite side of the cabinet were holes are already made. • Before changing the door the front side of the appliance must be slightly raised.

  • Page 9: Maintenance And Cleaning

    Maintenance and Cleaning Manual Defrosting of the All-Freezer When the frost and ice layer in the freezer is 1/8” thick you should clean the freezer. • First turn the thermostat knob to the STOP (0) position and disconnect the power supply. Empty the compartment and make sure that the packages remain frozen.

  • Page 10: Troubleshooting Guide

    Switch Off the Appliance When Not in Use If you do not intend to use the appliance for a long period of time set the thermostat knob to the STOP (0) position and disconnect the power supply. Then take out the foods and defrost and clean the appliance. Leave the door slightly open.

  • Page 11: Specifications Are Subject To Change Without Notice

    You may find the answer to your questions. If you don’t find the answer to your questions in this manual, find the unit model number (on the upper back of the refrigerator) and contact your Summit Appliance Dealer. Specifications are Subject to Change Without Instructions for Use...
