Summary of Contents for Sub-Zero 500

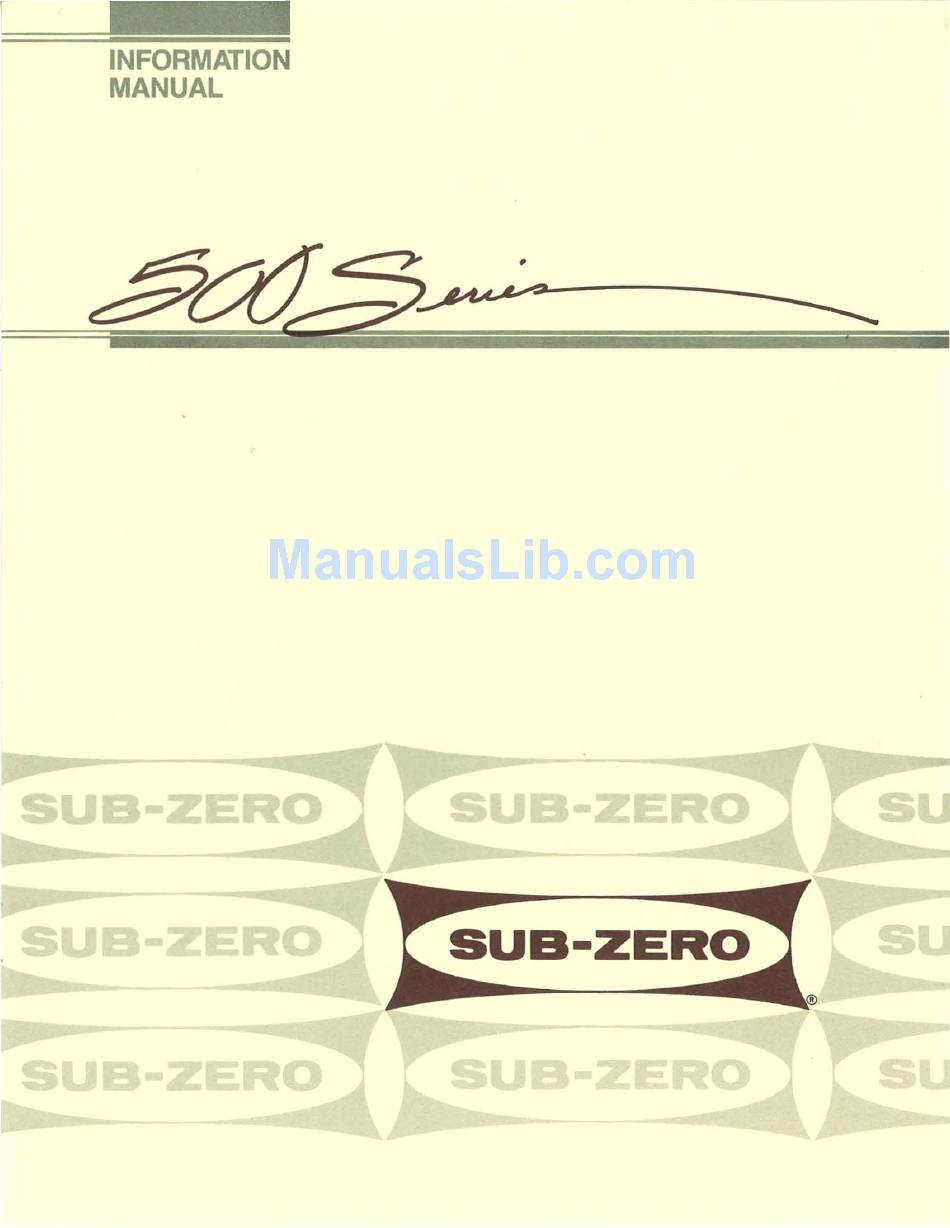

  • Page 1 INFORMATION MANUAL B-ZER...

  • Page 2: Table Of Contents

    Full 2 Year Warranty on the Total Product FULL FIVE YEAR WARRANTY For five years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any components that prove to materials or workmanship in the sealed system. The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.
  • Page 3 MODELS 532, 542 AND 561 FEATURES 1) Adjustable Dairy Compartment w/Magnetic Gasket (Dairy Companment of Model 561 has one section) Egg Trays (Model 561 has one egg tray) Adjustable Door Shelves Four-Sided Magnetic Gaskets Door Closers on Freezer and Refrigerator Doors 6) Removable Toe Plate '=============== ®...
  • Page 4 MODEL 511 AND 550 FEATURES 1) Adjustable Dairy Compartment w/Magnetic Gasket Egg Trays Adjustable Door Shelves Four-Sided Magnetic Gaskets - Refrigerator and Freezer Door Closers on Refrigerator Door and Freezer Drawer Removable Toe Plate • ® • ® ® ® MODEL 550 7) Deluxe Crispers with Rollers and Humidity Controls...
  • Page 5 MODEL 501F AND MODEL501R FEATURES MODEL 501F FEATURES 1) Adjustable Door Shelves Four-Sided Magnetic Gasket Door Closer Removable Toe Plate Roll-Out Freezer Baskets Pull-Out Ice Container I Automatic Ice Maker Adjustable Wire Shelves Lighted Ceiling Lighted Freezer Control 10) Serial and Model Number Plate 11) Hermetically Sealed Refrigeration Unit...

  • Page 6: Omodel590

    MODEL 590 FEATURES 1) Adjustable Dairy Compart- ment w/Magnetic Gasket Egg Tray 3) Adjustable Door Shelves 4) Four-Sided Magnetic Gaskets (Refrigerator and Freezer) 5) Door Closers on Freezer and Refrigerator Doors 6) Removable Toe Plate 7) Deluxe Crispers with Rollers and Humidity Controls ®...

  • Page 7: Models532, 542 And 561

    PRODUCT OPERATION The importance of the installation of your Sub-Zero cannot be over- emphasized. The proper in- stallation of your unit is the responsibility of the selling deafer or installer. Any questions or problems pertaining to the installation should be directed to the selling dealer.

  • Page 8: Humidity Control

    PRODUCT OPERATION HUMIDITY CONTROL The humidity level in each crisper may be controlled for the storage of meats, fruits or vegetables, (See "Food Storage Suggestions," (See pages 17 and 18). Adjust the slide on the front, to the left for higher humidity, or to the right for lower humidity.

  • Page 9: Door Shelves And Dairy Compartment

    PRODUCT OPERATION DOOR SHELVES AND DAIRY COMPARTMENT The door shelves and dairy assembly are adjustable within the guides of the door liner. See Figure 8. To remove: Lih straight up and out from the bottom. To reinstall: Select desired position and push down into guides.

  • Page 10: Door Closing

    This fan runs with either compressor. ICEMAKER ()PFRATION The icemaker in your Sub-Zero is fully automatic and has been fac- tory pre-tested. To put into opera- tion it requires only a connection to the house water supply.
  • Page 11 PRODUCT CARE MODEL 590 WA TER DISPENSER This automatic water and ice dis- pensing product offers the conve- nience of dispensing both chilled water and ice from the product without having to open the doors. See Figure 13. Figure 13 The water dispenser operates as follows: To operate the water dispenser, the water dispenser...
  • Page 12 PRODUCT CARE MODEL 590 FREEZER UTILITY RACK The freezer utility rack is specifi- cally designed to accommodate and hold freezer juice containers. For the removal of the freezer utility rack, lift up and pull out at the bot- tom with one hand and then sup- port the top with the other hand as in Figure 15 Figure 15...

  • Page 13: Automatic Defrost

    PRODUCT OPERATION ICEMAKER SWITCH Figure 18 ICE PRODUCTION ALL MODELS The level of ice in the ice containers is controlled by an ice level arm. When the containers are filled with ice the ice level arm senses the level and shuts down the icemaker As ice is used, the level drops and the level arm signals the icemaker to restore ice production.
  • Page 14 PRODUCT CARE STANDARD GRILLE REMOVAL MODELS 532, 542, 561, 511 AND 550 Remove center grille screw. Tilt the grille forward at the top and release the spring(s) from behind the grille and litt off. See Figure 20. reinstall: reverse procedure. GRILLE REMOVAL MODELS 501F AND 501R To remove grille, remove two black...
  • Page 15 PRODUCT CARE 590 Exterior Surfaces: Same as interior for all Factory Supplied Exterior Surfaces. 590 Glasswell cleaning: Wipe up spills after removing dispenser spill tray. See Figure 17. Clean with a mild solution of soap and water to which a small amount of baking soda has been added.

  • Page 16: Vacation Time

    PRODUCT CARE FREEZER LIGHTING MODELS 532, 542, 561 AND 501 The overhead lighting is accessed the same as described for "Refrigerator Lighting," page 15. FREEZER CONTROL LIGHTING MODELS 532, 542 AND 561 Additional freezer lighting is located behind the control panel. replace: Remove ice container, reach behind the...

  • Page 17: Food Storage Suggestions

    FOOD STORAGE SUGGESTIONS SUGGESTED STORAGE" New techniques are constantly being developed. Consult the College or County Extension Service or your local Utility Company for the latest information on freezing and storing foods. ·U.S. Department of Agriculture Fresh Food Storage Shelf life of fresh foods may vary, depending on the freshness at time of purchase.

  • Page 18: Service Information

    Before calling for service - If you think your refrigerator or heezer is not operating properly check the following beforll calling your Sub-Zero Factory Authorized Service Agency or dealer. This may save you time and the ex- pense of a service call.
  • Page 19 (for model and serial numbers refer to plate located on top frame of unit inside door.) • Call your nearest Sub-Zero Factory Authorized Service Center. For the location of a Sub-Zero Factory Authorized Service Center in your area, contact your dealer or: Sub- Zero Freezer Co., Inc., Service...
  • Page 20 (60B) 271-2233 SUB-ZERO FREEZER CO., INC. P.O. BOX 44130, MADISON, WI 53744-4130 9/96 FORM NO. 3-75-217-14 PRINTED IN U.S.A.
