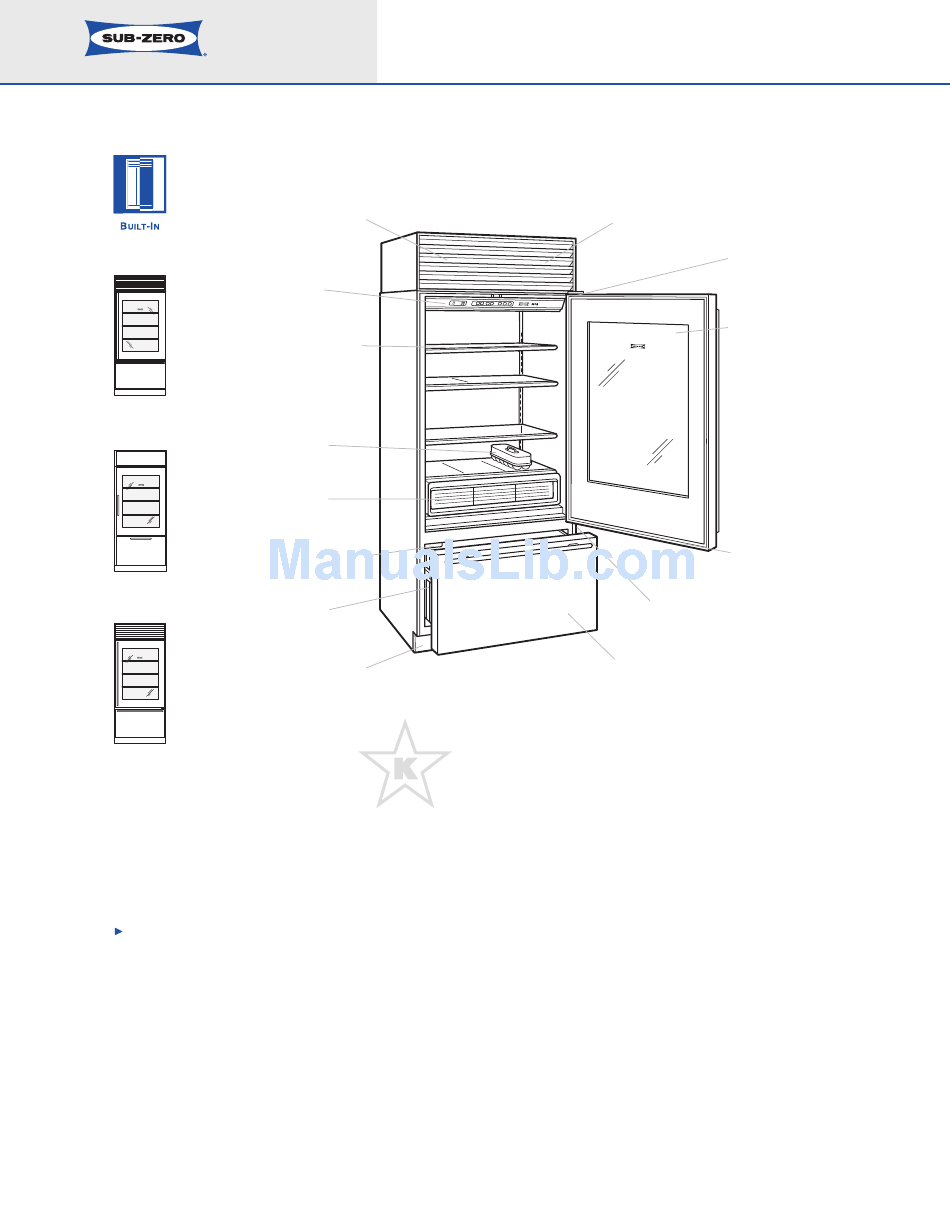

Planning Information
Built-In Model 650G
Over-and-Under Refrigerator / Freezer with Glass Door
Front venting allows
unit to be completely
built in
Lighted electronic
control panel
Adjustable spill-proof
glass shelves
Model 650G/F
Framed
Egg container
High humidity
crisper drawer
Automatic ice maker
Model 650G/O
Overlay
Two-tier wire
storage baskets
Removable kickplate
Model 650G/S (P/B)
Stainless Steel
The Sub-Zero Model 650G over-and-
under refrigerator / freezer with glass door
is available in your choice of the framed,
overlay or stainless steel design application.
Three stainless steel finishes are offered—
classic (/S), platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
W
e now offer our popular 36" (914) wide over-and-
under refrigerator / freezer unit with a glass door, Model
650G. While the door shelves have been eliminated for
a clean look, you do not sacrifice storage space
because we have made the interior shelves that much
deeper. It's the logical step from the professionals in
built-in refrigeration.
Hermetically sealed
refrigeration units
Serial and model
number plate
Triple-pane
UV resistant low-
energy glass door
Four-sided
Magnetic gaskets
Door closers
Full-extension roll-out
freezer drawer
1
