Page 1: Ice Maker
MODEL 315 ice maker ®... -
Page 2: Table Of Contents

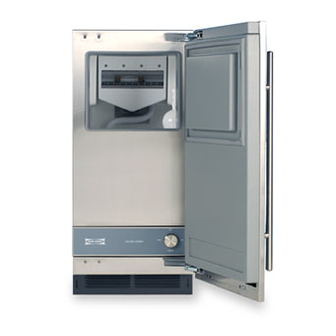

® InTRODUCTION The Sub-Zero Model 315 is a restaurant-type ice maker designed for home use. It produces the same high quality clear ice that you would expect from Sub-Zero. This guide is intended as a resource for the installation and operation of the Model 315. -
Page 3: Pre-Installation
Other impurities are chemically bonded to the water molecules, and cannot be filtered out, these are called dissolved solids. Ice made by the Model 315 will have a lower mineral con- tent than the water it was made from. "... - Page 4 Be sure your plumber, electrician and cabinet installer have this information before finishing work is completed. The Model 315 is a gravity drain model that requires a drain tube that’s pitched down from the outlet at the back of the cabinet to the connection to the sanitary sewer.
- Page 5 If a floor is to be installed after the ice maker, shims the thickness of the floor should be installed under the Model 315 to keep the ice maker level with the floor. Also, allow 1/8" clearance on each side of the cabinet for protruding screw heads.
-
Page 6: Installation
INSTALLATION Plumbing Model 315 – Gravity Drain Model The drain and inlet water tubes must be plumbed before connecting to the ice maker. All horizontal runs of drain lines must have a 1/4" per foot fall. An air gap will likely be required between the ice maker drain tube and the drain/waste receptacle. - Page 7 Drain Pump Kit This ice maker can be ordered with (Model 315P) or with- out (Model 315) a pump. Models without a drain pump drain their water by gravity. However, gravity drain models may be converted to pump models through the installation of a drain pump kit and drain pump.
- Page 8 Screws Securing the Unit Kickplate / Grille Installation Once the Model 315 is secured, you can install the kick- plate / grille. As shown in the illustration below, there is some adjustment to the mounting assembly so this deco- rative piece can fit flush with the surrounding area.
- Page 9 The hinged side of the door may be reversed to the other side if desired. The Model 315 was shipped with the door hinged at the right. The door and hinges are designed for placing the hinges on either the right or the left side of the cabinet.
- Page 10 INSTALLATION Panel Installation The Model 315 will easily accommodate a door panel as long as you follow these points. CAUTION Please exercise caution when drilling holes for mounting hardware. This is especially critical with inset panels. For any door handle hardware, we recommend near center...
- Page 11 INSTALLATION Door Panel Installation Door Panel–15 lb. weight limit Remove the handle side bracket attached to the front of the door and set aside. Place the door panel lying face down on a protected sur- face to ensure the front is not scratched or damaged. Position the plastic template provided flush with the upper edge of the door.
- Page 12 INSTALLATION 90 Degree Door Stop Model 315 has a 90 degree door stop. Follow these steps for installation: 1) Open door to 80 degrees. 2) Insert stop pin into the bottom door hinge (pin enters from the top). Refer to the illustration below.
-
Page 13: Installation
INSTALLATION Installation Check List The importance of the installation of your Model 315 ice maker cannot be overemphasized. The proper installation of your unit is the responsibility of the selling dealer or installer. The following check list should be completed by the installer to ensure no part of the installation has been overlooked. -
Page 14: Operation
What Expect Maker The Model 315 will release a batch of 8 ice cubes about every 30 minutes. At the same time the cubes fall into the storage bin, water will be entering the ice maker and draining out. - Page 15 OPERATION Ice Production There are two distinct cycles: freeze and harvest. 1 freeze cycle + 1 harvest cycle = 1 batch of 8 cubes. The freeze cycle happens when water is sprayed against the freezing surface. The harvest cycle is when the ice is released and water enters the ice maker.
-
Page 16: Cleaning
Cleaning Cleaning IMPORTANT NOTE: Never keep anything in the ice stor- age bin that is not ice; objects like wine or beer bottles are not only unsanitary, but the labels may slip off and plug up the drain. Never allow the ice maker to operate without regular cleaning. -
Page 17: Cleaning
Scoop out all of the ice, either discard it or save it in a ice chest or cooler. Pour 4 ounces of Sub-Zero ice maker cleaner into the ice maker reservoir. (Available from a local Sub-Zero distributor or dealer, ask for part number 19034306, an 8 ounce bottle). -
Page 18: Maintenance
Maintenance Winterizing Clean the ice making system. Turn off the water supply. Drain the water reservoir. Remove the pump hose. Disconnect the incoming water line at the inlet water valve. Remove control box cover and turn the timer into the harvest cycle. -
Page 19: Adjustments
ADJUSTMENTS Bin Ice Level Adjustment When the ice maker shuts off the ice level in the bin should be even with the metal tube inside the bin. If the ice in the bin is too high or low, turn the ice maker control knob to adjust the bin thermostat. -
Page 20: Troubleshooting
TROUBLESHOOTING Problem The ice maker does not operate Cubes are too big Cubes are too small Cubes are partially formed – have ragged sides Ice maker makes ice, but bin does not fill up with ice Cubes are partially formed – are white at the bottom Possible Cause The ice maker is unplugged... -
Page 21: Troubleshooting
TROUBLESHOOTING Problem No ice falling in bin, but ice maker operates Possible Cause Ice may be stuck in the evaporator and the unit is "frozen up" Too much heat load No water spray Cube size control will not close No airflow Not enough refrigerant Restricted system Hot gas valve leaks through... -
Page 22: Warranty
Full 5 Year Warranty and Limited 6th Through 12th Year Warranty For five years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the sealed system. The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing. -
Page 23: Model
Service For Your Ice Maker Please have model and serial number available. Contact your nearest Sub-Zero Factory Authorized Service Center in your area, your dealer or Sub-Zero Freezer Company, P.O. Box 44130, Madison, WI 53744-4130, call (800) 222-7820 or e-mail us at customerservice@subzero.com. - Page 24 Sub-Zero Freezer Company, Inc. 4717 Hammersley Road Madison, Wisconsin 53711 (800) 222-7820 (608) 271-2233 E-mail: customerservice@subzero.com ® 315IO 3/03...
