Sub-Zero 601F Planning Information
User's guide
Hide thumbs
Also See for 601F:
- Brochure & specs (18 pages) ,
- Specification sheet (2 pages) ,
- Design manual (80 pages)
Advertisement
Quick Links
Planning Information

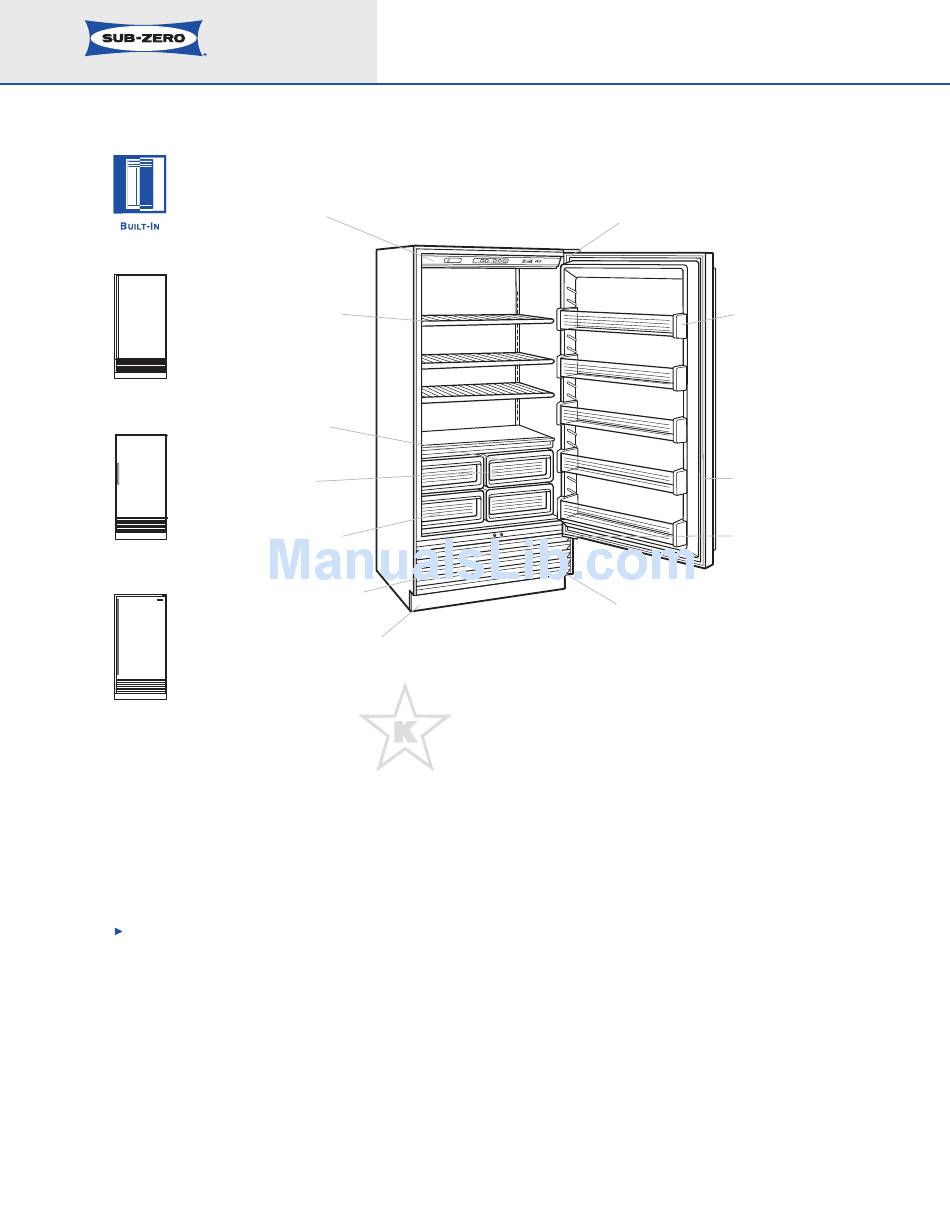

Built-In Model 601F
All Freezer
Lighted electronic
control panel
Adjustable wire
shelves
Model 601F/F
Framed
Automatic ice
maker
Pull-out ice
container
Roll-out storage
baskets
Model 601F/O
Overlay
Hermetically sealed
refrigeration units
Model 601F/S (P/B)
Stainless Steel
The Sub-Zero Model 601F all freezer
is available in your choice of the framed,
overlay or stainless steel design application.
Three stainless steel finishes are offered—
classic (/S), platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
Removable kickplate
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
C
ombined with the Model 601R or 601RG this
popular all freezer model strikes a handsome pose.
This combination is formidable and no one else in the
market can boast the performance these two offer.
The automatic ice maker has a large storage drawer
for easy access to the crescent-shaped ice.
Serial and model
number plate
Adjustable door
shelves
Four-sided
magnetic gaskets
Door closers
Front venting allows unit
to be completely built in
1
Advertisement
Related Manuals for Sub-Zero 601F
Summary of Contents for Sub-Zero 601F
- Page 1 Removable kickplate Model 601F/S (P/B) Stainless Steel The Sub-Zero Model 601F all freezer is available in your choice of the framed, overlay or stainless steel design application. Three stainless steel finishes are offered— classic (/S), platinum (/P) and carbon (/B).
- Page 2 Planning Information Built-In Model 601F F E A T U R E S 36" (914) wide all freezer Sub-Zero's refrigeration system ensures the best storage and energy efficiency Shallow-depth design means access is easy to any area of the freezer...
- Page 3 Stainless steel and polished chrome handles for overlay design 90˚ and 105˚ door stop kits Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com. Dimensions in parentheses are in millimeters unless otherwise specified.
-
Page 4: Top View
Finished Rough Opening Depth Location of Electrical Location of Water Supply See Installation Instructions shipped with unit for detailed specifications. Refer to the Sub-Zero Design Guide pdf file for additional specifications. Dimensions in parentheses are in millimeters unless otherwise specified. 24"... - Page 5 If your client has chosen the framed or overlay design, you will be adding front panels to give the unit the custom Sub-Zero look. The overlay design also allows you to add your own handles, or you may choose accessory handles available through your Sub-Zero dealer.
- Page 6 A D D I N G P A N E L S In your plan for panels, be sure you are working with the Sub-Zero panel design family called for in your design. If you have chosen the stainless steel design, the unit will be shipped complete with wrapped stainless steel doors and handle hardware.
- Page 7 Optional extended full-length handles that provide additional finger clearance for raised panels are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com. To install framed panels, refer to the installation instruc- tions shipped with each unit.
- Page 8 For overlay door panel dimensions, refer to specifications on page 9. IMPORTANT NOTE: Keep in mind that the Sub-Zero door panels have the potential for hitting adjacent cabinets and/or countertops when they are opened. You need to be aware of your surrounding cabinetry and space limitations when using the overlay models.
- Page 9 Planning Information Built-In Model 601F Overlay Door Panel Dimensions in parentheses are in millimeters unless otherwise specified. O V E R L A Y P A N E L S O V E R L A Y P A N E L D I M E N S I O N S...
- Page 10 Optional stainless steel handles are available in a variety of diameters and lengths in the classic, platinum and carbon stainless steel finishes and polished chrome. Contact your Sub-Zero dealer for specifics. To obtain local dealer information, visit the Locator section of our website, subzero.com.
- Page 11 Planning Information Built-In Model 601F H A N D L E P R O F I L E – F R A M E D A P P L I C A T I O N OPTIONAL EXTENDED FULL-LENGTH HANDLE 1"...
- Page 12 Planning Information Built-In Model 601F H A N D L E P R O F I L E – S T A I N L E S S S T E E L / O V E R L A Y A P P L I C A T I O N S STANDARD STAINLESS STEEL HANDLE 1"...
- Page 13 Planning Information Built-In Model 601F P A N E L A N D H A N D L E P R O F I L E – 1 3 0 ˚ D O O R O P E N I N G...
-
Page 14: Door Opening
Planning Information Built-In Model 601F O V E R L A Y P A N E L A P P L I C A T I O N – 9 0 ˚ D O O R O P E N I N G 90˚...
