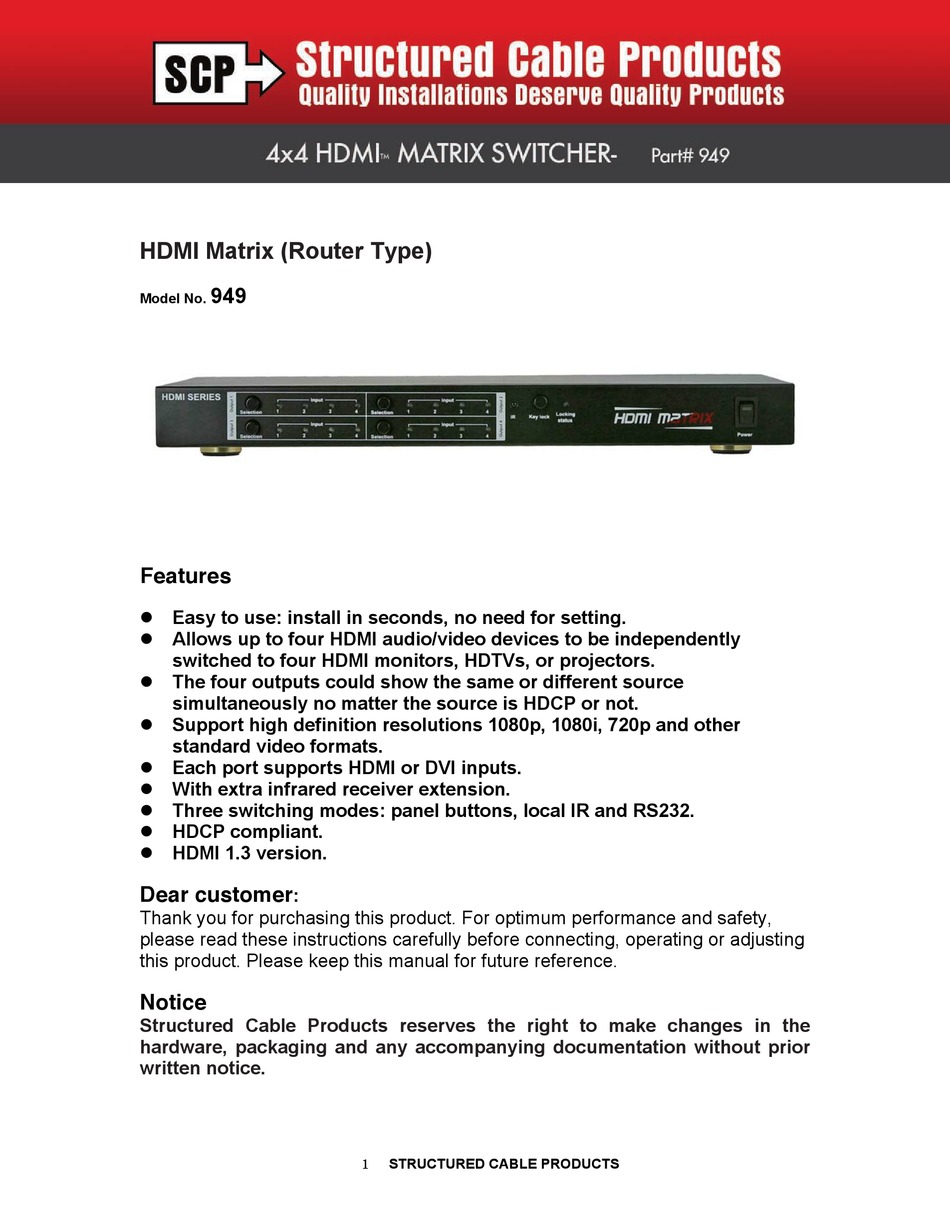

HDMI Matrix (Router Type)
949
Model No.
Features
Easy to use: install in seconds, no need for setting.
Allows up to four HDMI audio/video devices to be independently
switched to four HDMI monitors, HDTVs, or projectors.
The four outputs could show the same or different source
simultaneously no matter the source is HDCP or not.
Support high definition resolutions 1080p, 1080i, 720p and other
standard video formats.
Each port supports HDMI or DVI inputs.
With extra infrared receiver extension.
Three switching modes: panel buttons, local IR and RS232.
HDCP compliant.
HDMI 1.3 version.
Dear customer
:
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Notice
Structured Cable Products reserves the right to make changes in the
hardware, packaging and any accompanying documentation without prior
written notice.
STRUCTURED CABLE PRODUCTS
１
SCP-949 Operating Instructions
Advertisement
Table of Contents
Summary of Contents for Structured Cable Products HDMI MATRIX 949
- Page 1 Please keep this manual for future reference. Notice Structured Cable Products reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
- Page 2 UNUSED FOR LONG PERIODS OF TIME. 8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED PARTICULARLY AT PLUGS. 9) ONLY ATTACHMENTS/ACCESSORIES MANUFACTURER. 10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. ２ SCP-949 Operating Instructions SPECIFIED STRUCTURED CABLE PRODUCTS...
-
Page 3: Table Of Contents
PACKAGE CONTENTS 1. Main unit. P/N SCP-949 2. 5VDC Power Supply. 3. Remote. 4. IR extension cable. Operating Instructions.. *PART NUMBER (Abbreviation as P/N). STRUCTURED CABLE PRODUCTS ３... -
Page 4: Panel Descriptions
5. Power switch. Rear panel 1. RS232 port. 2. Power input. 3. IR extension. 4. Output 1 and 2. 5. Input ports 1 to 4. 6. Output 3 and 4. Note: RS232 port are for matrix control. STRUCTURED CABLE PRODUCTS ４... -
Page 5: Connect And Operation
The audio setting of the default EDID is stereo. It is suitable for TV sets. Attention: Please insert or extract cables gently. ５ SCP-949 Operating Instructions SCP 949 and turn on the display you want to STRUCTURED CABLE PRODUCTS 949. Extra infrared receiver Simultaneously for ... -
Page 6: Specification
-5 to +35°C (-41 to +95 °F) 5 to 90 % RH (no condensation) 0.5-1.0 volts p-p 5 volts p-p (TTL) 2.25Gbit/s DTV/HDTV:1080P/1080i/720P/576P/480P/576i/ 480i DTS-HD、Dolby trueHD HDMI1.2 and HDMI 1.3 <15m (If needed, HDMI extender is optional) 12wtts (Max) 440mmL×202mmW×42mmH /17.3''L×7.9''W×1.7''H 2kg/4.4lb STRUCTURED CABLE PRODUCTS... -
Page 7: Maintenance
Unauthorized substitutes may result in fire, electric shock, or other hazards. 4) Safety Check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. ７ SCP-949 Operating Instructions STRUCTURED CABLE PRODUCTS... -
Page 8: Warranty
WARRANTY If your product does not work properly because of a defect in materials or workmanship, Structured Cable Products the length of the period indicated as below, starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. -
Page 9: Contact Information
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Thank you for your We appreciate your business. Please contact us with your question and comments. Structured Cable Products 6228 Hiatus Road Tamarac, FL 33321 Tel: 954-327-5770 Fax: 954-327-8176 Email: sales@scpcat5e.com...
