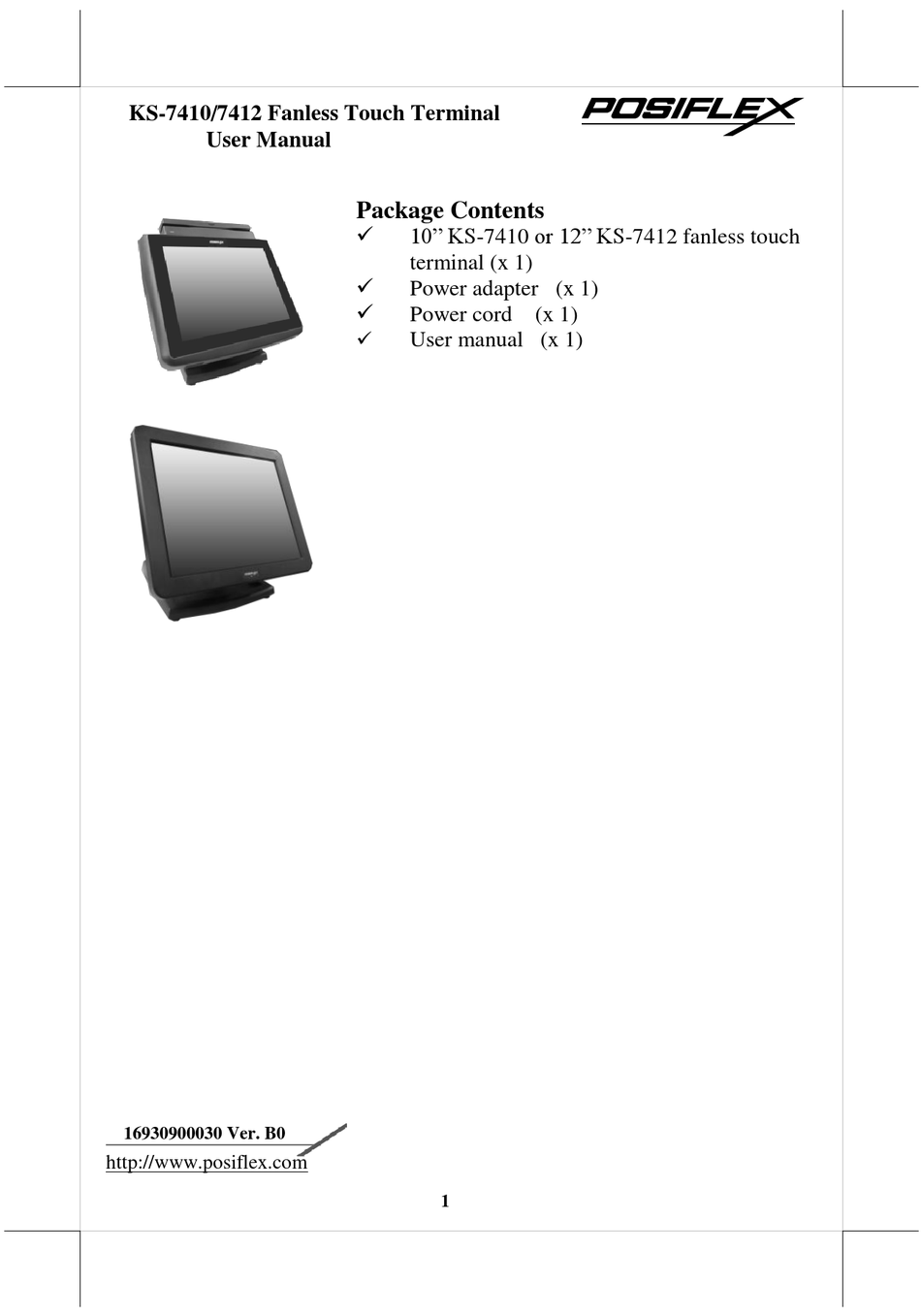

- Page 1 KS-7410/7412 Fanless Touch Terminal User Manual Package Contents 10” KS-7410 or 12” KS-7412 fanless touch terminal (x 1) Power adapter (x 1) Power cord (x 1) User manual (x 1) 16930900030 Ver. B0 http://www.posiflex.com...
- Page 2 Views of KS-7410 Front View LED Indicator 3-Track Magnetic Stripe Reader 10” P-CAP Touch Panel Base Stand Rear View Display Mounting Holes Cable Cover Cable Exit Left-side View Power Button...
- Page 3 Views of KS-7412 Front View 12” Resistive Touch Panel 12” P-CAP Touch Panel Indicator Indicator Base Stand Rear View Display Mounting Holes Cable Cover Cable Exit Left-side View Power Button...
- Page 4 View of I/O Interface of KS-7410 COM Port (DB9) LAN Port DC-In Power Jack VGA Port Line Out Jack USB 2.0 Ports CR Port COM Ports (RJ50) View of I/O Interface of KS-7412 LAN Port Line Out Jack DC-In Power Jack COM Port (DB9) USB 2.0 Ports...
- Page 5 Connecting VGA and USB Cables The base stand of KS-7410/7412 features its own cable management to help you well organize the cords. The following will provide some useful cable- routing instructions for you to connect VGA and USB cables to KS-7410/7412.
- Page 6 Installing Optional Upgrade Kits and Peripherals KS-7410/7412 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), RFID reader, fingerprint reader, 2 monitor and cash drawer, according to your preference. The following will give you installation instructions on how to expand on your current POS system with these optional upgrade kits.
- Page 7 Solid blue System ON Installing an Operating System You are highly advised not to install an operating system on KS-7410/7412 without professional instructions. Not only might the careless handling during installation cause irreversible damage to your machine, but also the improper installation likely leads to system malfunction or failure.
-
Page 8: Specifications
Specifications KS-7410 KS-7412 Intel Bay Trail J1900 System Memory DDR3L SO-DIMM x 1 Storage Device SATA Port x 1 Power Supply 12V / 60W OS Support Windows 7 / POSReady 7 / Windows 8.1 / Windows 10 LCD Display 9.7" TFT LCD 12"...
