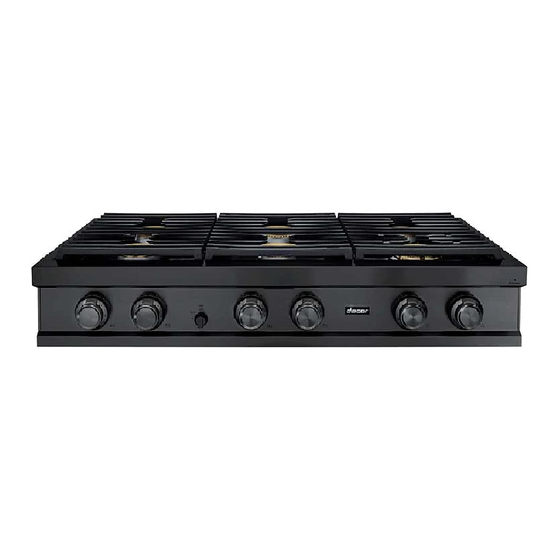

- Page 1 Installation Instructions Modernist Rangetop DTT48M876*/DTT36M876* Part No. 115115 Rev A...
-
Page 2: Table Of Contents
Table of Contents Before You Begin Important Notes Customer-Assurance Information Important Safety Instructions Product Specifications What Is In the Box Parts and Tools Needed Installation Requirements In Preparation Overall Rangetop Dimensions Countertop Cutout Dimensions Gas-Supply Requirements Special Gas Requirements (gas models sold in Massachusetts) Electrical Requirements Installation Instructions Installing the Rangetop... -
Page 3: Before You Begin
Before You Begin Important Notes to the Owner User • Keep this manual for personal and professional reference. • Ensure that qualified personnel install and ground the rangetop. Overall design/accessories may differ with the model. Installer • Read this manual thoroughly before installation. •... -
Page 4: Customer-Assurance Information
Customer-Assurance Information To resolve questions and installation issues, contact your Dacor dealer or the Dacor Customer Assurance Team. Before calling, have the rangetop's model/serial numbers available (see the data label, right-hand side of the rangetop chassis.) Label Dacor Customer Assurance Phone: (800) 793-0093 x2813 (USA, Canada) Hours of Operation: Mon –... -
Page 5: Important Safety Instructions
Important Safety Instructions Read All Instructions Before Using This Appliance • All electrical and gas equipment with moving parts can be dangerous. Read the Important Safety Informa- tion, and follow the instructions carefully to minimize risk of property damage, personal injury, and death. •... - Page 6 Important Safety Instructions General Safety, cont. • Do not use the rangetop as a space heater. • Air curtains or range hoods that blow air downward shall not be used with a gas range unless the hood and range are designed and tested according to the Standard for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing laboratory for combination use.
- Page 7 Important Safety Instructions Electrical and Grounding Safety To reduce risk of property damage, fire, personal injury, and death: • Plug the appliance in to a grounded, 3-prong outlet. • Do not remove the ground prong. • Do not use an adapter or an extension cord. •...
- Page 8 Important Safety Instructions Rangetop Safety To reduce risk of fire, electric shock, personal injury, and death: • Turn all burners are off when not in use. • Do not use aluminium foil to line the grates or any part of the rangetop. •...
-
Page 9: Product Specifications
• Porcelain and brass burner caps are provided to suit customer preference. (The brass will discolor with use; however, the discoloration does not affect the caps’ intended function.) • If you need an accessory marked with an asterisk (*), contact Dacor Customer Assurance via • (800) 793-0093, or visit : www.dacor.com/customer-care/contact-us. -
Page 10: Parts And Tools Needed
Product Specifications Parts and Tools Needed Parts Needed Gas line shut-off valve Flexible metal appliance Flare union adapter ¾ Flare union adapter ¾ in (NPT) x ½ in (ID) in (NPT) x ½ in (ID) connector ½ in (ID) x 5 ft 135-degree elbow (option) 90-degree elbow (option) Tools Needed... -
Page 11: Installation Requirements
Installation Requirements In Preparation Before cutting the opening in the countertop, verify that there will be no conflict between the rangetop chassis and anything in the cabinet below. 2. Remove all packing material and accessories from the rangetop, and verify that all items are present before beginning the installation. -
Page 12: Overall Rangetop Dimensions
Installation Requirements DTT36M876* 36” (91.1 cm) DTT48M876* 48” (121.6 cm) English... -
Page 13: Countertop Cutout Dimensions
Installation Requirements Countertop Cutout Dimensions Cabinet/Countertop Dimensions (front view) Installed Rangetop (side view) Cutout dimensions must be observed. Any overage could be create severe problems. Cabinet tolerances +1/16” (+1.6 mm) -0 unless otherwise noted. English... - Page 14 Installation Requirements Countertop Cutout Dimensions, cont. Installed Rangetop (side view) Cabinet/Countertop Cutout Dimensions—No Downdraft Vent (top view) Rangetop Model DTT36M876L* 36” (91.4 cm) 35” (88.9 cm) 16 5/8” (42.2 cm) DTT48M876L* 48” (121.9 cm) 47” (119.4 cm) 20 13/16” (52.9 cm) English...
- Page 15 Installation Requirements Countertop Cutout Dimensions, cont.) Cabinet/Countertop Cutout Dimensions—With Downdraft Vent (top view) Gas and electrical connections must be routed through the bottom of the rangetop when installed with a downdraft vent. Model A: Cutout Width B: Hole Offset C: Downdraft Vent Approved Downdraft Cutout Vent Models*...
- Page 16 Installation Requirements Countertop Cutout Dimensions, cont. Cabinet/Countertop—With Downdraft Vent (side view) Utility Locations and Dimensions (rear) Dimension DTT36M876L* DTT48M876L* 3 1/2" (8.9cm) 4" (10.1cm) 4 11/16" (11.9cm) 4 11/16" (11.9cm) 5 1/8" (13cm) 16 1/2" (41.9cm) 2 11/16" (6.9cm) 2 11/16" (6.9cm) English...
-
Page 17: Gas-Supply Requirements
Installation Requirements Gas-Supply Requirements Provide Adequate Gas Supply The rangetop operates at a manifold pressure of: • 5 in. (13 cm) of water column for natural gas/natural-gas-at-high-altitude (NG-H) or • 10 in. (25 cm) of water column for LP gas (propane)/LP-gas-at-high-altitude (LP/H). Ensure your rangetop receives the proper gas. -
Page 18: Electrical Requirements
Installation Requirements Electrical Requirements • The owner shall verify that the electrical service meets electrical requirements and that the outlet is prop- erly installed by a licensed electrician. • To reduce risk of fire, electric shock, or personal injury: – Do not use an extension cord or adapter plug with the rangetop. –... -
Page 19: Installation Instructions
Installation Instructions Installing the Rangetop IMPORTANT Carefully read these instructions and the Important Safety Instructions (Pg. 5) before installing/ operating the rangetop. Improper installation, adjustment, service, or maintenance can lead to personal injury and property damage. Product failure due to improper installation is not warrantied. Only qualified personnel should install the rangetop. - Page 20 Installation Instructions Installing the Rangetop, cont. Connecting the Gas Supply, cont. Never install an old connector on a new appliance. For hard piping, carefully align the pipe; the rangetop can- not be moved after the connection is made. To prevent gas leaks, apply pipe-joint compound or wrap pipe-thread tape with Teflon on all male (external) pipe threads.
- Page 21 Installation Instructions Installing the Rangetop, cont. Making the Electrical Connections • Disconnect power at the main circuit breaker or fuse box before making electrical connections. • BEFORE operating/testing, follow the grounding requirements (pg. 30) of this manual. Improper connec- tion of the grounding plug is an electric-shock risk. •...
- Page 22 Installation Instructions Installing the Rangetop, cont. Dual Burner Heads/Caps 1. Orient the burner head so the opening for the elec- trode aligns with the electrode. 2. Install the burner head so the electrode passes through its opening in the head. Ensure the burner head lies flat on the stove top.
- Page 23 Installation Instructions Rack and Pan Placement 1. Place the burner heads as shown. The locater tab on the head goes in the keyed hole as shown. 2. Put the burner rings on the heads as shown. Match the tabs on the bottom of the ring to the slots on the head.
- Page 24 Installation Instructions Installing the Rangetop, cont. Checking Flame Quality All burner flames must be visually checked to assess their quality. If you want measure the flame, take care to avoid burn injuries. Soft blue flames—Normal for natural gas. 2. Yellow tips on outer cones—Normal for LP gas. 3.
- Page 25 Installation Instructions Installing the Rangetop, cont. Final Installation Checklist After installing the rangetop, ensure all control knobs are OFF. Review this checklist to confirm the rangetop is properly installed and ready to operate. • The gas line was properly connected to the rangetop. •...
- Page 26 Notes English...
- Page 27 Notes English...
- Page 28 Dacor product, please return all forms in one envelope, or activate the warranty online for each product. Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not...
- Page 29 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
