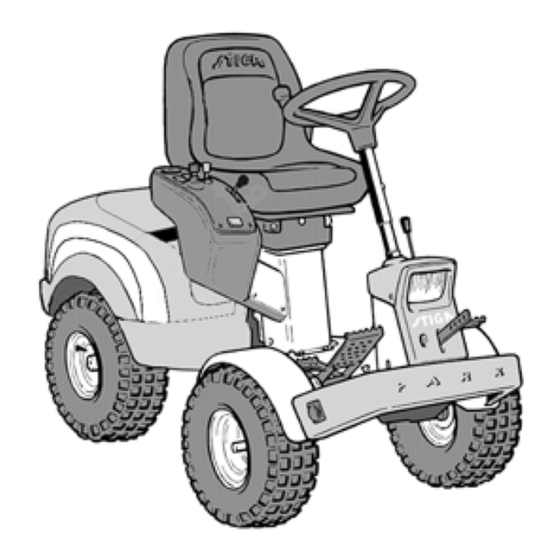

Stiga DIESEL DIESEL 4WD Instructions For Use Manual

Stiga lawn mower user manual
Hide thumbs Also See for DIESEL DIESEL 4WD:
Table of Contents

Advertisement

Quick Links

Download this manual
BRUKSANVISNING
KÄYTTÖOHJEET
BRUGSANVISNING
BRUKSANVISNING
GEBRAUCHSANWEISUNG
INSTRUCTIONS FOR USE
MODE D'EMPLOI
GEBRUIKSAANWIJZING
S T I G A P A R K
SV .... 8
FI ... 18
DA ..28
NO .38
DE...48
EN...60
FR....71
NL...82
8211-0007-80
D I E S E L
D I E S E L 4 W D

Advertisement

Table of Contents
loading

Related Manuals for Stiga DIESEL DIESEL 4WD

Summary of Contents for Stiga DIESEL DIESEL 4WD

  • Page 1 BRUKSANVISNING SV ... 8 KÄYTTÖOHJEET FI ... 18 BRUGSANVISNING DA ..28 BRUKSANVISNING NO .38 GEBRAUCHSANWEISUNG DE...48 INSTRUCTIONS FOR USE EN...60 MODE D’EMPLOI FR...71 GEBRUIKSAANWIJZING NL...82 8211-0007-80 S T I G A P A R K D I E S E L D I E S E L 4 W D...
  • Page 2 J K L...

  • Page 8: Safety System

    1 GENERAL This symbol indicates WARNING. Seri- ous personal injury and/or damage to property may result if the instructions are not followed carefully. You must read these instructions for use and the accompanying pamphlet “SAFETY INSTRUCTIONS” careful- ly, before starting up the machine. 1.1 SYMBOLS The following symbols appear on the machine.
  • Page 9 2.4.2 Implement lifter, hydraulic (4:M) (4WD) The hydraulic implement lifter only works when the engine is running and the clutch pedal and parking brake pedal are not depressed. The imple- ment lifter is controlled using the lever (4:M). The lever has the following four positions: Floating position.
  • Page 10 2.4.9 Ignition lock (4,5:I) Ignition lock used for starting/stopping the engine. There are 3 positions: 1. Stop position – the engine is short-cir- cuited. The key can be removed. 2. Operating position 3. Start position – the electric start motor is activated when the key is turned to the spring-loaded start position.

  • Page 11: Areas Of Use

    2. Install the locking pin (31:G). 3.Carry out the above on the other side. 3 AREAS OF USE The machine may only be used for the following tasks using the genuine STIGA accessories stated. Work Accessories, STIGA genuine Mowing Using mowing decks: 125 Com- bi Pro, 125 Combi Pro El and with flail mower.

  • Page 12: Starting And Operation

    4 STARTING AND OPERATION The machine may not be operated un- less the engine casing is closed and locked. Risk of burns and crushing in- juries. 4.1 Refuelling Only use diesel which satisfies the minimum re- quirements of the following specifications: EN 590 BS 2869 A1 / A2 ASTM D 975 - 1D / 2D...

  • Page 13: Operating Tips

    4.5.1 General safety check Object Result Fuel lines and con- No leaks. nections. Electrical cables. All insulation intact. No mechanical damage. Exhaust system. No leaks at connections. All screws tightened. Oil lines No leaks. No damage. Drive the machine The machine will stop. forwards/back- wards and release the driving-service...

  • Page 14: Maintenance

    5.1 Service programme In order to keep the machine in good condition as regards reliability and operational safety as well as from an environmental perspective, STIGA’s Ser- vice programme should be followed. The contents of this programme can be found in the attached service log.

  • Page 15: Fuel Filter

    5.4.1 Oil filter The oil filter must be cleaned after 1000 hours of operation and when changing the oil. First drain the engine oil and install the oil drain plug as above. Then clean the oil filter as follows: 1. Clean the area around the filter (13:A) 2.

  • Page 16: Belt Transmissions

    The oil plug will be damaged if it is tightened more to than 5 Nm. 9. Check that the gasket on the oil plug of the rear axle is intact. See fig. 18:V. Reinstall in the rear axle. Tighten the oil plug to 5 Nm. 10.Draw out the oil from the deeper section of the reservoir using an oil extractor.

  • Page 17: Air Filter, Engine

    5.11.2 Charging using battery charger When charging using a battery charger, a battery charger with constant voltage must be used. Contact your dealer to purchase a battery charger with constant voltage. The battery can be damaged if a standard type battery charger is used.
  • Page 18 5.15 Fuses If any of the faults listed below occurs, replace the relevant fuse. See fig. 29/30. Fault The engine does not start or starts and stops immediately. The battery is charged. Sand spreader and electrical cutting height adjustment do not work. All electrical functions are out of operation.
