Summary of Contents for Stewart Filmscreen Corp Projection HDTV

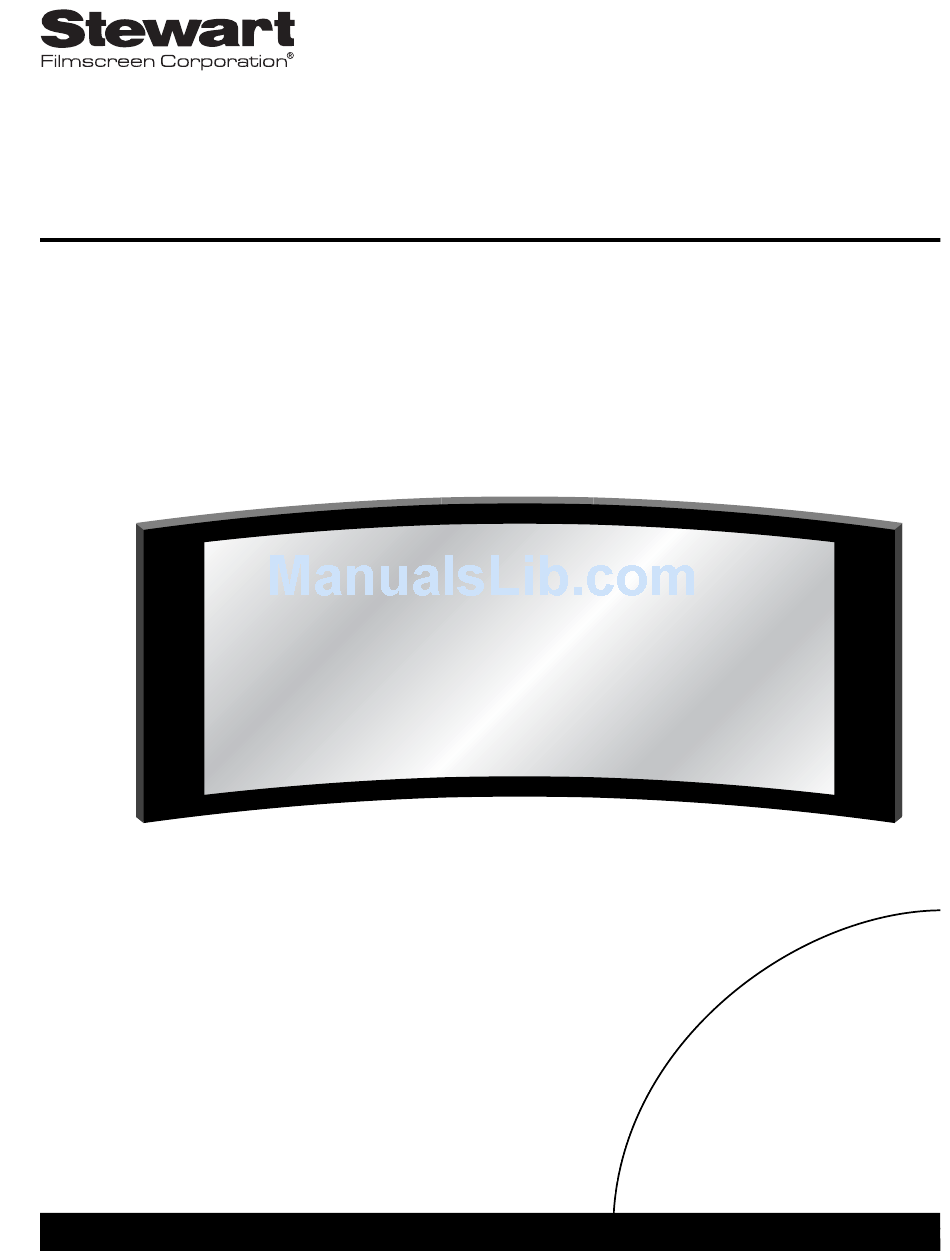

- Page 1 CineCurve O W N E R ’ S M A N U A L To the Owner Installation Instructions Screen Care Maintenance CCV-0406 O T H E I N S T A L L E R E S U R E T O L E A V E T H I S M A N U A L W I T H T H E O W N E R...
- Page 2 Printed in U.S.A. ©2006 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at www.stewartfilmscreen.com.
-
Page 3: Table Of Contents
CineCurve O W N E R ’ S M A N U A L Contents To the Owner ........2 Preparing the Installation . -
Page 4: To The Owner
O THE WNER Congratulations on your purchase of one of the finest optical viewing screens available anywhere in the world! Please take a moment to review this manual, it will help ensure you many years of trouble-free service from your new Stewart Filmscreen product. About the CineCurve Your CineCurve features a 2.35:1 aspect ratio to allow full enjoyment of images in this dramatic, super-widescreen format produced by a projector... -
Page 5: Preparing The Installation
REPARING THE NSTALLATION CineCurve: Owner’s Manual Preparation Specifications regarding the individual screen dimensions, weight, mounting type, and controls are provided by the factory when the unit is ordered. Before beginning the installation: Check the specifications for the frame and mounting to be used. Prepare for electrical access. - Page 6 Wall mount bracket Masking system motor Figure 1. CineCurve Componets, rear view CineCurve components This section identifies the principal components of the CineCurve. The unit is shipped in several sections: the left and right sections, each with a motor assembly on the outside, plus a center section. Center section with bracket Track for mask...
-
Page 7: Frame Assembly And Wall Mount
RAME SSEMBLY AND Slip joint CineCurve: Owner’s Manual OUNT Professional mounting techniques should be used. Stewart Filmscreen Corporation cannot be liable for substandard or faulty installations. This section describes assembly and mounting of the CineCurve frame. Refer to Figure 2. 1. -
Page 8: Attaching The Screen To The Frame
TTACHING THE CREEN TO THE RAME This section provides instructions for attaching the screen to the frame. Caution Be sure your hands and clothing are clean. Use of gloves is recommended. Be careful not to touch or scratch the image surface with fingernails. Do not use any tools to fasten the screen to the frame. -
Page 9: Operating The Cinecurve
PERATING THE CREEN ARE AND CineCurve: Owner’s Manual URVE CineCurve operation is controlled by a Stewart Filmscreen BRIC. Refer to the BRIC manual for details. You can use either a hand-held remote control or a wall mounted keypad to operate the masks. Caution Keep objects and fingers out of the way of the masks when they are in motion. -
Page 10: Product Warranty
A factory authorized returned screen arriving prepaid to our facility for inspection and proved defective due to an inherent manufacturing fault will be repaired or replaced by Stewart Filmscreen Corp. This warranty expressly does not cover any costs of removal, installation, framing, or other incidental costs to replacing the screen or returning it to the manufacturer. -
Page 11: Troubleshooting
ROUBLESHOOTING Problem description Dirt, finger prints, marks, etc. on screen surface. Motor chatters when power is activated. When retracting the masks, grinding noise occurs. CineCurve: Owner’s Manual CineCurve: Owner’s Manual With reasonable care, you may expect many years of trouble-free use of your Stewart projection screen. - Page 12 www.stewartfilm.com 1-800-762-4999 Fax (310) 326-6870...
