Summary of Contents for Grandinote Genesi

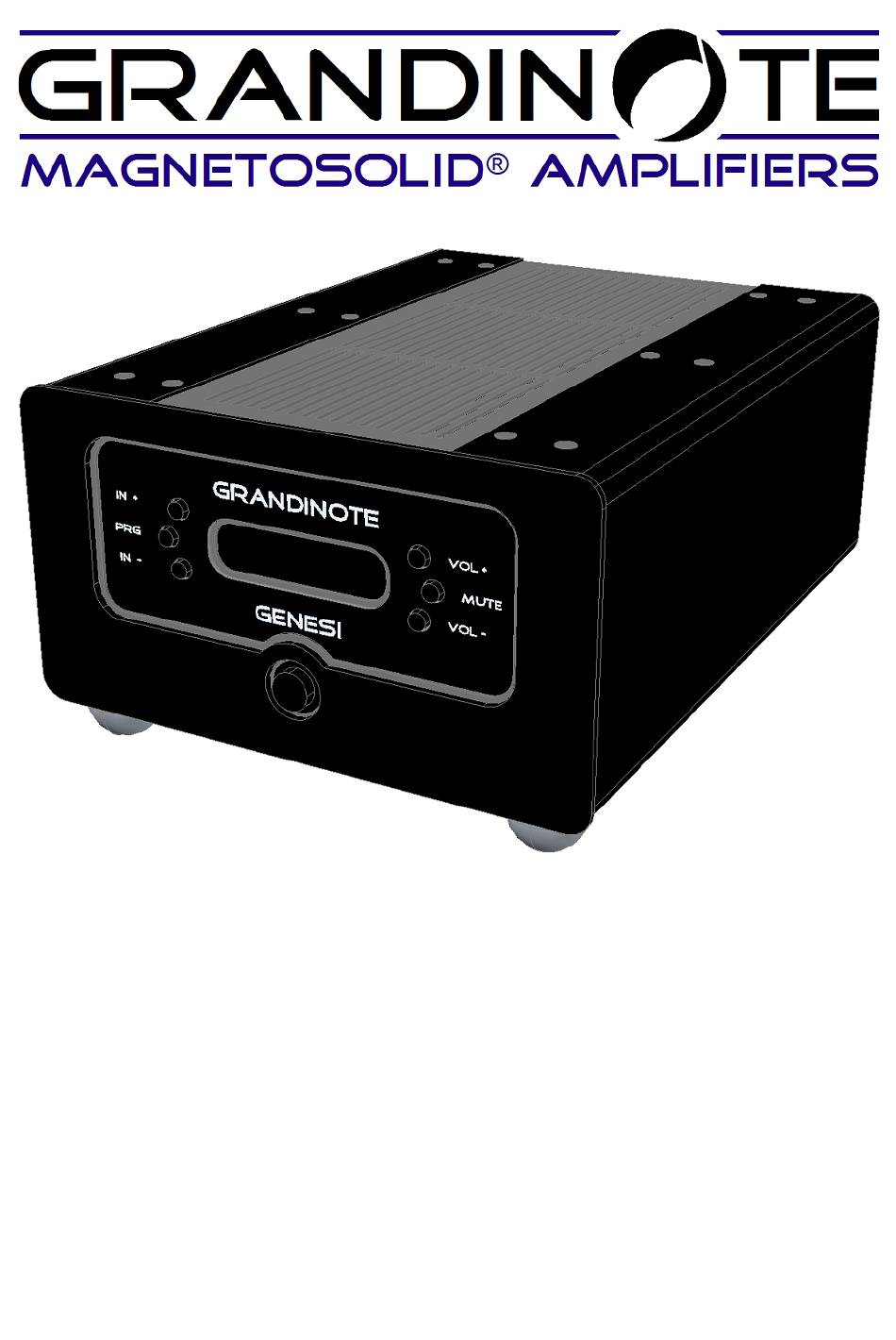

- Page 1 Pag. 1 di 16...
- Page 2 – user manual index introduction Pag. 3 product descrition Pag. 3 specifications Pag. 4 w arnings Pag. 5 Positioning Pag. 6 Connections - Rear Panel Pag. 7 front panel Pag. 8 Remote control Pag. 9 settings Pag. 10 Input's volume Pag.
-
Page 3: Product Descrition
These and other qualities are the result of studies and extensive research by Grandinote. product descrition Grandinote genesi is a audio line preamplifier. -
Page 4: Specifications
No feedback Full dualmono Weight 18kg W=318 x H=196 x L=408 [mm] Voltage power supply 230V Absorption 30W note: These specifications will can change without the obligation to report, by Grandinote. Pag. 4 di 16... - Page 5 – user manual w arnings For the correct and sure use of this product, Grandinote recommends the study and the application of this warning list. Don't open the device. Don't turn off and turn on quickly the device.
- Page 6 In the ”picture 1” we see the correct positioning of the device. The Genesi's red rappresentations indicate the no good positioning for the sound. Especially in front of the loudspeakers. In the rear of the loudspeakers we keep the best sound performances.
-
Page 7: Connections - Rear Panel
– user manual Connections - Rear Panel In the picture 2, we see the device's input-output connectors. The 4 balanced inputs, in1, in2, in3 and in4 are XLR (full balanced). Also the output is balanced XLR (full balanced). -
Page 8: Front Panel
– user manual Front panel In the picture 3, we see the device's front panel. The display is in the middle of panel, below it the power supply switch. (Don't turn off and turn on quickly the device) To the sides of display we see six buttons for the total control to the device. -
Page 9: Remote Control
– user manual Remote control In the picture 4, we see the device's remote control. In the top left: input increase In the down left: input decrease In the top right: volume increase In the middle right: mute management ... - Page 10 – user manual settings Going in program settings, it will be possible to personalize some functions. To start program setting, press PRG key. The display visualize the first setting. Press PRG again, for to confirm and pass to the second setting, until the last setting.
-
Page 11: Input's Volume
– user manual Input's Volume The first 6 settings are for correlate a volume level to every input. If volume level 20 is correlated to input 3, every time the input become 3, the device slowly increases the volume, arriving to 20. -
Page 12: Black Display
– user manual black display This function is for the turn off the display in automatic, if the display don't changes for some seconds. When the utente press a button, the display turns on. So, when the display don't will change again, the display will turn off again. - Page 13 – user manual Balance Balance is for different level of volume between the two channels. Press PRG, to visualize on the display: The up rappresentation is for the same level for the two channels: the balance is totally excluded.
-
Page 14: Remote Control Off
– user manual Remote control off This setting excludes the remote control reception. Press PRG, to visualize on the display "TELE" write: By IN+ and IN- keys on change the “ON” / “OF” status. The next pres on PRG key confirms and leads to the next setting. - Page 15 – user manual Trasform the input one in line output This setting switchs the connectors “In1” from inputs to line outputs. If “In1” are configured like outputs, the total inputs are 3: Press PRG, to visualize on the display "OUT" write: By IN+ and IN- keys on change the “ON”...
- Page 16 Grandinote srls Via primo maggio, 32 27042 Bressana Bottarone (pv) -ital y- P.IV A: 02659140186 COD. FISCALE: 02659140186 COD. IBAN: IT12B0838683800000000382064 BIC/SWIFT: ICRAITRRAQ0 www.grandinote.it grandinote@gmail.com www.facebook.com/grandinote Pag. 16 di 16...
