Features
• Compression molded from our exclusive solid Vikrell
material
• Tongue-and-groove 4-piece modular design allows for
easy "snap together" installation
• Durable high-gloss finish
• 10-year consumer/3-year commercial limited warranty
• Convenient shelves provide generous storage
• Shaving ledge and foot rest added for comfort
• Wall surround allows for attachment of grab bars
• 60" (152.4 cm) x 35-1/4" (89.5 cm) x 77" (195.6 cm)
complete unit rough-in dimensions include nailing
flange
• 60" (152.4 cm) x 34" (86.4 cm) x 75-3/4" (192.4 cm)
complete unit finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ASTM E162
• ASTM E662
• CSA B45.5/IAPMO Z124
Specified Model
Model

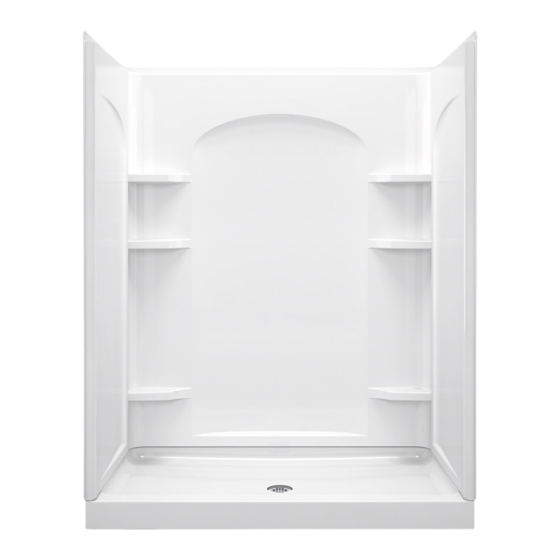

Complete Unit Description
72230106
60" (152.4 cm) shower base and curve wall surrounds with backer boards
Model
Wall Component Description
72232106
Back wall with backer boards
72205106
End wall with backer boards
Page 1 of 2
D
1064361-4-
60" (152.4 cm) SHOWER BASE AND
SURROUND WITH BACKER BOARDS
®
Colors/Finishes
•
0: White
•
Other: Refer to Price Book for additional colors/finishes
ENSEMBLE
TM
72230106
Colors/Finishes
0
Other_____
Colors/Finishes
0
Other_____
0
Other_____
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
Advertisement
Table of Contents
Related Manuals for Sterling Plumbing Shower Receptor and Wall Surround with Backer Boards 72230106
Summary of Contents for Sterling Plumbing Shower Receptor and Wall Surround with Backer Boards 72230106
- Page 1 Features • Compression molded from our exclusive solid Vikrell material • Tongue-and-groove 4-piece modular design allows for easy ″snap together″ installation • Durable high-gloss finish • 10-year consumer/3-year commercial limited warranty • Convenient shelves provide generous storage • Shaving ledge and foot rest added for comfort •...
- Page 2 ENSEMBLE Technical Information Model Door maximum width 72230106 56-5/8″ (143.8 cm) 16" 14" 16" (40.6 cm) (35.6 cm) (40.6 cm) 4-1/2" 15-13/16" (11.4 cm) D. (40.2 cm) Drain Cutout 3-5/16" 30" (76.2 cm) (8.4 cm) D. Drain Hole 60-1/8" (152.7 cm) Min 60-1/4"...
