Features
• Compression molded from our exclusive solid Vikrell
material
• Tongue-and-groove 4-piece modular design allows for
easy "snap together" installation
• Durable high-gloss finish
• Convenient shelves provide generous storage
• Shaving ledge and foot rest added for comfort
• Wall surround allows for attachment of grab bars
• 48" (121.9 cm) x 35-1/4" (89.5 cm) x 77" (195.6 cm)
complete unit rough-in dimensions include flange
• 48" (121.9 cm) x 34" (86.4 cm) x 75-3/4" (192.4 cm)
complete unit finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ASTM E162
• ASTM E662
• CSA B45.5/IAPMO Z124
Specified Model
Model
Complete Unit Description
72220106
48" (121.9 cm) shower base and wall surround with backer boards
Model
Wall Component Description
72222106
Back wall with backer boards
72205106
End wall set with backer boards
Page 1 of 2
C
1064360-4-

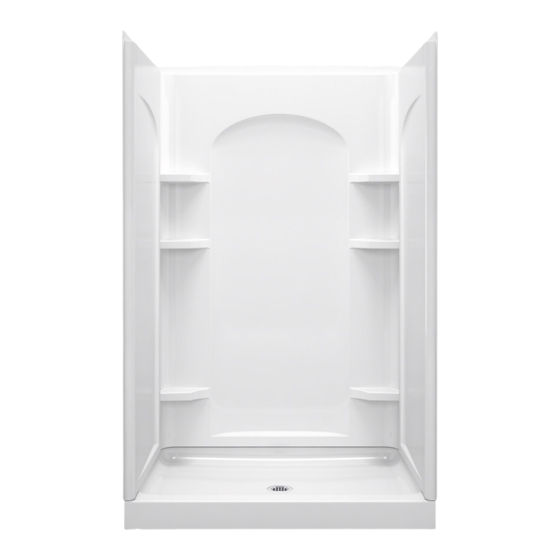

48" (121.9 cm) SHOWER BASE AND
SURROUND WITH BACKER BOARDS
®
Colors/Finishes
•
0: White
•
Other: Refer to Price Book for additional colors/finishes
ENSEMBLE
72220106
Colors/Finishes
0
Other_____
Colors/Finishes
0
Other_____
0
Other_____
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
