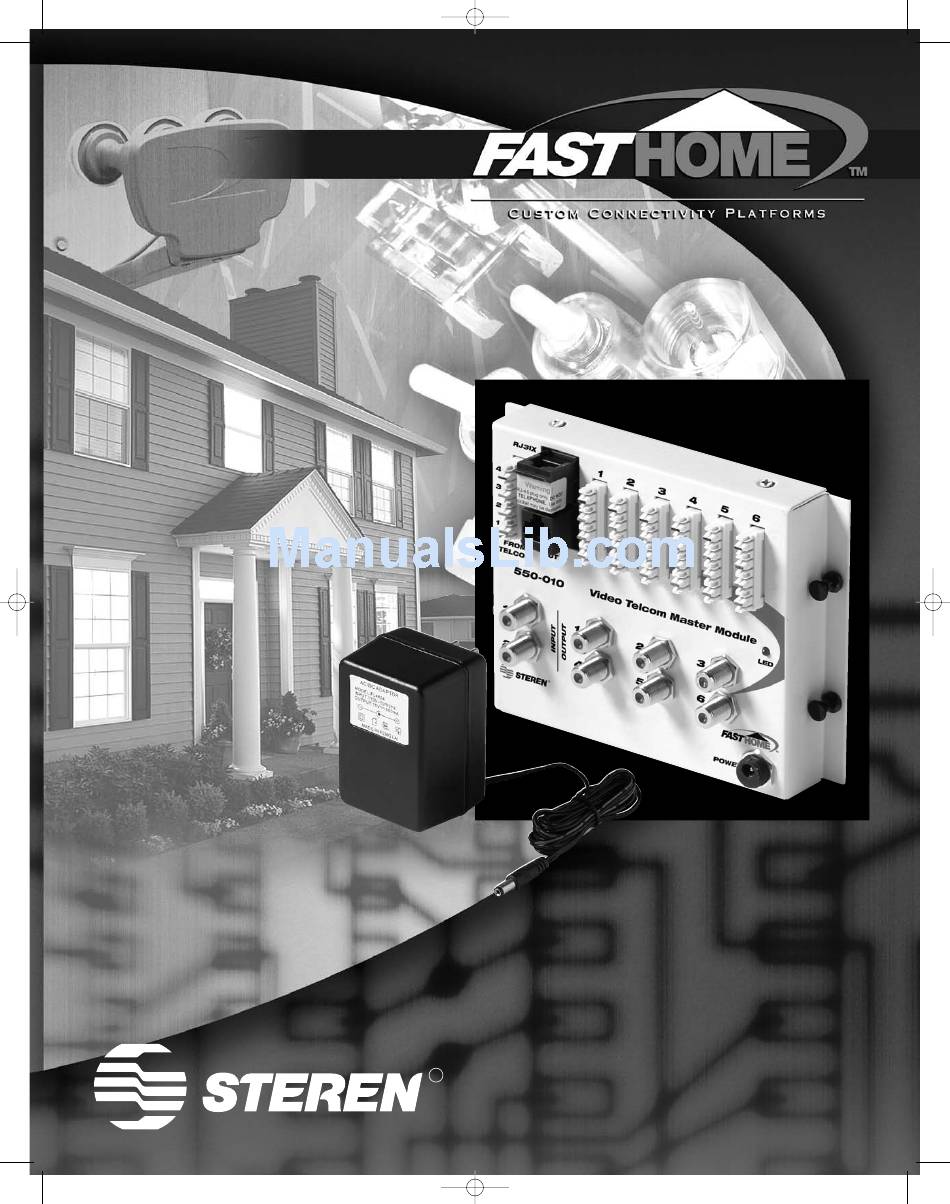

550-010Manual.qxd
7/6/04
3:28 PM
Page 1
Fast Media
Fast Media
Home Network
Home Network
Systems
Systems
Installation
Installation
Guide
Guide

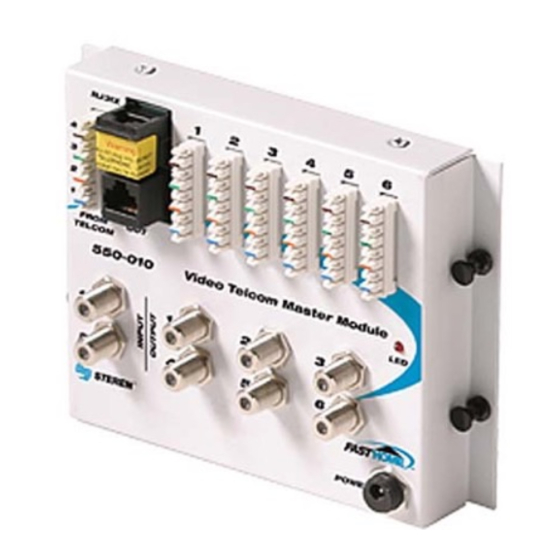

550-010
Fast Media
Telephone/TV Hub Module
6
1
/
˝ (W) x 4
3
/
˝ (H) x 1˝ (D)
2
4
Manufactured by:
Steren Electronics International, LLC
R
8675 Miralani Drive, San Diego, CA 92126
1-800-266-3333
www.steren.com
Advertisement
Related Manuals for Steren 550-010
Summary of Contents for Steren 550-010
- Page 1 Home Network Home Network Systems Systems Installation Installation Guide Guide 550-010 Fast Media Telephone/TV Hub Module ˝ (W) x 4 ˝ (H) x 1˝ (D) Manufactured by: Steren Electronics International, LLC 8675 Miralani Drive, San Diego, CA 92126 1-800-266-3333 www.steren.com...
- Page 2 ™ Series Thank you for purchasing this product, part of the FastHome Network Systems by Steren. You have made an excellent choice for the homeowner. The FastHome ™ Series of enclosures and modules provide a quality control center for the wiring of cable TV, phone/fax/modem, Ethernet, security, sound system and other voice, video, data and audio devices.
-
Page 3: Installation Instructions
4. Place 75-Ohm termination caps over unused TV hub ports to improve video reception. 5. Connect the 9VDC power supply cord to the power input jack. 550-010 Telephone/TV Hub Module Installation Guide ™ module offers a connection to the security system that... - Page 4 FastHome ™ Modules High-quality FastHome ™ modules by Steren provide secure, reliable connections for voice, video, data and audio applications. Each module is housed in a sturdy 18-gauge cold rolled steel construction for excellent RFI shielding. The system is expand- able by adding multiple modules.
