Steiner Turf LS340 Operator's Manual & Illustrated Parts

Steiner turf lawn owner/operator's manual & illustrated parts list

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

LAWN SWEEPER

Model LS340

Starting Serial No. 1001

Owner/Operator's Manual

& Illustrated Parts List

CAUTION

Avoid injuries. Read and understand Operator's manual

before operating tractor or equipment.

It contains instructions for safe operation.

Form # 09-164

Table of Contents

Need help?

Do you have a question about the LS340 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steiner Turf LS340

Page 1 LAWN SWEEPER Model LS340 Starting Serial No. 1001 Owner/Operator's Manual & Illustrated Parts List CAUTION Avoid injuries. Read and understand Operator’s manual before operating tractor or equipment. It contains instructions for safe operation. Form # 09-164...
Page 2: Damaged Parts
Dealer Name _________________________Phone__________________ Serial Number ________________________ Model Number ________________________ ALWAYS GIVE MODEL AND SERIAL NUMBER WHEN ORDERING SERVICE PARTS CAUTION STEINER TURF EQUIPMENT, INC. 289 N. Kurzen Rd., P.O. Box 504 Dalton, Ohio 44618 Telephone: (330) 828-0200 FAX: (330) 828-1008...
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Description ......... . 2 Specifications .
Page 4: Introduction

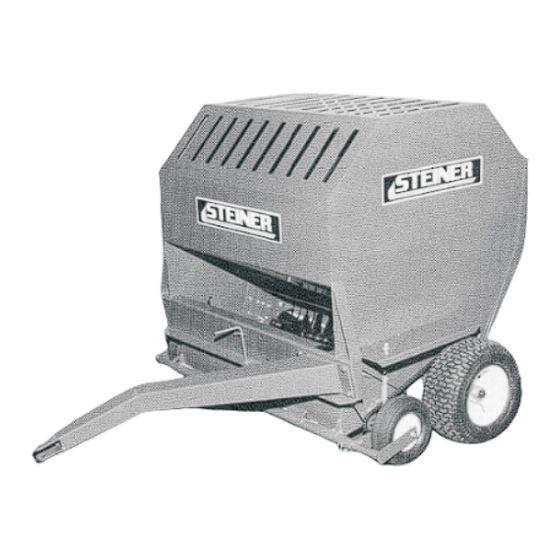

INTRODUCTION The Steiner Lawn Sweeper is designed to give a “clean sweep” in your lawn sweeping operations. The unit is ground-driven so it can be pulled by any lawn and garden tractor. It can be used to trail behind with offset hitch while mowing, or regular hitch to clean-up after you've finished mowing. The packing action allows you to put much more material into the unit before it is necessary to unload.
Page 5: Introduction Section
INTRODUCTION section 1.2 Specifications Overall width _ _ _ _ _ _ _ _ _ _ _ _ _ _ 62" Overall height _ _ _ _ _ _ _ _ _ _ _ _ _ _ 52" Overall length to hitch_ _ _ _ _ _ _ _ _ _ _ 66" Width of pick up _ _ _ _ _ _ _ _ _ _ _ _ _ 40"...
Page 6: Safety
SAFETY ATTENTION: This symbol identifies potential health and safety hazards. It marks safety precautions. ATTENTION: Your safety is involved. 1. Read and understand the owner's manual, before attempting to operate this machine. 2. Operate all controls from the operator's seat. NO RIDERS. 3.
Page 7: Operation
OPERATION › 1. Determine hitch position for offset or straight pull position. › 2. Transport to clean-up site with the clutches disengaged and sweeper in transport position. › 3. Lower the sweeper housing and adjust sweeper height on right side of sweeper housing by choosing the pin location to regulate gauge wheel height.
Page 8: Service
SERVICE Section 5.1 Maintenance Daily Visually check chain drive - it should not run “dry”. Lube with chain lube or 30W oil Weekly or 50 Hours Grease all bearings and wheels. Check tire pressure (12 lbs.) rev 6/00 09-164...
Page 9: Parts List And Illustrations Index
PARTS Section 6.1 Parts Index GROUP FIGURE PAGE Main Parts....Fig. 1 ..... . . 8 Brush Parts .
Page 10 PARTS section 6.2 Main Parts Figure 1 rev 6/00 09-164...
Page 11: Parts Section
PARTS Part no. Description 62-602 Main Frame 60-187 Door 42-205 Hinge Rod 02-CP0406 Cotter Pin, 1/8 x 3/4 41-010 Spring, 5" 40-114 Latch, Right 40-115 Latch, Left 83-407016 Sprocket 41-013 Spring 86-020 Clutch Pawl, Right 86-021 Clutch Pawl, Left 85-K0410 Key, 1/4 x 1-1/4 86-043 Clutch...
Page 12 PARTS section 6.4 Brush Parts Figure 2 rev 6/00 09-164...
Page 13 PARTS Part no. Description 62-385 Housing, Brush 92-08 Nut, 1/2 92-06 Nut, 3/8 42-209 Adjuster, Spring Tension 41-010 Spring, 5" 95-10 Flat Washer, 5/8 SAE 53-104 Wheel, 10.25 x 3.25 Caster (Serial No. 1001 - 1559) 55-G527 55-107 53-186 Wheel, 10.25 x 3.25 Caster (Serial No. 1560 - ) 55-112 53-187 90-0640...
