Silex technology SX-550 Developer's Reference Manual

Embedded intelligent module
Hide thumbs Also See for SX-550:
Table of Contents

Advertisement

Quick Links

Download this manual

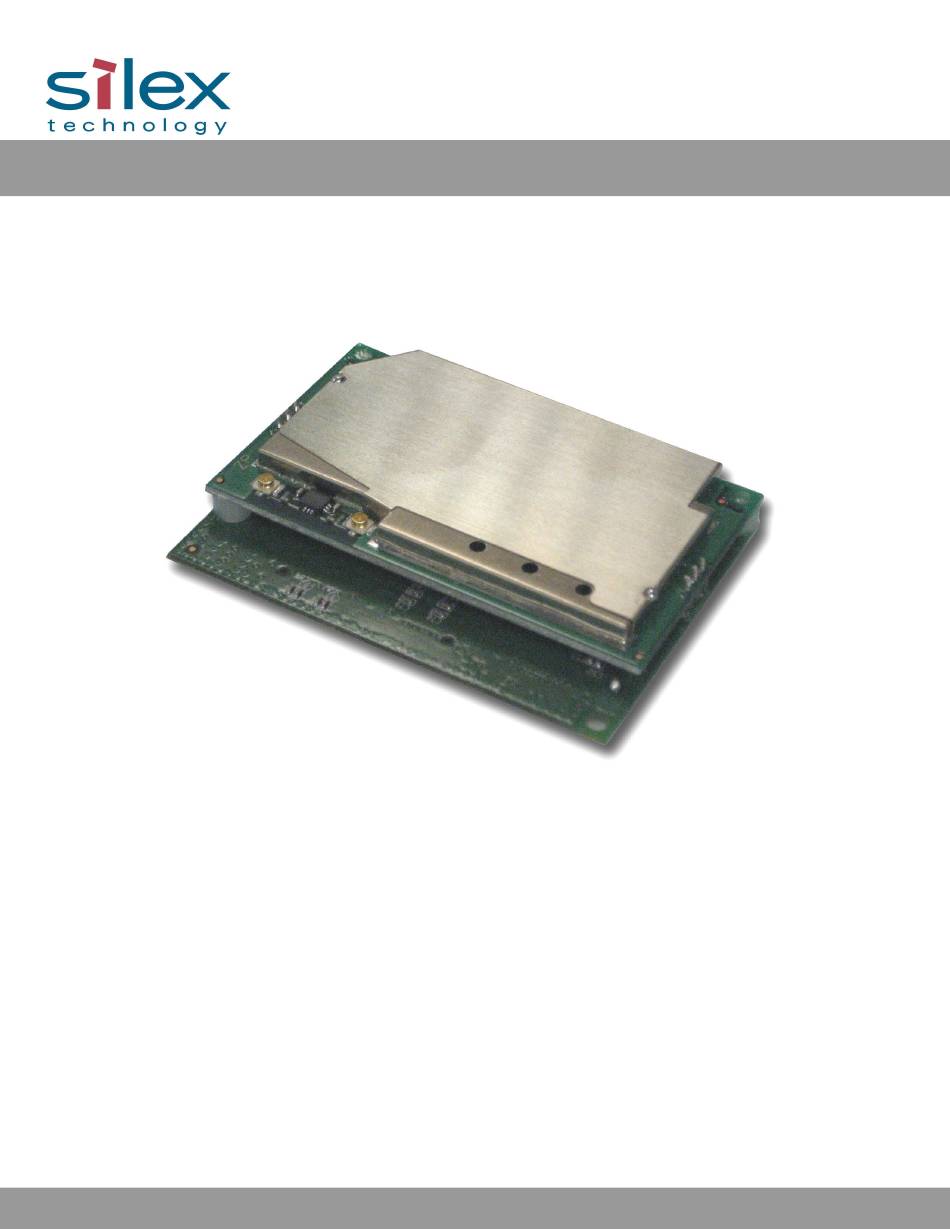

SX-550 Embedded Intelligent Module
Developer's Reference Guide
Revision L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silex technology SX-550

Summary of Contents for Silex technology SX-550

  • Page 1 SX-550 Embedded Intelligent Module Developer’s Reference Guide Revision L...
  • Page 2 GNU General Public License are available in the license folder on the CDROM that ships with this product. Trademarks ExtendView is a trademark of Silex Technology America, Inc. All other company or product names referenced in this document may be trademarks or registered trademarks of their respective owners.

  • Page 4: Table Of Contents

    Configuring the SX-550............................19 Basic Configuration Requirements........................19 Configuration Methods............................20 Using the ExtendView Utility to Configure the SX-550 (Ethernet Connection)............21 First-Time IP Address Configuration ........................24 Using a Web Browser to Configure the SX-550....................27 Using the Internal Command Console to Configure the SX-550.................29 Chapter 4 Using the SX-550 with Your Application.........................33...
  • Page 5 Chapter 5 Interfacing the SX-550 to the OEM Device......................41 OEM Header Interface............................43 Antenna Connectors............................46 Ethernet PHY..............................48 Transformer Specification..........................48 General Purpose I/O Interface..........................49 Power..................................50 Chapter 6 Advanced Configuration............................51 Factory Default Settings............................51 Restoring Factory Default Settings........................52 Modifying TCP/IP Settings ..........................52 Configuring SNMP..............................54 Configuring the General Purpose I/O (GPIO) Lines....................56...
  • Page 6 Silex Contact Information............................114 Figures Figure 1 SX-550-1701 (left) and SX-550-2701 (right)....................4 Figure 2 Installing SX-550 Module in Evaluation Daughtercard (SX-550 WLAN version shown)......5 Figure 3 SX-550 Module Inserted in Daughtercard (SX-550-1701 WLAN version shown)........7 Figure 4 Antenna Connectors..........................7 Figure 5 Optional Serial Signals..........................12 Figure 6 Serial Port DB-9 Connector........................12...
  • Page 7 Table 34 TCP Port Connections..........................77 Table 35 Network Commands..........................82 Table 36 Port Commands............................89 Table 37 Server Information Commands.......................90 Table 38 Service Commands..........................92 Table 39 String Commands...........................94 Table 40 TCP/IP Commands..........................95 Table 41 Power Configuration ..........................99 Part Number 40183-101 Silex SX-550 Developer's Guide Page iv...
  • Page 8 Table 42 Firmware Update..........................100 Table 43 Miscellaneous Commands........................101 Table 44 Antenna Specifications.........................105 Part Number 40183-101 Silex SX-550 Developer's Guide Page v...

  • Page 9: About This Reference Guide

    About This Reference Guide This reference guide provides detailed specifications, diagrams and additional information required to integrate the SX-550 embedded intelligent module in a product. The intended audiences are the developers and engineers responsible for the integration of the module in another product.
  • Page 10 Part Number 40183-101 Silex SX-550 Developer's Guide Page 2...

  • Page 11: Chapter 1: Introduction

    Ethernet-to-802.11 bridge mode feature is enabled. Important: The SX-550-1701 model does NOT include FCC Modular Approval, so it is the responsibility of the OEM to test for compliance with FCC Part 15 Subparts C and E and RSS-210 intentional radiation standards.

  • Page 12: Figure 1 Sx-550-1701 (Left) And Sx-550-2701 (Right)

    • AP density (roaming control) supported on the SX-550-1701 and not on the SX-550-2701 • WPA group key for link encryption supported on the SX-550-1701 and not on the SX- 550-2701 • Blank SSID indicating any SSID OK supported on the SX-550-1701 and not on the SX- 550-2701 To expedite the development process, the SX-550-6900 Evaluation Daughtercard is available.

  • Page 13: Installing The Evaluation Daughtercard

    The SX-550-6900 Evaluation Daughtercard is designed to help you in the development of the necessary hardware and software required to use the SX-550 module. It includes I/O connectors, cables, and power supply in an easy-to-use package. The SX-550 Module is installed in the Evaluation Daughtercard as shown in Figure 2.

  • Page 14: Verify Development Kit Contents

    One (1) 18-pin header for selecting GPIOs as modem controls Verify Development Kit Contents The SX-550-6900 Evaluation Module Development Kit consists of the components listed in Table 1. Please ensure that all materials listed are present and free from visible damage or defects before proceeding.

  • Page 15: Installing The Sx-550 Module

    Figure 3 SX-550 Module Inserted in Daughtercard (SX-550-1701 WLAN version shown) 2. If you are installing a SX-550 WLAN model, plug the main antenna cable into the Primary Antenna Connector on the card (see picture below). If needed, plug the auxiliary antenna cable into the Auxiliary Antenna Connector.

  • Page 16: Monitoring Module Status

    3. If you are installing an SX-550 WLAN model, connect the magnetic antenna base cable to the antenna cable. 4. If you are installing an SX-550 WLAN model, connect the antenna to the base. 5. Connect one serial null-modem cable from the Serial Port 2 DB-9 connector on the Evaluation Daughtercard to a serial port on a personal computer or laptop.

  • Page 17: Oem Interface

    OEM Interface The OEM interface is a 40-pin header that is used to connect the SX-550 module to the SX-550-6900 Evaluation Daughtercard. It will also serve as the primary means of communications between the SX-550 and your OEM device (refer to Chapter 5 for information on using this header to connect with your device).

  • Page 18: Table 4 Oem Interface Signal Description

    For Manufacturing use only. Do not Connect. RESET_N Output Power-on Reset (low true) +3.3VDC 8, 14, 27, 33 Power Power VCC Input 13, 19, 20, 23, Power Power Ground 28, 34, 37, 38 Part Number 40183-101 Silex SX-550 Developer's Guide Page 10...

  • Page 19: Electrical Characteristics

    Power of +3.3VDC ±5% is input to the SX-550 Module via the OEM header, J5. Power Management Power for the SX-550 Module is less than 3 watts in normal power mode and peak consumption is less that 3.3 watts. In low power mode average power is 1.2 watts.

  • Page 20: Using The Optional Serial Signals

    Standard serial RS-232 signals are available on the DB-9 connectors J2 and J3 for serial ports 1 and 2, as shown in Figure 6. Figure 6 Serial Port DB-9 Connector Table 6 DB-9 Pinouts for RS-232 Mode DB-9 RS-232 Signal Part Number 40183-101 Silex SX-550 Developer's Guide Page 12...

  • Page 21: General Purpose I/O

    Via JP3 GPIO_2 Via JP3 33.3V GPIO_3 Via JP3 5GPIO_4 Via JP3 7GPIO_5 Via JP3 GPIO_6 Via JP3 9GPIO_7 3.3V 11GPIO_ GPIO_9 13GPIO_ 15  3.3V 17   19   Part Number 40183-101 Silex SX-550 Developer's Guide Page 13...

  • Page 22: Table 8 General Purpose I/O Signal Description

    1 = not reset (default) 0 = reset# 6/6 mA PCI_LED2YP input 6/6 mA PCI Power Management Event# input 6/6 mA PCI Clock 1 = clock off 0 = run# (default) Part Number 40183-101 Silex SX-550 Developer's Guide Page 14...

  • Page 23: Leds And General Purpose Io Signals

    PC 9-pin serial connector, so this cable can be used to directly connect a PC to Serial Port 2 for use as a console terminal to configure the SX-550. It can also be used to connect many types of OEM serial devices to Serial Port 1, provided that these devices use PC-compatible 9-pin connectors.

  • Page 24: Additional Oem Interface Signals

    The Test Button is normally used either to send configuration information to a printer (button momentarily pressed) or to reset the SX-550 to its default configuration (button held down for more than 5 seconds).

  • Page 25: Oem Interface Electrical Characteristics

    Output high voltage Ioh = 6mA Volts GPIO 1 to 10, Reset_N Output low voltage Iol = 6mA Volts GPIO 1 to 10, Reset_N Input Leakage Current 0 < Vin < 3.3v µA Part Number 40183-101 Silex SX-550 Developer's Guide Page 17...
  • Page 26 Part Number 40183-101 Silex SX-550 Developer's Guide Page 18...

  • Page 27: Configuring The Sx-550

    IMPORTANT: This chapter assumes that you are either using the SX-550-6900 Evaluation Daughtercard or that you have made the appropriate connections to the SX-550 module OEM Header. Refer to Chapter 2 and Chapter 5 for information on connecting to the SX-550 hardware.

  • Page 28: Configuration Methods

    These web pages provide an easy-to-use graphical interface for configuring the SX-550. In order to use the internal web pages for the first time, you must assign the SX-550 IP address using some other method (for example, DHCP or arp/ping). This initial IP address assignment need only be done one time.

  • Page 29: Using The Extendview Utility To Configure The Sx-550 (Ethernet Connection)

    Connection) NOTE: Skip this section if you do not have a Windows PC or if you do not have an Ethernet connection to the SX-550. The ExtendView Utilty is the easiest way to initially configure the SX-550 from a Windows PC because it allows you to directly set the IP address into an unconfigured SX-550, and it allows you to view the IP addresses of all of the SX-550s on your network.
  • Page 30 Chapter 6 for information). This advanced configuration can be done at a later time, however. NOTE: If you are using DHCP on your network, the SX-550 should have acquired valid IP settings at this point and no further configuration is necessary. However, for some installations, a static IP address is preferred.
  • Page 31 To operate on an 802.11a/b/g network, the SX-550 configuration must be configured with the wireless configuration and security parameters necessary for the SX-550 to communicate over your wireless network (check with your network administrator if you do not know these parameters).

  • Page 32: First-Time Ip Address Configuration

    NOTE: Skip this section if you have already configured the SX-550 IP address with ExtendView If you are configuring the SX-550 from a non-Windows computer or if you cannot use an Ethernet connection, you must first configure the SX-550 IP address. Note that it is only necessary to perform this Part Number 40183-101...
  • Page 33 Write down this address for future reference. You are now ready to configure the SX-550 (skip the remainder of this section). If you can connect the SX-550 via Ethernet but do not have a DHCP server, then you must use the following procedure for the first-time IP configuration of the SX-550.
  • Page 34 If you can connect to an ASCII terminal (such as a PC running the HyperTerminal Accessory program) to serial port 2 on the SX-550, you can configure an IP address using the internal command console. To do this, set the terminal to 115.2Kbps, 8-bit characters, no parity, and no flow control.

  • Page 35: Using A Web Browser To Configure The Sx-550

    Using a Web Browser to Configure the SX-550 You may skip this section if you have completely configured the SX-550 using ExtendView. However, if you have advanced configuration requirements, such as 802.1X EAP configuration, then you may need to use the internal web pages as described in this section because ExtendView does not support these capabilities.
  • Page 36 However, for some installations, a static IP address is preferred. If your DHCP server does not allow the SX-550 to keep its assigned IP address permanently, then you must manually assign an IP address. In this case, use a static IP address outside the range reserved for DHCP (see your DHCP server documentation for details).

  • Page 37: Using The Internal Command Console To Configure The Sx-550

    Using the Internal Command Console to Configure the SX-550 You may skip this section if you have completely configured the SX-550 using ExtendView or the SX-550 Internal Web Pages. However, if you are using the bridge mode, you MUST use the Internal Command Console (see Chapter 4 for information on configuring bridge mode.
  • Page 38 2. When the SX-550 is powered on, you will see some information about the firmware versions and copyright notices displayed on the terminal. When you see the Local> prompt, you can enter commands. The SX-550 is set by default to use DHCP to obtain the IP address automatically. If you want to set the IP address manually, enter the following commands: SET IP ADDRESS aa.bb.cc.dd...
  • Page 39 IMPORTANT: The console command EXIT must always be used in order to save the changes you made with the internal command Console. 7. After an IP address is configured in the SX-550, you can also access the Internal Command Console in any of the following ways: •...
  • Page 40 Part Number 40183-101 Silex SX-550 Developer's Guide Page 32...

  • Page 41: Using The Sx-550 With Your Application

    Chapter 4 Using the SX-550 with Your Application The SX-550 includes a number of capabilities that enable it to be used in a wide range of applications. These capabilities include: 1. User interface customization 2. Power configuration 3. Serial Port Emulator (SPE) software 4.

  • Page 42: Customizing The Sx-550 User Interface

    COM port that functions exactly like the Windows COM1 and COM2 serial ports, except that the I/ O actually goes out over the Ethernet or WLAN to the SX-550 and to the serial device that is connected to the SX-550. As a result, any application program that uses a standard Windows COM port can also use the Serial Port Emulator.

  • Page 43: Raw Tcp Connection

    You can communicate directly from your application program to the SX-550 using a raw TCP connection. This is done by opening a TCP port on the SX-550 and then sending and receiving data to this port via a socket or equivalent API. This method is more efficient than using the Serial Port Emulator, and does not require any additional software to be installed on your computer.

  • Page 44: Rfc 2217 Support

    RFC 2217 allows you to connect from a host computer over the wireless or Ethernet network to a serial device attached to the serial port of the SX-550, even if the baud rate of that device does not match the baud rate of the host computer’s software.
  • Page 45 Changing this interval will reduce or increase the amount of network traffic. 5. It is also possible to use UDP instead of TCP for communicating to and from the SX-550. If you wish to use UDP, then: a.

  • Page 46: Print Server Mode

    The SX-550 supports FTP binary or ASCII communications. This can be used, for example, to send the contents of a file from a PC to a device connected to the SX-550 using the FTP protocol. To use FTP, simply enter the standard FTP command from your PC with the IP address of the SX-550 (for example, 192.168.5.50).

  • Page 47: At Commands

    SNMP Traps, Email Alerts, and GPIO Status The SX-550 allows the user to define various alert conditions based on the state of the GPIOs or on data received by the serial port. For example, you could cause an alert to occur if the signal on GPIO 3 goes low, or if a certain user-defined string of characters is received on the serial port.

  • Page 48: Bridge Mode

    Bridge Mode The SX-550 can work as a transparent bridge from Ethernet to 802.11a/b/g. This is useful for allowing a device that have an Ethernet interface to be used on a wireless network. Operation is totally transparent, so there is no modification required to the device’s software or firmware.

  • Page 49: Interfacing The Sx-550 To The Oem Device

    Interfacing the SX-550 to the OEM Device In order to connect the SX-550 module to your device, you will need to provide either a custom daughtercard or a special cable. Both of these solutions will require a 40-pin female connector on one side, with the appropriate connector(s) for connecting to your device’s circuitry on the other side.
  • Page 50 Part Number 40183-101 Silex SX-550 Developer's Guide Page 42...

  • Page 51: Oem Header Interface

    It includes the necessary pins for serial data I/O, GPIO, and power. Table 12 describes the OEM header interface pinout for the SX-550 module. Table 13 shows the OEM interface signal descriptions. All input and output signals, except the differential signals, are 0 to 3.3V logic signals.

  • Page 52: Table 13 Oem Interface Signal Description

    13, 19, 20, 23, Power Power Ground 28, 34, 37, 38 The SX-550 module uses the 40-pin 1.27 mm pitch male header by Gradconn part number BB02-BK401- K03-3040B0. Mating 4.6 mm tall female headers are: Gradconn Interconnect part number: BB02-CL402-K03-000000 www.gradconn.com...
  • Page 53 E-tec Interconnect part number: BS2-040-H450-11/11AT www.e-tec.ch Part Number 40183-101 Silex SX-550 Developer's Guide Page 45...

  • Page 54: Antenna Connectors

    IMPORTANT: Silex does not recommend soldering the SX-550 directly to your device’s daughteroard. Soldering the SX- 550 will violate the standard warranty. If you must solder the SX-550, please contact Silex Technical Support at 866-765- 8761 (U.S. toll-free) or +1-801-748-1199, or e-mail us at support@silexamerica.com...

  • Page 55: Table 14 Antenna Connector Types

    500 MOhm @ 100 VDC minimum Antenna Cable Plug iPEX 90 degrees plug with right angle receptacle and cable diameter at 1.32 For the antenna connector, the SX-550 module uses a Hirose U.FL-R-SMT (CL331-0471-0-01) ultra miniature coaxial receptacle. Mating plugs are: Hirose part number: U.FL-LP-066 www.hirose.co.jp...

  • Page 56: Ethernet Phy

    30 to 60 MHz dB minimum 60 to 80 MHz Differential to dB maximum 1 to 60 MHz Common Mode dB minimum 60 to 1000 MHz Injection  Transformer Isolation 1500 Part Number 40183-101 Silex SX-550 Developer's Guide Page 48...

  • Page 57: General Purpose I/O Interface

    0 = illuminated O or I/O 6/6 mA LED_2 or used as a GPIO 1= off 0 = illuminated O or I/O 6/6 mA LED_3 or used as a GPIO 1= off Part Number 40183-101 Silex SX-550 Developer's Guide Page 49...

  • Page 58: Power

    Power is input to the SX-550 Module using the 40-pin OEM Header. Required voltage is 3.3VDC ± 5%. At full power, the current consumption is 900mA (WLAN model) or 628mA (Ethernet model). In low power mode with the processor clock at 60MHz and the SX-550 in power save mode, the current consumption is 370mA.

  • Page 59: Advanced Configuration

    Chapter 6 Advanced Configuration The SX-550 module is equipped with a default configuration that works with most serial-to-Ethernet connections. You can modify the settings to suit your installation requirements. The web browser interface is the recommended method for setting advanced configuration parameters (some of the advanced configuration parameters are not accessible via ExtendView).

  • Page 60: Restoring Factory Default Settings

    Disable Restoring Factory Default Settings The factory default settings can restored at any time. If you are using the SX-550 Evaluation Daughtercard, hold down the test button for more than five seconds. If you are not using the evaluation board, short GPIO7 on the OEM header to ground (4.7 K-ohm pull-up resistor connected to +3.3VDC) for more than five seconds.

  • Page 61: Figure 9 Change Password Window

    Type the new password in the New Password field, then in the Verify Password field. Click OK to change the password or click Cancel to exit. Click Advanced TCP/IP. The Advanced TCP/IP Configuration window displays. Part Number 40183-101 Silex SX-550 Developer's Guide Page 53...

  • Page 62: Configuring Snmp

    For additional help, click Help. : You can configure the same settings using the Web Page configuration. Simply log in using the SX-550 IP address and select TCP/IP. For the changes to become effective, click the Submit button, then reset the SX-550.

  • Page 63: Table 21 Snmp Commands

    This is the only message initiated by the SNMP agent. To configure the SNMP server settings: Log into the SX-550 internal web pages using a standard web browser. Click Server Settings to access the screen shown in Figure 10. You can then enter the relevant SNMP information for your network.

  • Page 64: Configuring The General Purpose I/O (Gpio) Lines

    Figure 11 SNMP Configuration Click the Submit button to save the changes. You must then restart the SX-550 to make the changes take effect. Configuring the General Purpose I/O (GPIO) Lines The SX-550 module has eight General Purpose I/O (GPIO) lines available for use on connector J7.

  • Page 65: Table 22 Gpio General Commands

    Local> set gpio dir in 1 Local> set gpio dir out 2 Local> show gpio dir GPIO Direction -------------- 1 [IN] 2 [OUT] 3 [IN] 4 [IN] 5 [SPCL] 6 [SPCL] 7 [SPCL] 8 [SPCL] Part Number 40183-101 Silex SX-550 Developer's Guide Page 57...
  • Page 66 SHOW GPIO SPECIAL Shows the current setting of the GPIO special function configuration (note that GPIO #7 in this display is actually GPIO_9, while GPIO #8 is actually GPIO_10). Part Number 40183-101 Silex SX-550 Developer's Guide Page 58...
  • Page 67 GPIO 1 and 2, which do not have special functions. SHOW GPIO SPECM Shows GPIO special functions control bits as a mask value. Example: Local> set gpio specm 80 Local> show gpio specm GPIO special function mask=80 Part Number 40183-101 Silex SX-550 Developer's Guide Page 59...

  • Page 68: Table 23 Gpio Trigger Commands

    0 to 1 transition, and one for a 1 to 0 transition. If a GPIO is set for its special function, no trigger is possible on that pin. Example: Part Number 40183-101 Silex SX-550 Developer's Guide Page 60...
  • Page 69 NOTE: The trigger configuration is not changed by a configuration reset to default. SHOW GPIO TRIGM Shows all trigger control bits. Part Number 40183-101 Silex SX-550 Developer's Guide Page 61...
  • Page 70 <trigger #> is 1-16, and indicates the trigger condition for which the string is being set. The remainder of the line is taken as the string for the indicated trigger number. Part Number 40183-101 Silex SX-550 Developer's Guide Page 62...

  • Page 71: Table 24 Gpio Transmit Commands

    Local> show gpio tran Trig # Email String ------ ------------ your email text msg here GPIO #2 is 1 Local> show gpio tran 1 1: GPIO #1 is 1 Table 25 GPIO Data Commands Part Number 40183-101 Silex SX-550 Developer's Guide Page 63...
  • Page 72 GPIO Data In ------------ GPIO #1 [1] GPIO #2 [1] GPIO #3 [0] GPIO #4 [1] GPIO #5 [1] GPIO #6 [1] GPIO #7 [0] GPIO Data Out ------------- GPIO #8 [1] Part Number 40183-101 Silex SX-550 Developer's Guide Page 64...

  • Page 73: Table 26 E-Gpio Tcp Monitor Commands

    Table 26 E-GPIO TCP Monitor Commands The E-GPIO TCP monitor allows a computer system to access the SX-550 GPIO pin values. If enabled, this monitor will attempt to make a TCP connection to the remote computer specified. Once connected, the monitor will periodically send the state of the GPIO pins to the remote computer.

  • Page 74: Table 27 Gpio Snmp Management

    This is an integer representing a bit mask indicating what GPIO pins are available. There is a 1 for each GPIO pin that is present. For the SX-550, this value is 255 (xFF), indicating 8 GPIO pins. Part Number 40183-101...
  • Page 75 GPIO transmit string table index Integer read-only gpio.5.1.1.n This value is the index into the GPIO message table for trigger number n. For the SX-550, this always returns n as its value. Part Number 40183-101 Silex SX-550 Developer's Guide Page 67...
  • Page 76 This item returns the GPIO transmit string for trigger number n, if a string is defined. The string may be defined even if the corresponding trigger is not currently enabled. Part Number 40183-101 Silex SX-550 Developer's Guide Page 68...

  • Page 77: Configuring Serial Port Monitor Alert And Trap Configuration

    Configuring Serial Port Monitor Alert and Trap Configuration The SX-550 module can be configured to scan and compare the data received on the serial port to user- defined strings. A match with a string can be a source for SNMP traps and/or email alerts.

  • Page 78: Setting Up Email Alerts And Snmp Traps

    Setting up Email Alerts and SNMP Traps After you have created the GPIO and/or Serial Port alerts and traps, you can the use the SX-550 internal web pages to set up the recipient Email addresses and/or computer systems. After you have logged into the internal web pages, click Alerts and Traps on the left side of the screen and select either Email Alerts or SNMP IP Traps.

  • Page 79: Standard At Commands Supported

    If the connection cannot be attempted, NO CARRIER status is returned. If the connection attempt fails, NO ANSWER status is returned. If the connection succeeds, CONNECT status is returned. Part Number 40183-101 Silex SX-550 Developer's Guide Page 71...

  • Page 80: Table 30 Extended At Commands

    Console Quiet mode AT#Qn If n = 0, a response to a #C command is given. If n = 1, the response is not provided. The default after reset is 1. Part Number 40183-101 Silex SX-550 Developer's Guide Page 72...

  • Page 81: Response Codes

    The ExtendView Utility has a powerful bulk configuration capability that allows you download configuration information to multiple SX-550s simultaneously. This can save you a significant amount of time compared to configuring each SX-550 individually. To use this capability: 1. From the ExtendView menu bar, select View and then Multi-Select Mode.

  • Page 82: Product Specifications

    IEEE 802.11a: Channels 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157 and 161 Data Rate 54 Mbps with fallback rates of 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, and 1 Part Number 40183-101 Silex SX-550 Developer's Guide Page 74...
  • Page 83 24Mbps 14.3 36 Mbps 14.3 48 Mbps 11.6 54 Mbps 11.6 Transmitter 6 Mbps 16.1 Power Output high 9 Mbps 16.1 band (802.11a) 12 Mbps 15.6 18 Mbps 15.6 24Mbps 14.8 Part Number 40183-101 Silex SX-550 Developer's Guide Page 75...
  • Page 84 (10%PER) 6 Mbps (10%PER) 9 Mbps (10%PER) 12 Mbps (10%PER) Transmitter 18 Mbps Power (10%PER) Output high band 24 Mbps (802.11a) (10%PER) 36 Mbps (10%PER) 48 Mbps (10%PER) 54 Mbps (10%PER) Part Number 40183-101 Silex SX-550 Developer's Guide Page 76...

  • Page 85: Tcp Port Connections

    TCP Port Connections The SX-550 module supports port connections over TCP/IP using raw TCP ports only. Table 34 describes the TCP ports allocations. Table 34 TCP Port Connections Port Destination Device 3001 RS-232 9100 RS-232 9200 RFC 2217 Part Number 40183-101...

  • Page 86: Advanced Security Configuration

    There are numerous possible security settings. It is therefore important that you verify the appropriate settings with your network administrator. If you enter the settings incorrectly, the SX-550 will not be able to communicate on your network. The following table summarizes the wireless settings required for each...
  • Page 87 Select the desired key selection from the pull down menu on the Configure Network Security screen in the SX-550 internal web pages, or use the console command SET NW KEY# n, where n is 1, 2, 3, or 4.
  • Page 88 This parameter sets the type of authentication to be performed with the network access point (Radius authentication server), or with a peer unit in Ad Hoc mode. The SX-550 supports Shared Key and Open System Authentication with WEP, and PSK, TLS, TTLS, LEAP, PEAP, and EAP-FAST with WPA, WPA2, DYNAMIC WEP, and WPA2-WPA.
  • Page 89 (Private Key Information File) or manually entered. If the file is encrypted, you must enter the passphrase in the passphrase entry field on the Configure Private Key page in the internal web pages of the SX-550 (NOTE: At present, only PEM format files are supported). To manually generate a self-signed certificate for the SX-550, the following information is required: •...

  • Page 90: Appendix B Console Commands

    AP density = LOW TTLS is Disabled WEP is Disabled Link DOWN SH NW SQ Display wireless network signal quality Sample Output:: Signal Quality = 93 Signal Strength = 53 Noise Level = 135 Part Number 40183-101 Silex SX-550 Developer's Guide Page 82...
  • Page 91 SH NW ETHAUTH Shows Ethernet wired authentication type Sample output: Authentication type= PEAP SET NW AUTHTRY Sets number of times the SX-550 will attempt to authentication The default value is 0. Format: SET NW AUTHTRY n SH NW AUTHTRY Shows number of authentication tries.
  • Page 92 Clears SSID value and allows the server to connect to any AP. Format: CL NW SSid SET NW BSsid Sets WLAN BSSID to connect to a specific access point’s mac address Format: SET NW BSsid <value> Part Number 40183-101 Silex SX-550 Developer's Guide Page 84...
  • Page 93 RX Discards WEP undecr: 0 RX Msg in msg fragments: 0 RX Msg in Bad msg fragments: 0 SET NW CERTCN Sets EAP Common Name The default value is null. Format: SET NW CERTCN <name> Part Number 40183-101 Silex SX-550 Developer's Guide Page 85...
  • Page 94 The deprecated command SH NW TTID also returns this data. Sample output: anonymous@somewhere SET NW PW Sets the password for the 802.1x EAP authentication, if enabled The default value is anonymous. Format: SET NW PW <password> Part Number 40183-101 Silex SX-550 Developer's Guide Page 86...
  • Page 95 SET NW WPAGROUP Enable or disable WPA group key mode. If enabled, group keys can be used for data link encryption. The default value is disabled. Format: SET NW WPAGROUP [ENABLE | DISABLE] Part Number 40183-101 Silex SX-550 Developer's Guide Page 87...
  • Page 96 If the unit is in wireless infrastructure mode, the unit will then scan and attempt to reconnect to a suitable access point, if one is available. Format: SET NW RESET Part Number 40183-101 Silex SX-550 Developer's Guide Page 88...

  • Page 97: Port Commands

    The default value is 115200. Format: SET PORT S1 SPEED <baudrate> SET PORT S1 STOP Sets serial port stop bits per character The default value is 1. Format: SET PORT S1 STOP [1 | 2] Part Number 40183-101 Silex SX-550 Developer's Guide Page 89...

  • Page 98: Server Information Commands

    Sets system location string The default value is null. Format: SET SNMP LOCation <string> SH SERIAL Displays serial number of the unit Sample output: Serial number is 9047595 SH SERVEr Shows server parameters Part Number 40183-101 Silex SX-550 Developer's Guide Page 90...
  • Page 99 Shows firmware version of print server Protocols supported: NetBIOS SNMP TCP/IP EMail DHCP Sample output: serial server Firmware Ver. 4.19 (2004.10.31) Boot Ver. 1.4 16Mbit Flash Zero Clears and resets the network statistic counters Part Number 40183-101 Silex SX-550 Developer's Guide Page 91...

  • Page 100: Service Commands

    If the index is zero, the default string of <LF> (line feed) is used. The default value is 0. Format: SET SERVI <service name> FRM SET SERVI <service name> Sets filter 1 text replacement replace string index. Part Number 40183-101 Silex SX-550 Developer's Guide Page 92...
  • Page 101 Shows the basic parameters for a specific service. If service_num is not [service_num] provided, parameters for all services are displayed. The command SH SERVI displays the same data as SHOW SERVI SUM. Part Number 40183-101 Silex SX-550 Developer's Guide Page 93...

  • Page 102: String Commands

    10: \FF\04\FF\05\FF\06\FF\08 11: \0C SH FILters Shows the filters that can modify a job stream Sample output: Filter No Filter Text Substitution AppleTalk Text to PostScript PostScript Tagged Binary DC1 Special Part Number 40183-101 Silex SX-550 Developer's Guide Page 94...

  • Page 103: Tcp/Ip Commands

    Sets number of tries for each enabled IP boot method, if not set to static The default value is 3. Format: SET IP BOot SET IP ENable Enables or disables all IP based protocols The value is Enable. Format: Part Number 40183-101 Silex SX-550 Developer's Guide Page 95...
  • Page 104 The default value is Disable. Format: SET IP PRObe [ENable | DIsable] SET IP RARp Enables setting of default router and/or subnet mask based on RARP IP address set The default value is 0. Format: Part Number 40183-101 Silex SX-550 Developer's Guide Page 96...
  • Page 105 If fast timeout is disabled, the timeout is calculated as minutes. The default value is 1 minute. Format: SET IP Timeout SET IP WIndow Sets TCP maximum window size in bytes The default value is 10240. Format: SET IP WIndow Part Number 40183-101 Silex SX-550 Developer's Guide Page 97...
  • Page 106 Serial Server: Match string 7 00000080 Serial Server: Match string 8 00000100 undefined 00000200 undefined 00000400 undefined 00000800 undefined 00001000 undefined 00002000 undefined 00004000 undefined 00008000 undefined 00010000 GPIO Trigger1: GPIO1 0 to 1 Part Number 40183-101 Silex SX-550 Developer's Guide Page 98...

  • Page 107: Bridge Mode Configuration

    Sets the power save mode. High power is for fastest throughput, low power is for lowest power consumption. Set POWER LEVEL 0, 1 or 2 0 = High Power 1 = Medium Power 2 = Low Power Part Number 40183-101 Silex SX-550 Developer's Guide Page 99...

  • Page 108: Firmware Update

    The server will reset after the firmware update is completed. Format: SET LOAd XModem SH LOAd Shows the firmware update parameters Sample output: Firmware load is disabled Load Host IP = 0.0.0.0 Part Number 40183-101 Silex SX-550 Developer's Guide Page 100...

  • Page 109: Miscellaneous Commands

    This lasts only until the console session is terminated with an EXIT command. SH CONSOLE Displays the configured baud rate for the serial console port. SPEED Sample output:: Console Speed: 19200 (0) Part Number 40183-101 Silex SX-550 Developer's Guide Page 101...

  • Page 110: Help Commands

    For example, when inquiring for various commands to display specific IP parameters, type HELP SHOW IP, or for commands to change specific wireless/network security parameters, type HELP SET NWRK. Part Number 40183-101 Silex SX-550 Developer's Guide Page 102...
  • Page 111 Part Number 40183-101 Silex SX-550 Developer's Guide Page 103...

  • Page 112: Appendix C Engineering Drawings

    Appendix C Engineering Drawings Antenna Part Number 40183-101 Silex SX-550 Developer's Guide Page 104...

  • Page 113: Figure 12 Antenna Mechanical Drawing (Silex Part Number 108-00016-050)

    50 Ohms Gain 2.4 GHz < 1.5 dBi 5.825 GHz < 2.1 dBi ≤ 2.0 VSWR Admitted Power Radiation Omni Polarization Vertical Electrical Length¼ n Dipole Standard Connector SMA  male reverse Part Number 40183-101 Silex SX-550 Developer's Guide Page 105...

  • Page 114: Antenna Cable

    Antenna Cable Figure 28 Antenna Cable (Silex Part No. 131-20110-050) Part Number 40183-101 Silex SX-550 Developer's Guide Page 106...

  • Page 115: Regulatory Information

    There are specific requirements for using the SX-550-2701 modular approval, including: 1. You must put the SX-550 FCC or IC number in a visible location on your product. These numbers are as follows: a.

  • Page 116: Fcc Information (Sx-550-2701 Only)

    FCC ID: N6C-SX10WAGIT NOTICE In accordance with FCC Part 15, the SX-550-2701 is listed as a Modular Transmitter device. End products that include the SX-550-2701 shall have the words “Contains Transmitter module FCC ID: N6C- SX10WAGIT” on an exterior label.

  • Page 117: Information For Canadian Users (Ic Notice) (Sx-550-2701 Only)

    RoHS Declaration of Conformity (All SX-550 Models) Silex Technology, Inc. declares that the SX-550 complies with all RoHS regulations. We are willing to provide all necessary documentation or information to prove our compliance with the RoHS regulations. It is our responsibility to proactively inform our customers if we identify a potential risk of breaching the regulations in our product.
  • Page 118 Part Number 40183-101 Silex SX-550 Developer's Guide Page 110...

  • Page 119: Firmware Update Procedures

    Appendix E Firmware Update Procedures Occasionally it may be necessary to update the SX-550 to take advantage of new features or to fix specific problems. The simplest way to perform this update is with the Silex UpdateIP utility for Windows XP and 2000 computers. This utility can be found on the CD-ROM that is included with the SX-550, or it can be downloaded from the Support &...
  • Page 120 If you are using a different operating system, please refer to the documentation of that operating system for information on how to use the tftp command. Note that you should specify that the tftp destination file is the Serial Device Server password (“access” by default). Part Number 40183-101 Silex SX-550 Developer's Guide Page 112...

  • Page 121: Silex Contact Information

    Silex Technology Europe GmbH www.silexeurope.com Tel: +49-2159-67500 Tel: 0800-7453938 German toll free Email: contact@silexeurope.com Silex Technology Beijing, Inc. www.silex.com.cn Tel: +86-10-8497-1430 Email: contact@silex.com.cn Corporate Headquarters Silex Technology, Inc. www.silex.jp Tel: +81-6-6730-3751 Email: support@silex.jp Part Number 40183-101 Silex SX-550 Developer's Guide Page 113...
  • Page 122 Inc. www.silexamerica.com Part Number 40183-101 Silex SX-550 Developer's Guide Page 114...
