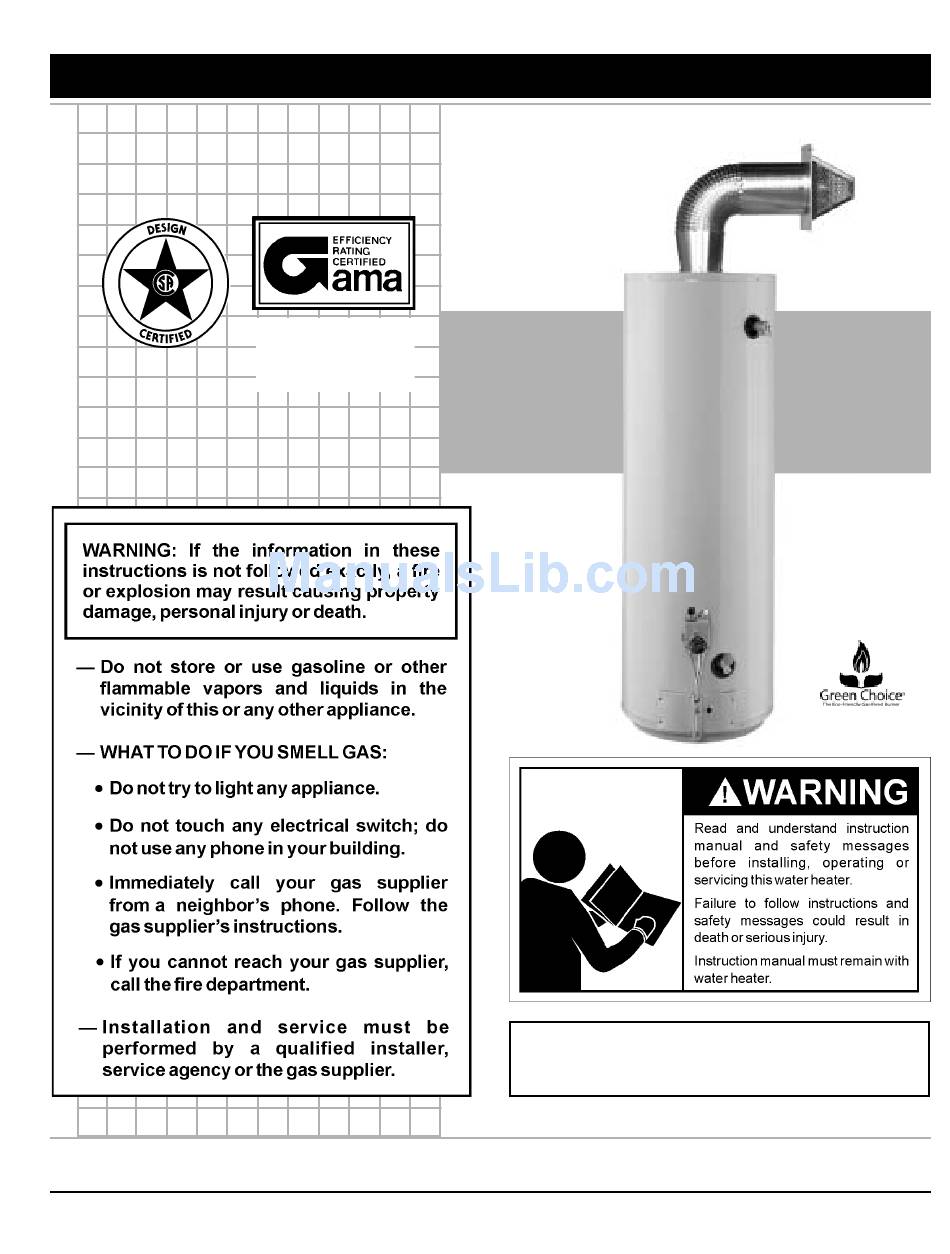

Residential direct vent gas water heaters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RESIDENTIAL DIRECT VENT GAS WATER HEATERS
ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS
PURCHASED. IF YOU ARE UNSUCCESSFUL, PLEASE WRITE TO THE COMPANY LISTED ON THE RATING PLATE ON THE WATER HEATER.
PRINTED 1005
GAMA certification applies to
all residential gas water
heaters with capacities of 20
to 100 gallons with input rating
of 75,000 BTU/Hr. or less.
KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE
WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.

Instruction Manual

NOT FOR USE IN MANUFACTURED (MOBILE) HOMES
•

For Your Safety

AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
1
•
183774-001
