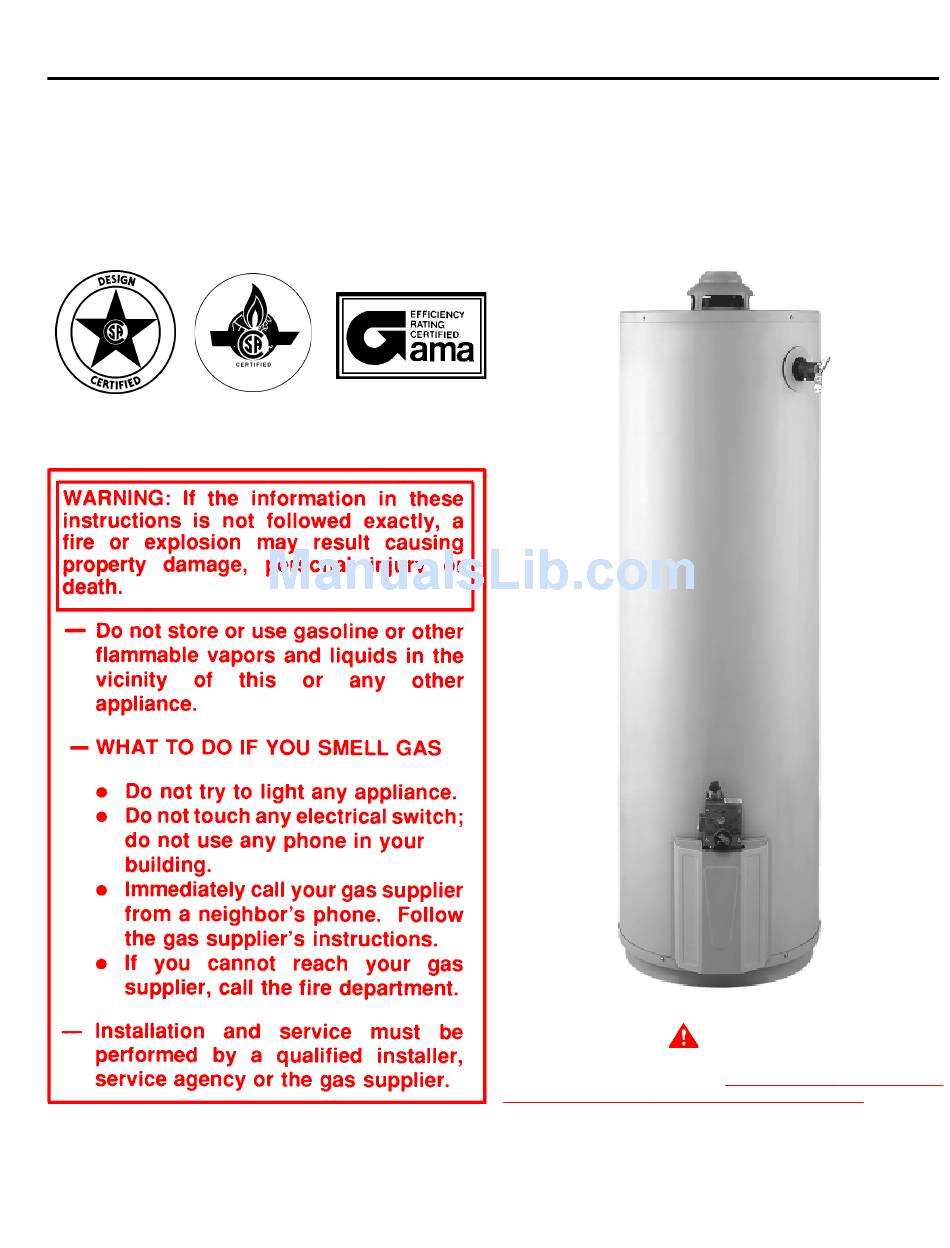

COMMERCIAL GAS WATER HEATER
Glass-Lined Tank-Type Water Heater
Instruction Manual
•
INSTALLATION
•
OPERATION
•
SERVICE
•
MAINTENANCE
•
LIMITED WARRANTY
CAUTION
TEXT PRINTED OR OUTLINED IN RED CONTAINS INFORMATION
RELATIVE TO YOUR SAFETY. PLEASE READ THOROUGHLY
BEFORE INSTALLING AND USING THIS APPLIANCE.
PLACE THESE INSTRUCTIONS ADJACENT TO HEATER
AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE.
PRINTED IN U.S.A. 0903
PART NO. 196114-000
1
Advertisement
Table of Contents
Related Manuals for State Water Heaters 196114-000
Summary of Contents for State Water Heaters 196114-000
-
Page 1: Instruction Manual
TEXT PRINTED OR OUTLINED IN RED CONTAINS INFORMATION RELATIVE TO YOUR SAFETY. PLEASE READ THOROUGHLY BEFORE INSTALLING AND USING THIS APPLIANCE. PLACE THESE INSTRUCTIONS ADJACENT TO HEATER AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE. PRINTED IN U.S.A. 0903 PART NO. 196114-000... -
Page 2: Rough-In Dimensions
ROUGH-IN-DIMENSIONS Model Type Input Approx. Model Btuh Capacity 65,000 65 US Gals. GPH Natural 19.0 246 Litres 55.000 65 US Gals. GPH Propane 16.1 246 Litres FOREWORD The design of Model 65 complies with the latest version of ANSI Z21.10.1/CSA 4.1 M98 as automatic storage type water heater. Installation diagrams are found in this manual. -
Page 3: Table Of Contents
TABLE OF CONTENTS ROUGH-IN DIMENSIONS ... 2 FOREWORD ... 2 GENERAL SAFETY INFORMATION ... 3 Precautions ... 3 Liquid Petroleum ... 3 Chemical Vapor Corrosion ... 3 Improper Combustion ... 3 Extended Non-use Periods ... 3-4 Insulation Blankets ... 4 INSTALLATION INSTRUCTIONS ... -
Page 4: Insulation Blankets
to flow. THERE SHOULD BE NO SMOKING OR OPEN FLAME NEAR THE FAUCET AT THE TIME IT IS OPEN. INSULATION BLANKETS Insulation blankets available to the general public for external use on gas water heaters are not necessary with your commercial water heater. -
Page 5: Clearances
U.S. REQUIREMENTS Ratings specified by manufacturers for most appliances apply for elevations up to 2000 feet (610 m). For elevations above 2000 feet (610 m), ratings must be reduced at the rate of 4% for each 1000 feet (305 m) above sea level. For example, if a heater is rated at 65,000 Btuh (19 Kw) at sea level, to rate the heater at 4000 feet (1219 m), you subtract 4 (once for each thousand feet) x.04 (4% input reduction) x 65,000 (original rating) from the original... -
Page 6: Venting
2. Toxic chemicals, such as those used for boiler treatment, shall NEVER be introduced into this system. 3. This unit may NEVER be connected to any existing heating system or component(s) previously used with a non-potable water heating appliance. 4. When the system requires water for space heating at temperatures higher than required for domestic water purposes, a tempering valve must be installed (See Fig. -
Page 7: Gas Piping
CIRCULATING RETURN LINE CONNECTIONS TEMPERED WATER LOOP, IF USED, CONNECT TO POINT "A". STORED TEMPERATURE WATER LOOP, IF USED, CONNECT TO COLD WATER INLET. CAUTION: IF BUILDING COLD WATER SUPPLY HAS A BACK-FLOW PREVENTER, CHECK VALVE OR WATER METER WITH CHECK VALVE, PROVISIONS FOR THERMAL EXPANSION OF WATER IN THE HOT WATER SYSTEM MUST BE PROVIDED. -
Page 8: Gas Piping
TABLE 1 - GAS SUPPLY LINE SIZES (IN INCHES)* MAXIMUM CAPACITY OF PIPE IN CUBIC FEET PER HOUR LENGTH NORMAL IRON PIPE SIZES (INCHES) INPUT IN THOUSANDS BTU/HR FEET 1/2" 3/4" 1" 1 1/4" 1 1/2" 1400 2100 3960 1460 2750 1180 2200 LENGTH NORMAL IRON PIPE SIZES (INCHES) -
Page 9: Gas Pressure Regulation
TABLE 2 MANIFOLD PRESSURE SETTING Model Type of Number Input Natural 65,000 Btu/hr 16.7 KW/hr Propane 55,000 Btu/hr 16Kw OPERATION It is recommended that a qualified person perform the initial firing of the heater. At this time the user should not hesitate to ask the individual any questions which he may have in regard to the operation and maintenance of the unit. -
Page 10: Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. -
Page 11: Temperature Regulation
TEMPERATURE REGULATION DANGER THIS WATER HEATER IS EQUIPPED WITH AN ADJUSTABLE THERMOSTAT TO CONTROL WATER TEMPERATURE. HOT WATER TEMPERATURES REQUIRED FOR AUTOMATIC DISHWASHER AND LAUNDRY USE CAN CAUSE PAINFUL SCALDING WITH POSSIBLE SERIOUS AND PERMANENT INJURY. THE TEMPERATURE AT WHICH INJURY OCCURS VARIES WITH THE PERSON’S AGE AND THE TIME OF THE EXPOSURE. -
Page 12: Service Information
and bathroom exhausts, so they shall operate at maximum speed. Close fireplace dampers. 4. Follow the lighting instruction. Place the water heater being inspected in operation. Adjust thermostat so appliance shall operate continuously. 5. Test for draft hood spillage at the relief opening after 5 minutes of main burner operation. -
Page 13: Vent System
Compare the actual input rate to that given on the heater’s rating plate. In the example, the 65 full input rate should be 65,000 Btuh (19.0 KW) for natural gas. VENT SYSTEM Examine the venting system every 6 months for obstructions and/ or deterioration of vent piping. - Page 14 4. If the heater was installed when incoming water temperatures were warm, colder incoming temperatures will create the effect of less hot water. 5. The thermostat water temperature adjusting dial may be set too low. 6. If you cannot determine the cause of the problems, contact your dealer.
- Page 15 NOTES...
