Selmo Thesis Plus Manual

Electronic control for towel radiators

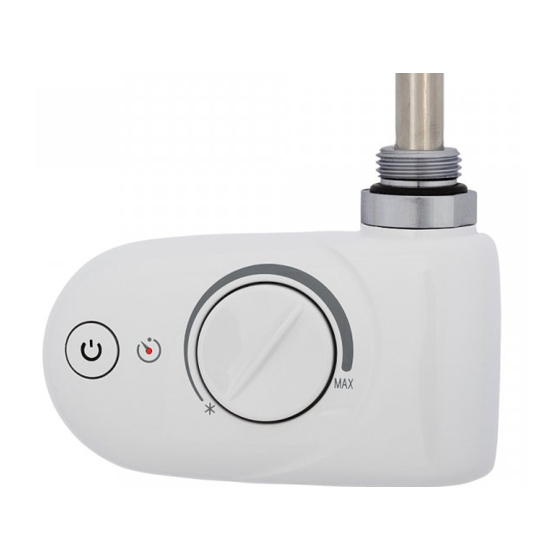

THESIS Plus is an electronic thermostat for the control electric towel radiators.
By means of an external sensor it is capable of
keeping the room temperature at the desired value.
THESIS Plus has a simple yet modern design,
suitable for every type of furnishing and every
model of electric towel radiator.
THESIS Plus is easy to install and it is available in
several colors.
THESIS Plus is a certified product.
THESIS Plus is compliant with the following
standards:
-Eco-design Directive for Energy-using Products,
2005/32/EC (<0,5W).
-EN 60335-1:2012
-EN 60335-2-30:2011
-EN 60335-2-43:2008
-EN 61000-3-2:2004 - EN 61000-3-3:1995
-EN 55014-2:1998 -EN 55014-1:2008
-EN 50366:2003
Selmo
Electronic
Via Pacinotti, 24 - 35030 Rubano
"THESIS PLUS"
Chrome
White
(PD) Italy- Tel +39.049.8976761, Fax +39.049.8976085 -
Comfort technology division
Functions
Four operational modes:
"Comfort", "Boost", "Stand-by", "Timer"
•
"Comfort" mode:
The thermostat keeps the room temperature at
the value set by the user (through the knob). In
this modality the device can be remotely
controlled through the "Fil-Pilote" system.
•
"Boost" mode:
In "Boost" mode the heating element is activated
for a period of 2 hours. During this time interval,
the electrical resistance warms the room
independently of the configured "Comfort"
temperature. The temperature is however
automatically adjusted in order not to exceed
32°C. At the end of the 2 hours period, the device
returns to previous operational mode.
•
"Stand-by" mode:
The electric resistance is not powered and all
lights are turned off.
"Timer" mode:
This operating mode cyclically repeats every 12 or
24 hours the "Boost" mode.
Rev.13 November 2015
EN
www.selmo.it
