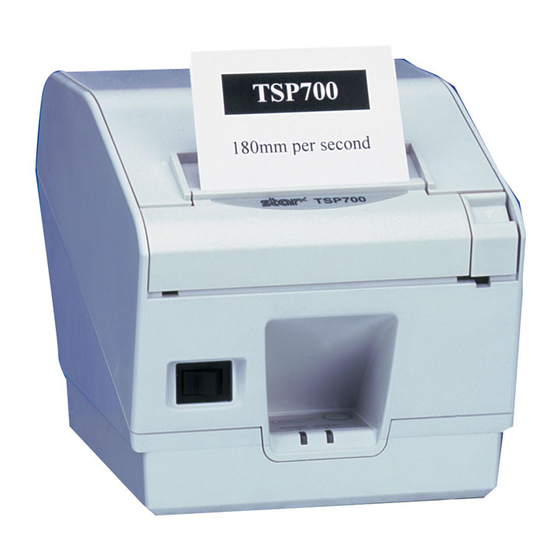

Star TSP700 Installation Manual

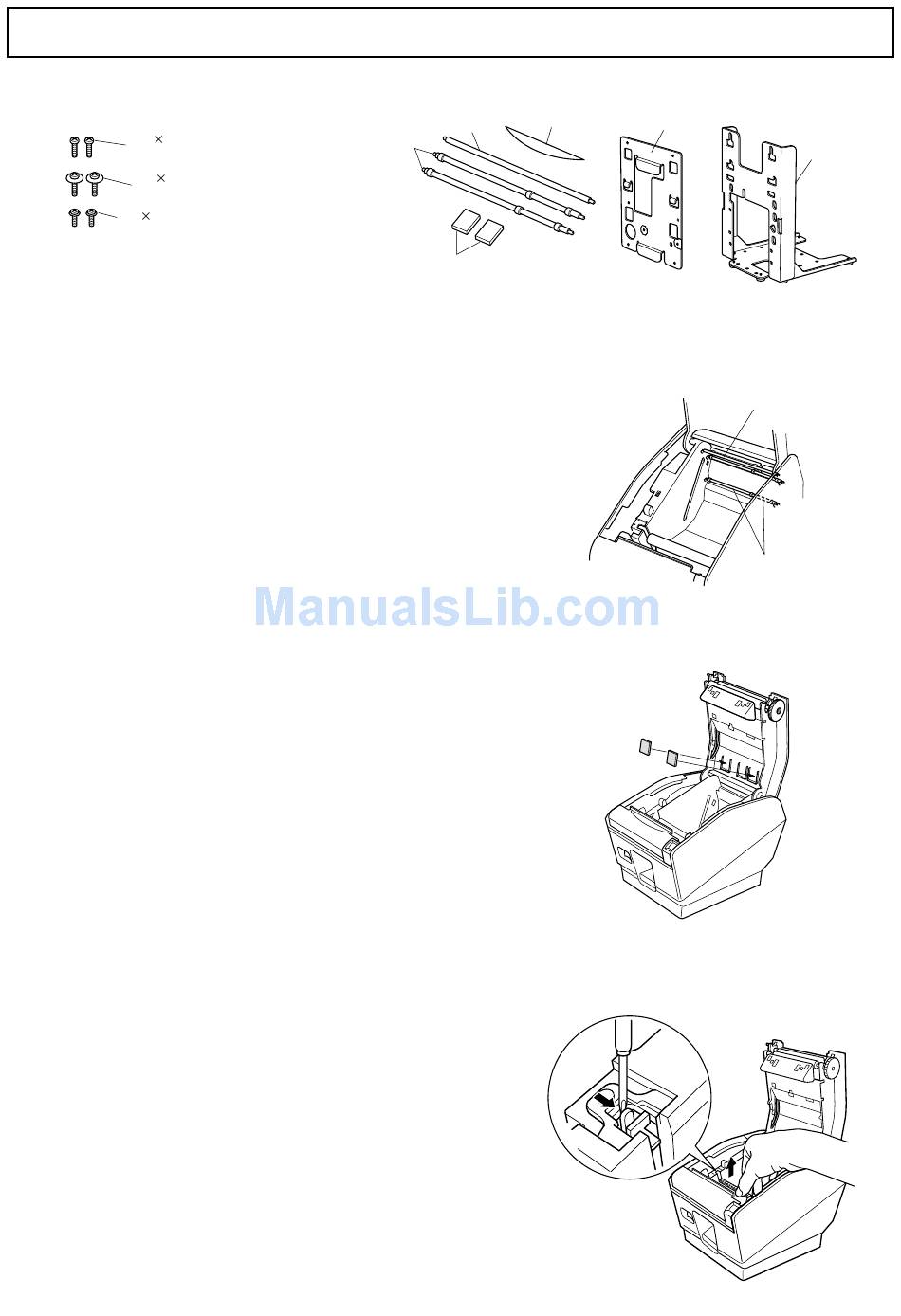

1. Unpacking :

Confirm that all accessories are included.
M3 12 screws (2)
(for attaching the holder plate)
M3 12 screw with flat washer (2)
(for attaching the holder plate)
M4 8 screws (2)
(for attaching the stand)

2. Attachment procedures :

Note: Ensure that power that is supplied to the printer
and that all devices connected to the printer have
been switched OFF and that the cables have been
unplugged before starting the modification. If the
AC adapter is connected to the printer, unplug it
from the main socket.
The base for setting the stand should be within a
range of ±2° in reference to the horizontal direction.

2-1. Attaching the shafts

Attach the three shafts to the printer.

2-2. Attaching the roll stoppers

Attach the two roll stoppers in the positions shown
in the figure. Ensure that any dirt has been
completely wiped away before attaching the
stoppers.

2-3. Removing the tension bar unit

Use a regular screwdriver to remove the clips at both
ends of the bar to remove the tension bar unit.

Attaching the TSP700 vertical stand

Shafts(D)
Brand seal
Shaft(C)
Roll stoppers
fig.2 Attaching the roll stoppers
fig.3 Removing the tension bar unit
Holder plate
Shaft(C)
Shafts(D)
fig.1 Attaching the shafts
Stand
