Pulsar AWZ 710 Quick Start Manual

1. Technical description.
1.1 General description.
The panic button is intended for transmitting signal about an emergency situation or calling for help (e.g. to an
alarm centre, monitoring transmitter, controller). The alarm button converts the signal of pressing into a status change of
the alarm output. The PN-K panic button features a whole range of program functions necessary to adjust flexibly to
requirements of a given installation. The detector of pressing is manufactured with the use of optical technique. The
output signal is applied as open/closed contacts of a reed relay switch (noiselessly). The tampering contact is based on a
microswitch with gold-plated contacts and the surface of the PCB is covered with varnish protecting it against humidity
and dirt. The button has a firm, metallic enclosure equipped with non-skid rubber legs.
1.2 Description of the PCB components and connectors.
Table 1. Description of the supply components and connectors.
No.
[fig.1]
[1]
[2]
[3]
[4]
[5]
AWZ 710
v1.0
Foot-operated panic button PN-K
Edition: 6 from 30.01.2018
Supersedes the edition: 5 from 16.09.2013
TAMP – connector of the tampering switch
Cable holder
PROG/RESET button
Button's power and output connector:
12V, GND - DC power output (12V= +U, GND)
RST – button's reset output
C, NO – NC alarm relay output
LED diode (red) operation indication (programming)

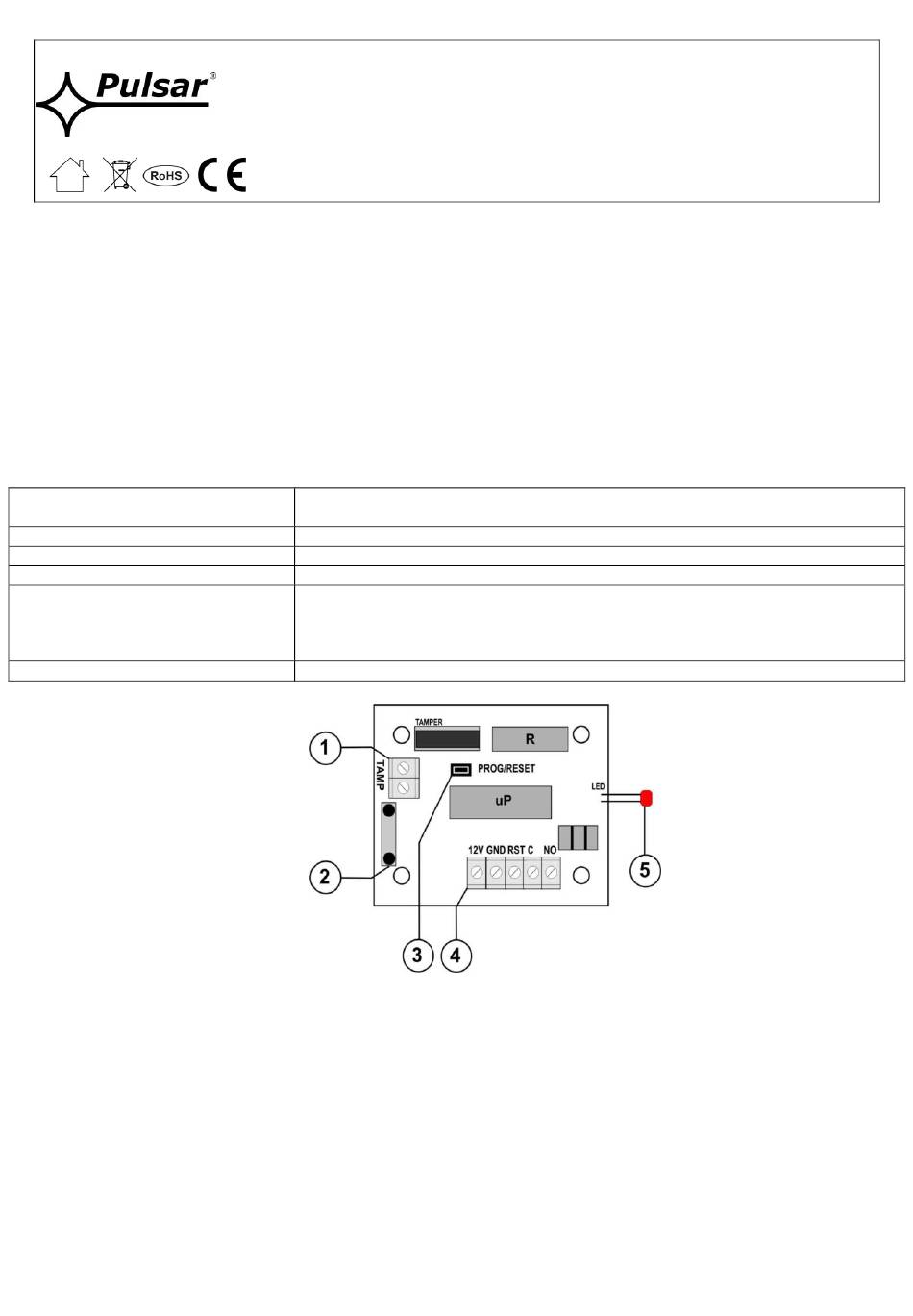

Fig.1. The view of the PCB.
