BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
OBSLUHA A INSTALACE
OBSŁUGA I INSTALACJA
Pufferspeicher mit Heizflansch und Wärmepumpen-Kompaktinstallationen |
Buffer cylinder with flanged immersion heater and compact heat pump installations |
Ballon tampon avec résistance électrique à bride et kit hydraulique pompe à chaleur |
Akumulační zásobník s topnou přírubou a kompaktními instalacemi tepelného čerpadla |
Zbiornik buforowy z kołnierzem grzejnym oraz instalacjami kompaktowymi dla pomp ciepła

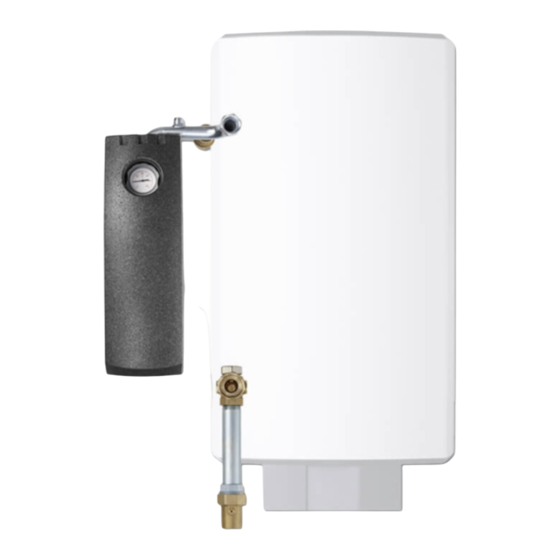

» SBP 100
» SBP-HF
» WPKI-H E
» WPKI-P E
» WPKI-W E
» WPKI-V
60
40
°C
80
20
100
0
120
2
1
0
bar
65°C
60
60
40
80
40
80
°C
°C
20
100
20
100
0
120
0
120
3
4
Advertisement
Table of Contents
Troubleshooting
Related Manuals for STIEBEL ELTRON SBP 100
Summary of Contents for STIEBEL ELTRON SBP 100
- Page 1 Ballon tampon avec résistance électrique à bride et kit hydraulique pompe à chaleur | Akumulační zásobník s topnou přírubou a kompaktními instalacemi tepelného čerpadla | Zbiornik buforowy z kołnierzem grzejnym oraz instalacjami kompaktowymi dla pomp ciepła » SBP 100 » SBP-HF » WPKI-H E »...
-
Page 2: Table Of Contents
Dimensions and connections ��������������������������������� 36 15.2 Wiring diagrams and terminals ������������������������������ 37 15.3 Circulation pump rating curves ������������������������������ 38 15.4 Fault conditions ������������������������������������������������� 38 15.5 Details on energy consumption ������������������������������ 39 15.6 Data tables ������������������������������������������������������� 39 GUARANTEE ENVIRONMENT AND RECYCLING | SBP 100 www.stiebel-eltron.com... -
Page 3: General Information
WARNING Failure to observe this information may result in serious injury or death. CAUTION Failure to observe this information may result in non-seri- ous or minor injury. www.stiebel-eltron.com SBP 100|... -
Page 4: General Safety Instructions
To facilitate and speed up your enquiry, please provide the serial es on in good time and heats the water. The appliance does not number from the type plate (000000-0000-000000): protect the water pipes and safety valve from frost. 000000-0000-000000 Made in Germany | SBP 100 www.stiebel-eltron.com... -
Page 5: Safety
Circulation pumps are available as required accessories for com- pact heat pump installations which are approved for direct con- nection to the heat pump manager: - UP 25/7.0 E, part number 232942 - UP 25/7.5 E, part number 232943 www.stiebel-eltron.com SBP 100|... -
Page 6: Connector With Sensor Sleeve
3 Seal ring 4 Drain valve f Remove the drain valve. f Remove the flange plate. To do this, undo the 10 screws. f Fit the immersion heater with the seal ring supplied. f Connect the insulating plate. | SBP 100 www.stiebel-eltron.com... - Page 7 Route the limiter sensor and the controller sensor into the sensor tube until the limiter sensor engages. Note the inser- tion depths of the controller-limiter combination (see chapter "Specification / Dimensions and connections"). f Insert the plug into the immersion heater. www.stiebel-eltron.com SBP 100|...
-
Page 8: Appliance Installation
Fit the lower cover. f Secure the controller to the lower cover using screws. f Fit the temperature selector. f Tick the selected connected load and voltage on the type plate with a ballpoint pen. | SBP 100 www.stiebel-eltron.com... - Page 9 8 Connector G 1 ¼ with connection for drain valve and expan- 7 Connector G 1 with ball shut-off valve and non-return valve sion vessel 9 Ball shut-off valve 10 Connector G 1 ¼ with sensor well for return temperature sensor 11 EPS insulation parts www.stiebel-eltron.com SBP 100|...
- Page 10 10 A/250 V AC or our WPM- sensor RBS relay set. f Connect the energy efficient circulation pumps approved by us (see chapter "Appliance description / Accessories"). For circulation pump rating curves, see chapter "Specification". | SBP 100 www.stiebel-eltron.com...
- Page 11 Install the "charging station flow opt." and "charging station return opt." f Install the EPS insulation parts. f If necessary, trim the wall mounting bracket threaded pin as appropriate for the distance between the cylinder and the wall. www.stiebel-eltron.com SBP 100|...
- Page 12 Fit the tee with shut-off valve into the heat pump return. f Install the "charging station flow opt.", "charging station re- turn opt." and "cylinder return". f Connect the expansion vessel and the drain valve. | SBP 100 www.stiebel-eltron.com...
- Page 13 Install the "charging station flow opt.", "charging station re- turn opt." and "cylinder return". f Install the EPS insulation parts. f If necessary, trim the wall mounting bracket threaded pin as appropriate for the distance between the cylinder and the wall. www.stiebel-eltron.com SBP 100|...
-
Page 14: Heating Water Connection
Fit the discharge pipe of the safety valve with a constant downward slope and in a room free from the risk of frost. f The safety valve discharge aperture must remain open to the atmosphere. | SBP 100 www.stiebel-eltron.com... -
Page 15: Troubleshooting
If the appliance needs to be drained for maintenance or to protect the whole installation when there is a risk of frost, proceed as follows: 1 Reset button for high limit safety cut-out 1 Drain valve f Drain the appliance using the drain valve. www.stiebel-eltron.com SBP 100|... -
Page 16: Specification
G 1 1/4 A d46 Ventilation Heating flow Male thread G 1 1/4 A Heating return Male thread G 1 1/4 A Wall mounting bracket I Wall mounting bracket II Controller-limiter combination insertion depths 1 Limiter sensor 2 Controller sensor | SBP 100 www.stiebel-eltron.com... -
Page 17: Wiring Diagrams And Terminals
4 kW, 1/N/PE ~ 230 V 4 kW, 2/N/PE ~ 400 V 6 kW, 3/N/PE ~ 400 V 1 Heating element, 2 kW ~ 230 V each 2 Terminal (power cable) 3 Terminal (heat pump manager control cable) 4 High limit safety cut-out 5 Temperature controller www.stiebel-eltron.com SBP 100|... -
Page 18: Circulation Pump Rating Curves
Should faults develop, temperatures up to 95 °C at 0.6 MPa can 232943 / 233947 occur. UP 25 7.5 E / UP 30 7.5 E max. X Delivery flow rate in m Y Delivery head in m Z Power consumption in W | SBP 100 www.stiebel-eltron.com... -
Page 19: Details On Energy Consumption
Ecodesign Directive on Energy related Products (ErP). apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only SBP 100 be issued by those subsidiaries. Such guarantee is only grant- 185443 ed if the subsidiary has issued its own terms of guarantee. No... - Page 20 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
