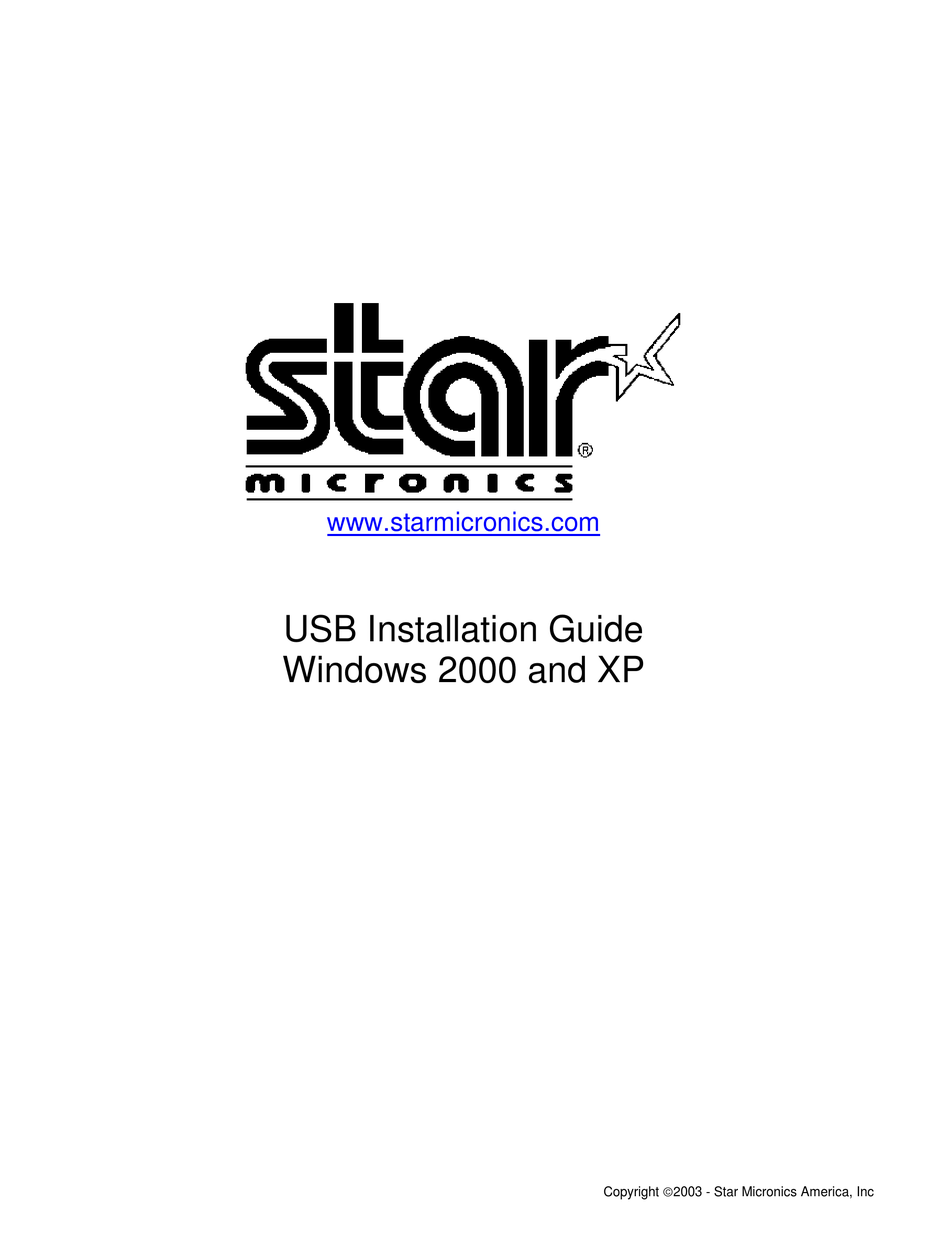

Page 1: Windows 2000 And Xp
USB Installation Guide Windows 2000 and XP Copyright 2003 - Star Micronics America, Inc... - Page 2 Once all steps above are completed, installation of the USB port can occur. To begin installation of the ‘Printer Class’ USB port, go to the next page To begin installation of the ‘Vender Class’ USB port, go to page 7 To begin installation of the ‘OPOS Drivers’, go to page 14...
- Page 3 1150 King Georges Post Rd. Edison, NJ 08837-3729 Installing USB Printer – ‘Printer Class’ Functionality Prior to beginning the installation of the USB ‘Printer Class’ drivers, it will be necessary for you to obtain: The newest Windows Raster drivers (for drivers – www.starmicronics.com) Save the driver to your hard drive and extract the driver files that were downloaded *** Note: Write down the location the driver was extracted to.
- Page 4 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Check ‘Specify a location’ and uncheck the rest of the options Click ‘Next’ Click ‘Browse’ and than locate the extracted driver files Page 4...
- Page 5 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Click ‘Next’ The ‘Digital Signature Not Found’ message will appear Click ‘Next’ Page 5...
- Page 6 1150 King Georges Post Rd. Edison, NJ 08837-3729 Once the ‘Finish’ button is selected, the driver installation will be complete. At this point, the printer will be ready for use. System Sales Team Click ‘Finish’ Page 6...
- Page 7 1150 King Georges Post Rd. Edison, NJ 08837-3729 Installing USB Printer – ‘Vender Class’ Functionality Prior to beginning the installation of the ‘USB Vendor Class Drivers’, it will be necessary to obtain: VenderClassDriver_2K-XP_20021031.ZIP OPOSPrinter_Win32_20021211 (OPOS Ver1.4.11) *** Note: Version of OPOS must be at least release 1.4.11 *** System Sales Team Click ‘Next’...
- Page 8 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Select ‘Add/Troubleshoot a device’ Click ‘Next’ Select ‘Add a new device’ Click ‘Next’ Page 8...
- Page 9 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Select ‘No, I want to select the hardware from a list’ Click ‘Next’ Select ‘Ports (COM & LPT)’ Click ‘Next’ Page 9...
- Page 10 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Select ‘Have Disk…’ Click ‘Next’ Select ‘Browse’ Page 10...
- Page 11 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Locate the file ‘SMJUSBCOM.inf’ Click ‘Open’ Select ‘OK’ Page 11...
- Page 12 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Select ‘SMJ USB Device’ Click ‘Next’ Click ‘Finish’ Page 12...
- Page 13 1150 King Georges Post Rd. Edison, NJ 08837-3729 *** VERY IMPORTANT *** System Sales Team When prompted to restart your computer, select ‘Yes’ After the PC restarts, run ‘DeviceView.exe’ The COM port assigned to the printer is defined here Page 13...
- Page 14 1150 King Georges Post Rd. Edison, NJ 08837-3729 Installing OPOS drivers *** Note: Should be performed after installing the ‘Vender Class’ drivers *** System Sales Team Extract the driver files and select the ‘Setup.exe’ file to begin installation Select ‘Next’ Click ‘Next’...
- Page 15 1150 King Georges Post Rd. Edison, NJ 08837-3729 System Sales Team Click ‘Next’ Click ‘Next’ Page 15...
- Page 16 System Sales Team Register the printer(s) that will be used with OPOS *** Note: Service Objects ending in ‘U’ are referencing USB Printers *** *** Note: Select ‘Control Object’ if program development is planned *** Once a printer is registered, ‘OPOS POSPrinter Settings’...
- Page 17 Edison, NJ 08837-3729 Support If you have any questions on the setup or installation of the drivers or utilities listed above, please contact a Star Customer Support Coordinator today for further assistance. Star Micronics America Phone Support: 732.623.5555 Email Support: userhelp@starmicronics.com System Sales Team Click ‘Finish’...
