IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read before this product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.
Page 3

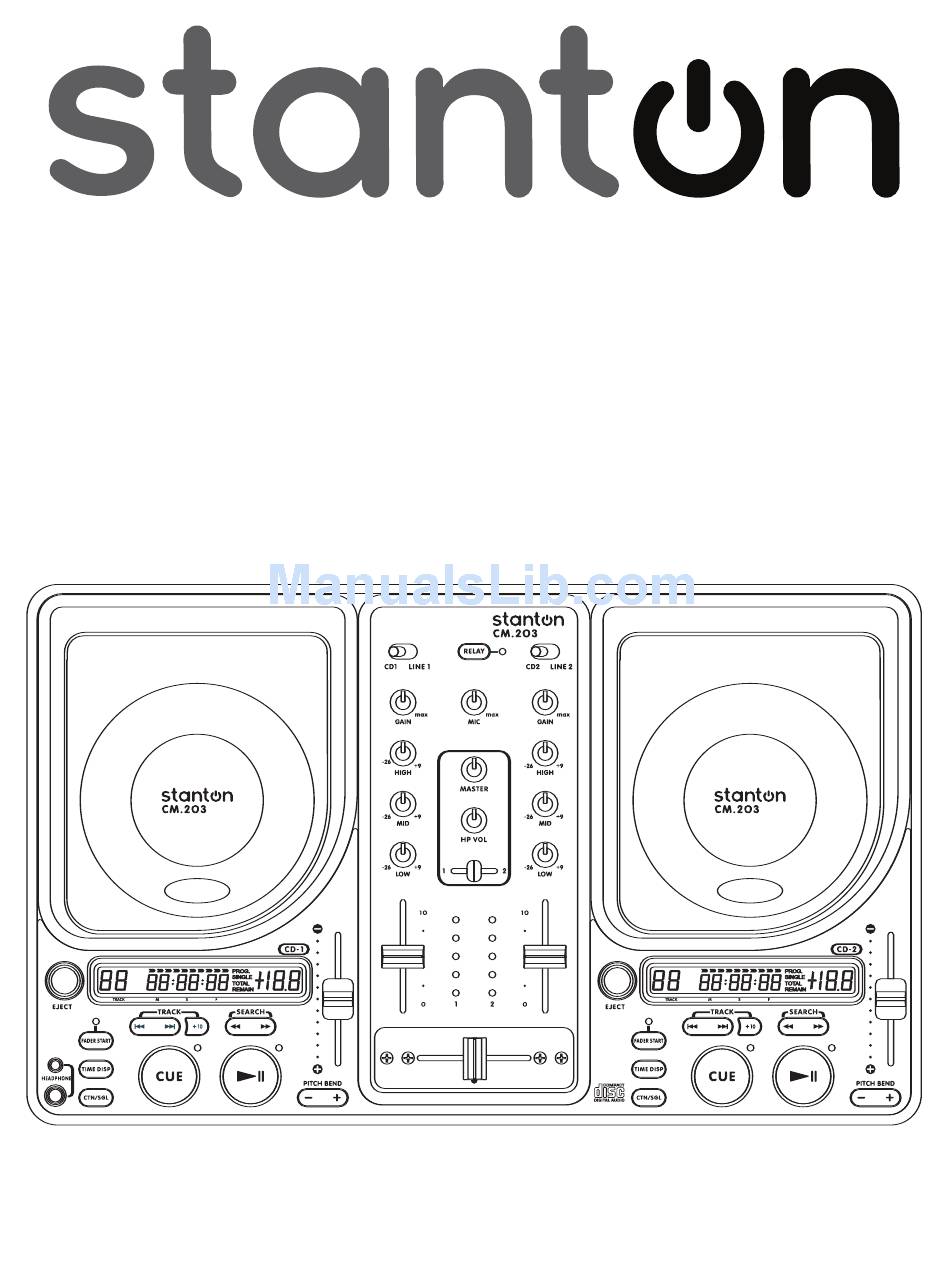

The CM.203 is the perfect CD mixer for the DJ looking for simplicity backed by professional quality. This versatile unit features dual top loading CD play- ers and built-in line inputs for your iPod® and other portable media devices so you can easily access a variety of music sources! The CM.203 makes it easy to please the crowd in virtually any venue, from clubs, bars and restaurants to dance studios and mobile gigs.
Page 4
INSTALLING THE RACK EARS • Installing the Rack Ears :: STEP 1 :: Place the unit upside down over a pad, pillow, or towel to avoid damaging the control surface. :: STEP 2 :: Align the left rack ear with the screw holes as shown. Use 4 screws to lock the ear in place. :: STEP 3 :: Repeat step 2 with the right rack ear.
QUICK SETUP DIAGRAM Study this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers. Additionally, you can connect the REC output to any recording device such as a CD or DVD recorder.
CD PLAYER FUNCTIONS 1. EJECT – Opens the CD door. 2. FADER START – You can use the crossfader to start and stop the CD decks. The fader start switch activates the fader start feature. When in the ON position, sliding the crossfader to either end will start the CD on that side and pause the CD on the other side and return to the cue point.
LCD DISPLAY FUNCTIONS 13. TRACK – Shows the current track that the unit is playing. 14. MINUTES – Shows the minutes elapsed or remaining depending on mode setting. 15. SECONDS – Shows the seconds elapsed or remaining depending on mode setting. MIXER FUNCTIONS 16.
REAR PANEL FUNCTIONS 33. POWER SWITCH – Turns unit off and on. Note*** Remember to turn ALL volume levels down when turning on/off the unit. 34. AC INPUT – This is the connection for the supplied power cable. 35. MASTER OUTPUT – Unbalanced RCA connectors controlled by the Master level.
SPECIFICATIONS MIXER SECTION FREQUENCY RESPONSE (Line to Master Output) THD+N (Line) S/N RATIO: REF TO MAX OUTPUT LEVEL (Dynamic Range) Noise Floor (Line Input to Any Output) (Unbalanced Out) (Line to Line,Phono to Line,Line to Phono) CROSS TALK CHANNEL FADER KILL CROSS FADER KILL Channel EQ CD SECTION...
Any returns to a non-authorized dealer or to an authorized Stanton dealer not in the same country as the merchandise was intended to be sold or as set forth above will void this warranty.
