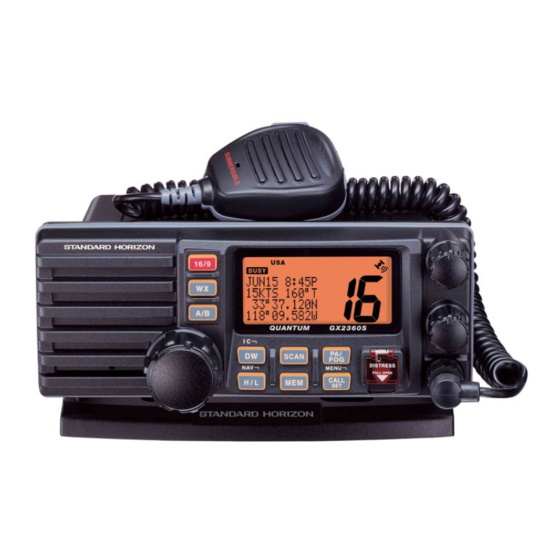

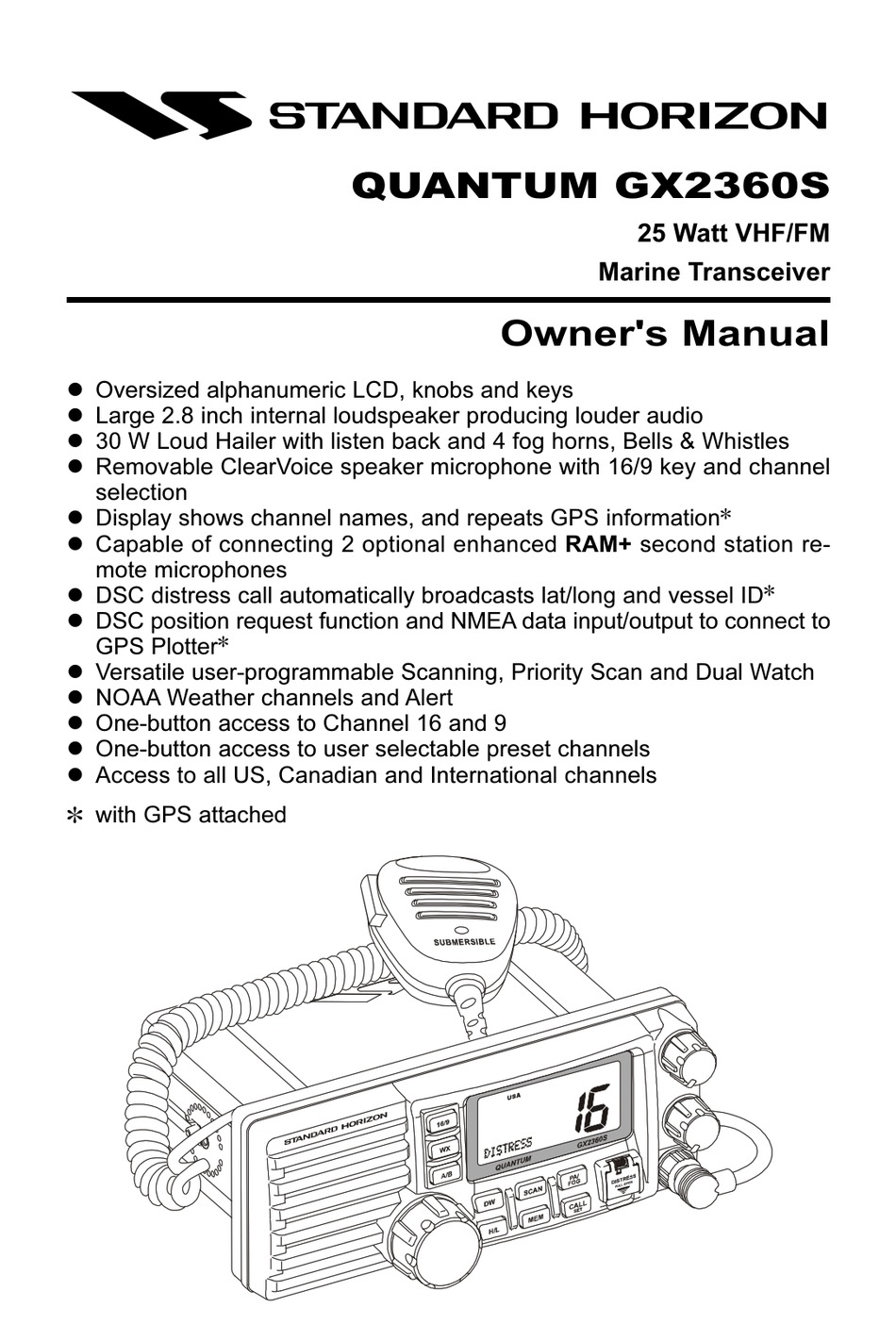

QUANTUM GX2360S
25 Watt VHF/FM
Marine Transceiver
Owner's Manual
Oversized alphanumeric LCD, knobs and keys
Large 2.8 inch internal loudspeaker producing louder audio
30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles
Removable ClearVoice speaker microphone with 16/9 key and channel
selection
8
Display shows channel names, and repeats GPS information
Capable of connecting 2 optional enhanced RAM+ second station re-
mote microphones
8
DSC distress call automatically broadcasts lat/long and vessel ID
DSC position request function and NMEA data input/output to connect to
8
GPS Plotter
Versatile user-programmable Scanning, Priority Scan and Dual Watch
NOAA Weather channels and Alert
One-button access to Channel 16 and 9
One-button access to user selectable preset channels
Access to all US, Canadian and International channels
8 with GPS attached
GX2360S
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUANTUM GX2360S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Standard Horizon QUANTUM GX2360S

  • Page 1 QUANTUM GX2360S 25 Watt VHF/FM Marine Transceiver Owner's Manual Oversized alphanumeric LCD, knobs and keys Large 2.8 inch internal loudspeaker producing louder audio 30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles Removable ClearVoice speaker microphone with 16/9 key and channel...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY/WARNING INFORMATION ... 4 FCC RADIO LICENSE INFORMATION ... 5 FCC NOTICE ... 6 GETTING STARTED ... 7 ABOUT VHF RADIO ... 7 SELECTING AN ANTENNA ... 7 COAXIAL CABLE ... 8 1 GENERAL INFORMATION ... 9 1.1 INTRODUCTION ...
  • Page 3 TABLE OF CONTENTS 7 DIGITAL SELECTIVE CALLING ... 35 7.1 GENERAL ... 35 7.2 USCG DSC WATCH ... 35 7.2.1 Maritime Mobile Service Identity (MMSI) ... 35 7.2.2 Programming the MMSI ... 36 7.3 DSC SCAN ... 35 7.4 ADDITIONAL DIGITAL SELECTIVE CALLING INFORMATION ... 37 7.5 DSC DISTRESS CALL ...
  • Page 4: Safety/Warning Information

    PRODUCT SUPPORT INQUIRIES If you have any questions or comments regarding the use of the QUAN- TUM, you can visit the STANDARD HORIZON Web site to send an E- Mail or contact the Product Support team at 800-767-2450 M-F 7:00- 5:00PST.
  • Page 5: Fcc Radio License Information

    FCC RADIO LICENSE INFORMATION Standard Horizon radios comply with the Federal Communication Commission (FCC) requirements that regulate the Maritime Radio Service. STATION LICENSE An FCC ship station license is no longer required for any vessel traveling in U.S. waters (except Hawaii) which is under 20 meters in length. However, any...
  • Page 6: Fcc Notice

    Unauthorized changes or modifications to this equipment may void com- pliance with FCC Rules. Any change or modification must be approved in writing by STANDARD HORIZON. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 7: Getting Started

    GETTING STARTED ABOUT VHF RADIO The radio frequencies used in the VHF marine band lie between 156 and 158 MHz with some shore stations available between 161 and 163 MHz. The ma- rine VHF band provides communications over distances that are essentially “line of sight”...
  • Page 8: Coaxial Cable

    COAXIAL CABLE VHF antennas are connected to the transceiver by means of a coaxial cable – a shielded transmission line. Coaxial cable is specified by it’s diameter and construction. For runs less than 20 feet, RG-58/U, about 1/4 inch in diameter is a good choice. For runs over 20 feet but less than 50 feet, the larger RG-8X or RG-213/U should be used for cable runs over 50 feet RG-8X should be used.
  • Page 9: General Information

    1 GENERAL INFORMATION 1.1 INTRODUCTION The STANDARD HORIZON is a VHF/FM transceiver designed for use in the frequency range of 156.025 to 163.275 MHz. The can be operated from 11 to 16 VDC and has a switchable RF output power of 1 watt or 25 watts.
  • Page 10: Packing List

    2 PACKING LIST When the package containing the transceiver is first opened, please check it for the following contents: GX2360S QUANTUM Transceiver Mounting Bracket and attaching hardware Owner’s Manual Quick-Reference Card Power Cord 3 OPTIONS MMB-84 ... Flush-Mount Bracket CMP25B/W ... Remote-Access Microphone (RAM+ Mic, Black/White) CT-100 ...
  • Page 11: Installation

    4 INSTALLATION 4.1 LOCATION The radio can be mounted at any angle. Choose a mounting location that: • is far enough from any compass to avoid any deviation in compass read- ing due to the speaker magnet • provides accessibility to the front panel controls •...
  • Page 12: Accessory Cable

    2. Connect the red power wire to a 13.8 VDC ±20% power source. Connect the black power wire to a negative ground. 3. If an optional remote extension speaker is to be used, refer to section 3.3 for connections. 4. It is advisable to have a Certified Marine Technician check the power output and the standing wave ratio of the antenna after installation.
  • Page 13: Connection Of Gps With Nmea Output

    The NMEA supported sentences are: Input: GLL, GGA, RMC and GNS (RMC sentence is recommended) Output: DSC and DSE (DSC sentences to Standard Horizon Plotter for Position Polling) If you have further inquires, please feel free to contact Product Support at: Phone: (800) 767-2450 Email: marinetech@vxstdusa.com...
  • Page 14: Checking Gps Connections

    4.5 CHECKING GPS CONNECTIONS After connections have been made between the QUANTUM and the GPS, a small satellite icon will appear on the top right corner of the LCD display. To see additional GPS information press and hold the [ H/L ( NAV )] key until the QUANTUM shows the Date, Time, SOG and COG.
  • Page 15: Changing Cog To True Or Magnetic

    4.7 CHANGING COG TO TRUE OR MAGNETIC Allows customizing the NAV data showing GPS Course Over Ground (COG). Factory default is True however following the steps below the COG can be changed to Magnetic. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP”...
  • Page 16: Optional Mmb-84 Flush Mount Installation

    4.8 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION 1. Make a rectangular template for the flush mount measuring 2-27/32” H x 8-5/64” W (72 x 205 mm). 2. Use the template to mark the location where the rectangular hole is to be cut.
  • Page 17: Optional Enhanced Ram+ Second Station Mic Installation

    4.9 OPTIONAL ENHANCED RAM+ SECOND STATION MIC INSTALLATION The QUANTUM is capable of using up to 2 Enhanced RAM+ mics to remotely control the Radio, DSC and PA/Fog functions. In addition the QUANTUM can operate as a full function intercom system. With 2 RAM+ mics connected the QUANTUM or RAM+ mics can selective call each station individually or all at one time.
  • Page 18: Controls And Indicators

    5 CONTROLS AND INDICATORS This section defines each control of the transceiver. See Figure 4 for location of controls. For detailed operating instructions refer to chapter 6 of this manual. 5.1 CONTROLS AND CONNECTIONS POWER SWITCH/VOLUME CONTROL ( VOL/PWR ) Turns the transceiver on and off as well as adjusts the audio volume.
  • Page 19 16/9 VOL/PWR QUANTUM GX2360S SCAN DISTRESS MENU PULL OPEN CALL Figure 4. Controls and Connectors GX2360S Page 19...
  • Page 20 [ WX ] Key Immediately recalls the previously selected NOAA weather channel from any channel. Secondary use 1. Holding down the [ 16/9 ] key while pressing the [ WX ] key changes the mode from USA to International or Canadian. 2.
  • Page 21 [ MEM ] Key Memorizes the selected channel into the transceivers scan memory for scanning. When pressed again, it DELETES the channel from the scan memory. Secondary use Press and hold [ MEM ] key to lock out the front panel keys and CHAN- NEL selector knob.
  • Page 22 ACCESSORY CONNECTION CABLE Connects the QUANTUM to a GPS, a PA speaker, and an external speaker. See section 3 OPTIONS for a list of speakers STANDARD HORIZON offers. DC INPUT CABLE Connects the radio to a DC power supply capable of delivering 12V DC.
  • Page 23: Basic Operation

    6 BASIC OPERATION 6.1 PROHIBITED COMMUNICATIONS The FCC prohibits the following communications: • False distress or emergency messages: • Messages to “any boat” except in emergencies and radio tests; • Messages to or from a vessel on land; • Transmission while on land; •...
  • Page 24: Transmit Time-Out Timer (Tot)

    6.4 TRANSMIT TIME - OUT TIMER ( TOT ) When the PTT switch on the microphone is held down, transmit time is limited to 5 minutes. This limits unintentional transmissions due to a stuck microphone. About 10 seconds before automatic transmitter shutdown, a warning beep will be heard from the speaker(s).
  • Page 25: Noaa Weather Alert Testing

    1. Program NOAA weather channels into the transceiver’s memory for scan- ning. Follow the same procedure as for regular channels under section 6.15. 2. Press the [ SCAN ] key once to start memory scanning or hold down the [ SCAN ] key during memory scanning to start priority scanning. 3.
  • Page 26: Calling Another Vessel (Channel 16 Or 9)

    other distinguishing marks. The total transmission should not exceed 1 minute. 9. End the message by saying “OVER”. Release the microphone button and listen. 10. If there is no answer, repeat the above procedure. If there is still no re- sponse, try another channel.
  • Page 27: Making Telephone Calls

    6.12 MAKING TELEPHONE CALLS To make a radiotelephone call, use a channel designated for this purpose, The fastest way to learn which channels are used for radiotelephone traffic is to ask at a local marina. Channels available for such traffic are designated Public Correspondence channels on the channel charts in this manual.
  • Page 28: Memory Scanning (M-Scan)

    6.15 MEMORY SCANNING ( M-SCAN ) During scanning, the dot matrix area of the LCD will show “M-SCAN” or “P-SCAN” depending on the scan mode selected. 1. Adjust the SQL knob until background noise disappears. 2. Select a desired channel to be scanned using the CHANNEL selector knob.
  • Page 29: Channel A/B Preset Channels

    6.17 CHANNEL A /B PRESET CHANNELS Two calling channels (used by an organization or a favorite channel) can be preset. But USA channels 9 and 16, and WX channels should not be assigned as A or B channels because they are readily available with the [ 16/9 ] and [ WX ] keys.
  • Page 30: Pa/Fog Operation

    6.18 PA/FOG OPERATION PA/FOG mode allows the transceiver to be used as a 30W hailer when an optional STANDARD HORIZON 220SW or 240SW PA horn speaker is installed. When in Hail mode the PA speaker Listen’s Back (acts as a microphone and sends sound to the front panel speaker) through the PA horn speaker which provides two-way communications through the PA horn speaker.
  • Page 31: Keypad Locking

    1. Press the [ PA/FOG ] key, then select “FOG” with the CHANNEL selector knob. 2. Press the [ CALL/SET ( MENU )] key. 3. Turn the CHANNEL selector knob to select the func- tion. 4. Press the [ CALL/SET ( MENU )] key. 5.
  • Page 32: Intercom Operation

    6.21 INTERCOM OPERATION If the RAM+ Mic is connected to the QUANTUM, you may communicate be- tween the QUANTUM and RAM+ Mic, or RAM+ Mic and RAM+ Mic (See page 59 for Intercom Operation of the RAM+ Mic). RAM 1 RAM 2 M E M SCAN...
  • Page 33 6.22.1 Communication 1. Press and hold the [ DW ( IC )] key while in the “RA- DIO” mode, the mode is changed to “INTERCOM” mode. 2. If your QUANTUM is equipped two RAM+ Mic’s, se- lect the companion you wish to communicate (RAM1, RAM2, or ALL) with the CHANNEL selector knob, then press the [ CALL/SET ( MENU )] key.
  • Page 34: Voice Scrambler

    6.22 VOICE SCRAMBLER If privacy of communications is desired, a CVS2500 voice scrambler (VS) can be installed in the transceiver. Contact your Dealer to have a CVS2500 installed. Refer to the section 8.6 VOICE SCRAMBLER to program the voice scrambler. 1.
  • Page 35: Digital Selective Calling

    7 DIGITAL SELECTIVE CALLING 7.1 GENERAL This radio is designed to generate a digital maritime distress and safety call to facilitate search and rescue. To be effective as a safety device, this equipment must be used only within communication range of a shore- based VHF marine channel 70 distress and safety watch system.
  • Page 36: Programming The Mmsi

    TORY SERVICE. Allowing a user to program the MMSI only two times is a FCC requirement that STANDARD HORIZON has to follow. 1. Press and hold down the [ CALL/SET ( MENU )] key until the “RADIO SETUP” menu appears.
  • Page 37: Additional Digital Selective Calling Information

    3. Press the [ CALL/SET ( MENU )] key, then select “DSC SCAN” with the CHANNEL selector knob. 4. Press the [ CALL/SET ( MENU )] key. 5. Turn the CHANNEL selector knob to select “ON”or “OFF.” 6. Press the [ CALL/SET ( MENU )] key to store the se- lected setting.
  • Page 38: Receiving A Dsc Distress Call

    5. If an acknowledgement is received, select channel 16 and advise your distress situation. 6. If no acknowledgment is received, the distress call is repeated in 4 minute intervals until an acknowl- edgment is received. 7. When a DSC Distress acknowledgment is received, a distress alarm sounds and channel 16 is automati- cally selected.
  • Page 39: All Ships Call

    7.6 ALL SHIPS CALL The All Ships Call function allows contact to be established with other vessel stations without having their ID in the individual calling directory. Also, priority for the call can be designated as Urgency or Safety. URGENCY Call: This type of call is used when a vessel may not truly be in distress, but have a potential problem that may lead to a dis- tress situation.
  • Page 40: Receiving An All Ships Call

    7.6.2 Receiving an All Ships Call 1. When an all ships call is received, an emergency alarm sounds. The radio will automatically change to channel 16. 2. Press any key to stop the alarm. 3. Turn the CHANNEL selector knob to see the MMSI of the vessel transmitting the All Ships Call.
  • Page 41: Setting Up Individual Reply

    [ CALL/SET ( MENU )] key to move to the next space. This method can also be used to enter a blank space in the name. To clear the previous letter, press the [ H/L ( NAV )] key. 9. After the eleventh letter or space has been entered, press the [ CALL/ SET ( MENU )] key to advance to the MMSI (Maritime Mobile Service Iden- tity Number) number entry.
  • Page 42: Setting Up Individual Call Ringer

    lected setting. 7. To exit this menu and return to radio operation mode press the [ 16/9 ] key. 7.7.3 Setting up Individual Call Ringer When a Individual call is received the radio will produce a ringing tone for 3 minutes.
  • Page 43: Receiving An Individual Call

    will transmit again. 7. After the second INDIVIDUAL CALL is transmitted, if the reply signal is not received, the dot matrix area of the LCD will display “ SEND” to prompt the user to send the call again or exit the mode. 8.
  • Page 44: Advanced Dsc Calls

    1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP” menu appears. 2. Turn the CHANNEL selector knob to select “DSC SETUP” menu. 3. Press the [ CALL/SET ( MENU )] key, then select “INDIV ACK” with the CHANNEL selector knob. 4.
  • Page 45: 2Transmitting A Group Call

    reference in the directory. 7. Press the [ CALL/SET ( MENU )] key to store the first letter in the name. 8. Repeat step 6 and 7 until the name is complete. The name can consist of up to eleven characters, if you do not use all eleven characters press the [ CALL/SET ( MENU )] key to move to the next space.
  • Page 46: 3Receiving A Group Call

    QUANTUM. Standard Horizon has taken this feature one step further, if any Standard Hori- zon GPS is connected to the QUANTUM, the polled position of the vessel is shown on the display of the GPS chart plotter making it easy to navigate to the location of the polled vessel.
  • Page 47: 1Setting Up Position Reply

    7.8.2.1 Setting up Position Reply The QUANTUM can be set up to automatically or manually send your position to another vessel. This selection is important if you are concerned about some- one polling the position of your vessel that you may not want to. In the manual mode you will see the MMSI or persons name shown on the display allowing you to choose to send your position to the requesting vessel.
  • Page 48: 3Receiving A Position Request

    6. After a DSC position request is transmitted, the trans- ceiver remains on channel 70 until position data is received from the polled vessel. 7. When the QUANTUM receives the position from the polled vessel it is shown on the radio display and also transferred to the GPS Chart plotter.
  • Page 49: Position Send

    2. Press the [ 16/9 ] key to stop ringing 3. The position from the vessel sending it's position will be shown on the dis- play of the radio and also transferred to any Standard Horizon GPS Chart plotter if connected.
  • Page 50: Radio Setup Mode

    8 RADIO SETUP The optional RAM+ MIC CMP25 can also change the SETUP menu. Refer to page 60 for details. 8.1 LAMP ADJUSTING Allows setting up the backlight intensity or to turn it off. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP”...
  • Page 51: Time Offset

    8.3 TIME OFFSET Sets the time offset between local time and UTC (time GPS sends to radio). Time is displayed when GPS position (LAT/LON) is displayed by pressing the [ H/L ( NAV )] key. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP”...
  • Page 52: Key Beep (On / Off)

    8.4 KEY BEEP ( ON/OFF ) This selection allows the beep tone when a key is pressed to be turned off. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP” menu appears. 2. Press the [ CALL/SET ( MENU )] key, then select “KEY BEEP”...
  • Page 53: Voice Scrambler

    8.6 VOICE SCRAMBLER (Operates only when the optional CVS2500 is installed) This menu is used to setup the channels to be scrambled and the scrambler code. This menu will not appear unless a CVS2500 is installed. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP”...
  • Page 54: Channel Naming

    8.7 CHANNEL NAMING This selection allows you to customize the name of a channel from the default name. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP” menu appears. 2. Press the [ CALL/SET ( MENU )] key, then select “CH NAME”...
  • Page 55: True Magnetic Change (Nav Display)

    8.8 TRUE MAGNETIC CHANGE ( NAV display ) Allows customizing the GPS COG (Course Over Ground) displayed on the LCD to be in True or Magnetic. 1. Press and hold down the [ CALL/SET ( MENU )] key until “RADIO SETUP” menu appear. 2.
  • Page 56: Enhanced Ram+ Mic Opertion

    9 ENHANCED RAM+ MIC OPERATION When the RAM+ microphone is connected to the QUANTUM, most VHF, DSC, setup menus and PA modes can be remotely operated. The RAM+ Mic sup- plied with 23 feet (7 m) of routing cable and can be extended up to 70 feet (21 m) using three 23 feet extension cables model CT-100.
  • Page 57 POWER SWITCH ( PWR ) Press and hold down this key to turn to the transceiver and RAM+ Mic on and off. PTT ( Push-To-Talk ) SWITCH Activates transmission. [ H/L ] KEY Toggles between high and low power. When the [ H/L ] key is pressed while the transceiver is on channel 13 or 67, the power will temporarily switch from LO to HI power until the PTT is released.
  • Page 58 Watches for a transmission on CH16 and another selected channel until either signal is received. (Dual watch) NOTE: When the DSC SCANNING feature is enabled (see section 7.3 DSC SCAN), the radio watches for a transmission on CH16, another selected channel, and CH70 until either signal is received (Triple watch). Secondary use Press and hold [ DW ] key, intercom operation will operate between radio and RAM Mic.
  • Page 59: Intercom Opertion

    and advise your distress situation. 6. If no acknowledgment is received, the distress call is repeated in 4 minute intervals until an acknowledgment is received. 7. When a DSC Distress acknowledgment is received, a distress alarm sounds and channel 16 is automatically selected. The LCD shows the MMSI of the ship responding to your distress.
  • Page 60: Dsc/Radio Setup Mode

    9.3 DSC/RADIO SETUP MODE The RAM+ can access the DSC / RADIO setup menu (refer to section 7 “DSC/ RADIO SETUP” for details). However, the LAMP, CONTRAST, and KEY BEEP menu item which is accessed from the RAM+ only controls the RAM+’s display and speaker.
  • Page 61: Maintenance

    Ensure that the supply voltage to the transceiver does not exceed 16 VDC or fall below 11 VDC. • Use only STANDARD HORIZON-approved accessories and replacement parts. In the unlikely event of serious problems, please contact your Dealer or our repair facility.
  • Page 62: Factory Service

    10.2 FACTORY SERVICE In the unlikely event that the radio fails to perform or needs servicing, please contact the following: Standard Horizon Attention Marine Repair Department 10900 Walker Street Cypress, CA 90630 Telephone (800) 366-4566 An “RA” Return Authorization number is not necessary to send a product in for service.
  • Page 63: Troubleshooting Chart

    10.3 TROUBLESHOOTING CHART SYMPTON PROBABLE CAUSE Transceiver fails to No DC voltage to the power up. transceiver, or blown fuse. Transceiver blows fuse R e v e r s e d p o w e r when connected to wires. power supply.
  • Page 64: Channel Assignments

    11. CHANNEL ASSIGNMENTS Tables on the following columns list the VHF Marine Channel assignments for U.S.A. and International use. Below are listed some data about the charts. 1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s Vessel Traffic System.
  • Page 65 6. Marine vessels equipped with VHF radios are required to monitor Channel 16. D 156.050 160.650 Public Correspondence (Marine Operator) D 156.100 160.700 Public Correspondence (Marine Operator) D 156.150 160.750 Public Correspondence (Marine Operator) D 156.200 160.800 Public Correspondence (Marine Operator), D 156.250 160.850 Public Correspondence (Marine Operator), D 156.350 160.950 Public Correspondence (Marine Operator), D 156.900 161.500 Port operation, ship movement...
  • Page 66 D 157.150 161.750 Public Correspondence (Marine Operator) D 157.200 161.800 Public Correspondence (Marine Operator) D 157.250 161.850 Public Correspondence (Marine Operator) D 157.300 161.900 Public Correspondence (Marine Operator) D 157.350 161.950 Public Correspondence (Marine Operator) D 157.400 162.000 Public Correspondence (Marine Operator) D 156.025 160.625 Public Correspondence (Marine Operator) D 156.075 160.675 Public Correspondence (Marine Operator), D 156.125 160.725 Public Correspondence (Marine Operator),...
  • Page 67 D 156.925 161.525 Public Correspondence (Marine Operator), D 156.975 161.575 Port operation and Ship movement D 157.025 161.625 Port operation, ship movement D 157.075 161.675 Port operation, ship movement D 157.125 161.725 Public Correspondence (Marine Operator), D 157.175 161.775 Canadian Coast Guard Only D 157.175 161.775 Public Correspondence (Marine Operator) D 157.225 161.825 Public Correspondence (Marine Operator) D 157.275 161.875 Public Correspondence (Marine Operator)
  • Page 68 Carrier frequency Channel designator Coast Ship transmit transmit Port Operations 156.050 156.050 156.175 156.175 156.250 156.250 156.275 156.275 156.325 156.325 156.600 156.600 156.675 156.675 156.700 156.700 156.725 156.725 156.875 157.000 Navigational (Bridge-to-Bridge) 156.650 156.650 156.375 156.375 Commercial 156.050 156.050 156.175 156.175 156.350 156.350 156.375 156.400...
  • Page 69 4: Use of 156.875 MHz is limited to communications with pilots regarding the movement and docking of ships. Normal output power must not exceed 1 watt. 5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational commu- nications. These frequencies are available between coast and ship on a secondary basis when used on or in the vicinity of locks or drawbridges.
  • Page 70: Warranty

    In the event of a defect, malfunction or failure of the Product during the war- ranty period, STANDARD HORIZON’s liability for any breach of contract or any breach of express or implied warranties in connection with the sale of Products...
  • Page 71 This warranty only extends to Products sold within the 50 States of the United States of America and the District of Columbia. STANDARD HORIZON will pay all labor to repair the product and replacement parts charges incurred in providing the warranty service except where purchaser abuse or other qualifying exceptions exist.
  • Page 72 Product Support Inquiries If you have any questions or comments regarding the use of the QUAN- TUM, you can visit the STANDARD HORIZON Web site to send an E- Mail or contact the Product Support team at (714) 827-7600 ext 6300 M- F 7:00-5:00PST.
  • Page 73: Specifications

    13 SPECIFICATIONS Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. 13.1 GENERAL Channels ... All USA, International and Canadian Input Voltage ... 13.8 VDC ±20% Current Drain Standby ... 0.5 A Receive ... 1.5 A Transmit ...
  • Page 74 MEMO Page 74 GX2360S...
  • Page 75 MEMO GX2360S Page 75...
